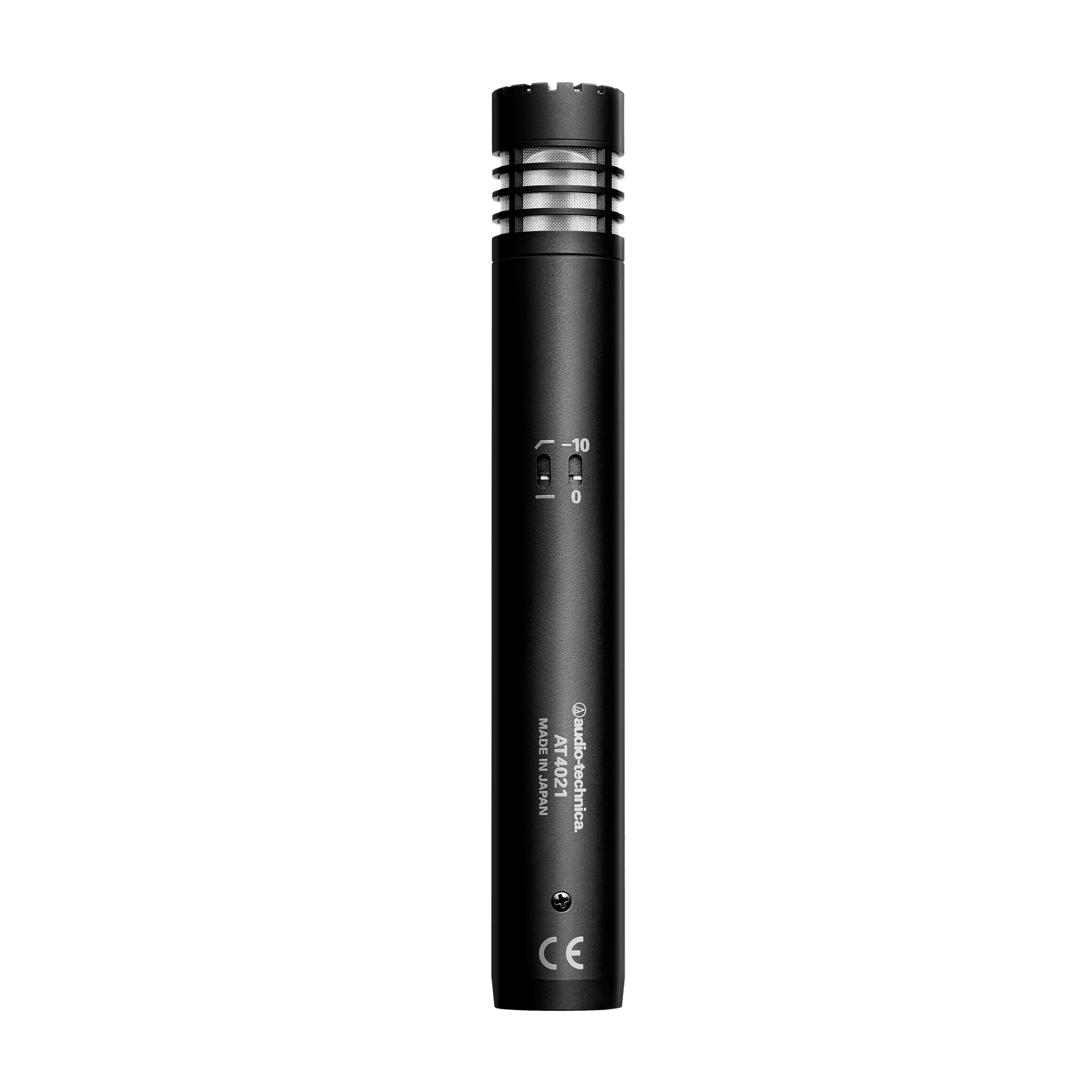

Ideal for critical studio and live applications, the low-profile AT4021 offers a flat, extended frequency response, high maximum SPL and wide dynamic range. Its low self-noise is perfectly suited for the most sophisticated recording equipment. Its low-mass diaphragm improves transient response, increases response bandwidth and reduces handling and mechanical noise transfer. The microphone offers outstanding reproduction of low-frequency sounds.
Features
- Outstanding performance and rugged construction
- High SPL handling and wide dynamic range
- Flat, extended frequency response
- Switchable 80 Hz hi-pass filter and 10 dB pad
- High front-to-back rejection ratio—cardioid polar pattern improves isolation of desired sound source
- Low self noise perfectly suited for digital recording equipment
- Exceptional reproduction of low frequency sounds
- Low-mass element for superb transient response
Specifications
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 20 – 20.000 Hz
- Low Frequency Roll Off: 80 Hz, 18 dB/octave
- Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
- Maximum Input Sound Level: 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal)
- Dynamic Range: 132 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 80 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 48V DC, 3.0 mA typical
- Weight: 119g
- Dimensions: 144.0 mm (5.67″) long, 21.0 mm (0.83″) maximum body diameter
- Output Connector: Integral 3-pin XLRM-type
- Accessories Included: AT8405a stand clamp for 5/8″-27 threaded stands; windscreen; protective carrying case
