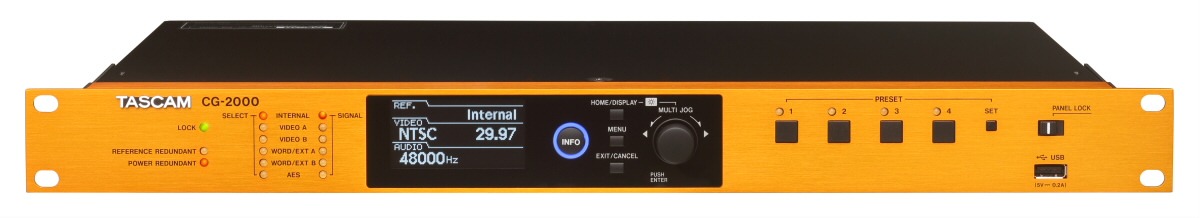

The CG Series master clock generators are based on a high-precision crystal oscillator with jitter management and glitch-free relocking for ultra-high clock precision. The CG-2000 is designed for the needs of broadcasting and post production, the CG-1800 for small to large-scale video/audio synchronization systems, and the CG-1000 for recording studios, live sound applications and professional musicians.
Features
- Two power supply circuits for redundancy
- Supports video reference/word clock redundancy
- Internal clock uses a high-precision OCXO (oven-controlled crystal oscillator) that is not influenced by the temperature of the environment
- Jitter management circuit provides stable clock
- Glitch-free relocking circuit prevents noise and skipping during clock dropouts and recovery
Specifications
- VIDEO INPUT: BNC connector
- Input level: 0.5–2.0 Vp-p
- Input impedance: 75 Ω (can turn ON/OFF in menu)
- Input format:
SD video black burst: NTSC (RS-170A), PAL (ITU-R624)
SD video composite sync: NTSC B/W (RS-170)
HD video tri-level:
720p/50/59.94/60 (SMPTE 296M)
1080p/23.976/24/25/29.97/30/50/59.94/60 (SMPTE 274M)
1080i/23.976/24/25/29.97/30 (SMPTE 274M)
1080PsF/23.976/24/25/29.97/30 (SMPTE RP211) - Permitted frequency deviation: ±10 ppm
- WORD/EXT INPUTS: BNC connector
- Input level: 0.5–5.0 Vp-p
- Input impedance: 75/50 Ω (can set to 75/50/OFF in menu)
- Supported frequencies
WORD CLOCK: 32/44.1/48/88.2/96/176.4/192 kHz
(−4/−0.1/0.0/+0.1/+4% PULL UP/DOWN supported only when 48/96/192 kHz selected)
ATOM: 10.0 MHz
GPS: 10.0 MHz - Permitted frequency deviation: ±10 ppm
- AES3/11 INPUT: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
- Input level: 0.2–10 Vp-p
- Input impedance: 110 Ω
- Format: AES11-2003, AES3-2003, IEC60958-4
- Supported frequencies
32/44.1/48/88.2/96/176.4/192 kHz
(−4/−0.1/0.0/+0.1/+4% PULL UP/DOWN supported only when 48/96/192 kHz selected) - Permitted frequency deviation: ±10 ppm
- CALIBRATION INPUT: BNC connector
Input level: 0.5–5.0 Vp-p - Input impedance: 50 Ω (can turn ON/OFF in menu)
- Supported frequencies
ATOM: 10.0 MHz
GPS: 10.0 MHz, PPS
