- Triangle core (superior for musical fm sounds)
- VCO mode range: 1 Hz to 24 kHz
- LFO mode range: 0.01 Hz (100 seconds) to 240 Hz
- Precise tracking within 0.1% over 8 octaves
- 6 waveforms, including: triangle, sine, sawtooth, pulse (with PWM), square (50% duty cycle), and a unique “zigzag” waveform.
- Reversing sync (which can be made into soft sync with an external VCA or attenuator)
- Jumper on PCB to select center- or edge-triggered PWM

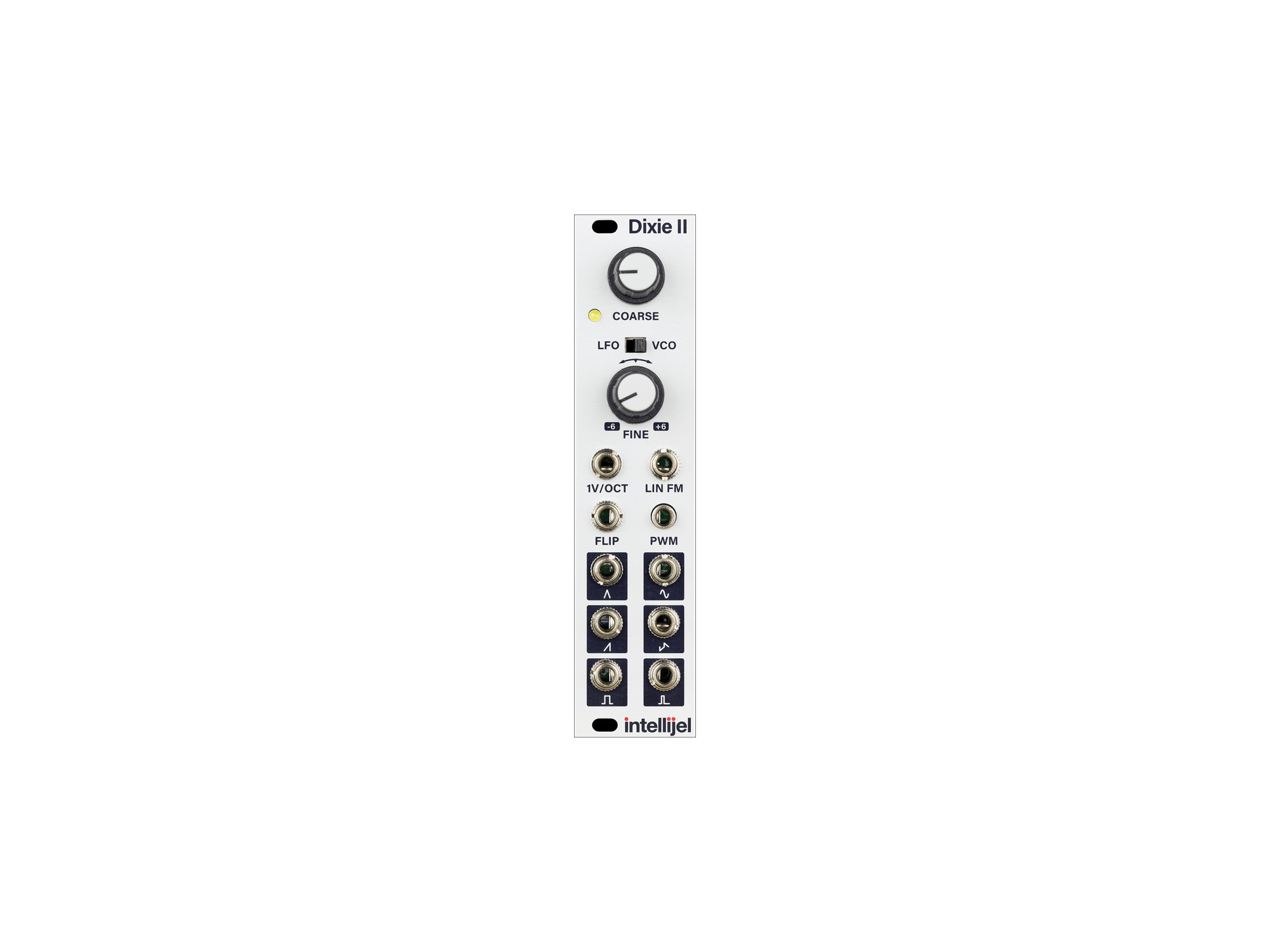

More Info: Dixie 2
