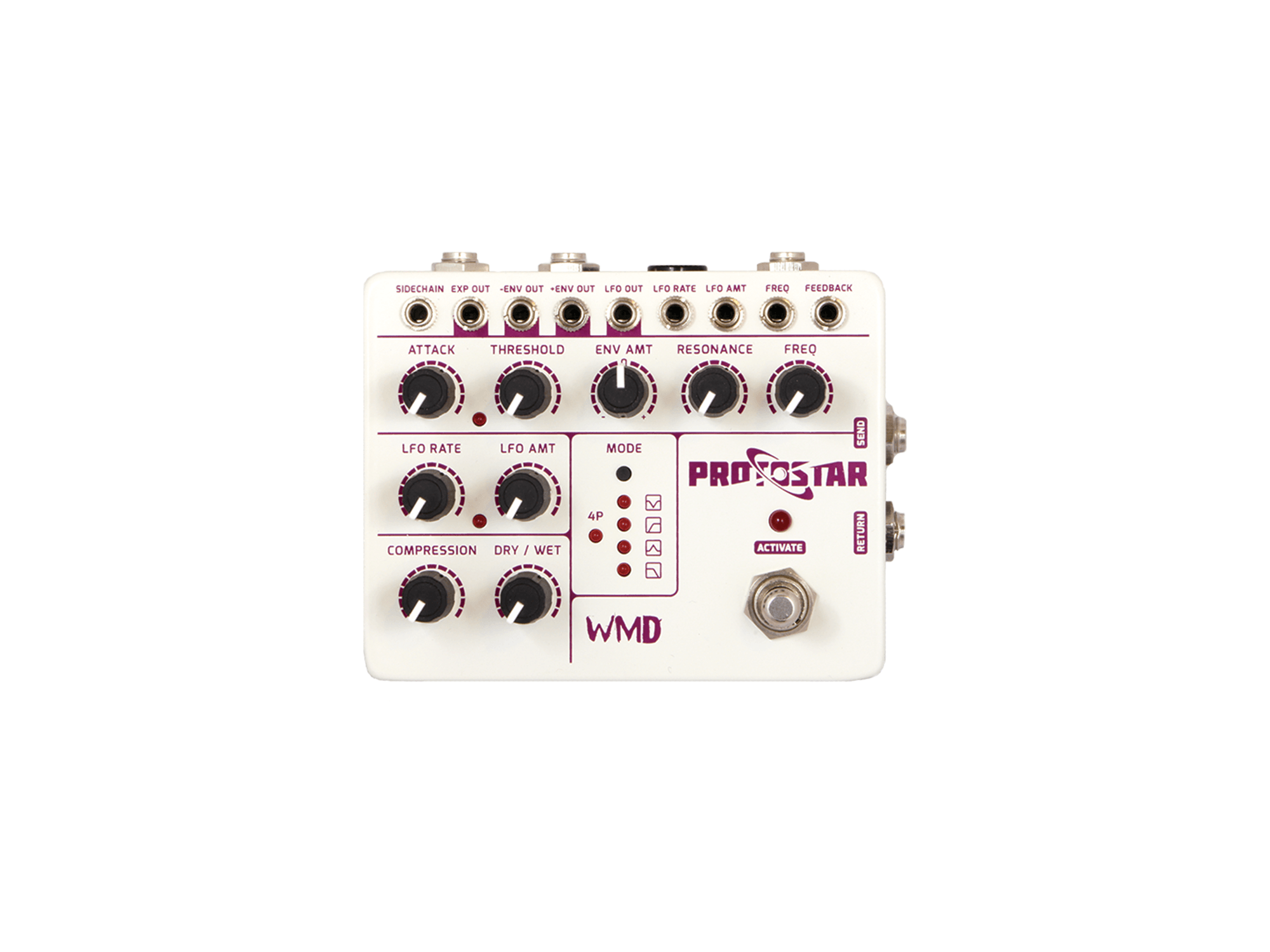

The Protostar is the evolution of the Super FatMan envelope filter with even more pro level features. Built in LFO, 4 filter modes, full CV patch bay, and expression/CB input, this is the most powerful/versatile envelope filter on the planet. Also includes an end of chain compressor and dry wet mix for parallel filtering/compression effects!
- Power: 9VDC, Boss Style Center Negative, 400mA. 1A supply reccomended. Do not exceed 9V.
- 1A supply recommended.
- Internal Bipolar 12V power supply.
- 0-5V nominal CV range. All inputs/outputs protected.
- LFO CV sensitivity and Compressor Gain adjustable internally.
- Relay true Bypass.
- Expression Pedal: 10k – 1M pot. TRS connection.
- Patch Points – Mono or Stereo cable. Signals are mono.
- Dimensions: 4.9″ x 3.9″ x 2.4″
More Info: WMD Protostar
