- Gate/Trigger Outputs of Each Route
- Gates Mirror Routing LEDs
- Triggers Occur on Steps
- Step Output For CV and Step/Reset
- Retrigger Gates on Step Optional
- Gate/Trig Behavior Invertable
- CV and Knob for Trigger Length
- Four Bit DAC Outputs for Outs 3/4
- Skiffable PCB Design
- Power: +12V = 40mA; -12V = 3mA
- Voltage Levels: Input range +-10V. Output range +-10V. Step/Gate and Reset sense signals at 0.8V.
- Operating Frequency: Max transition frequency is 26kHz. Pushing buttons at high clock speeds will slow the response as the buttons are debounced.
- Compare Input: +-10V. Normaled to 0.5V.
- Compliance: The SSM and Expand are RoHS and CE compliant.
- Size: 8HP
- Depth: 25mm with connectors
- Every WMD product is warranted for 12 months after purchase, but please contact us if you ever have problems. We will take care of you.

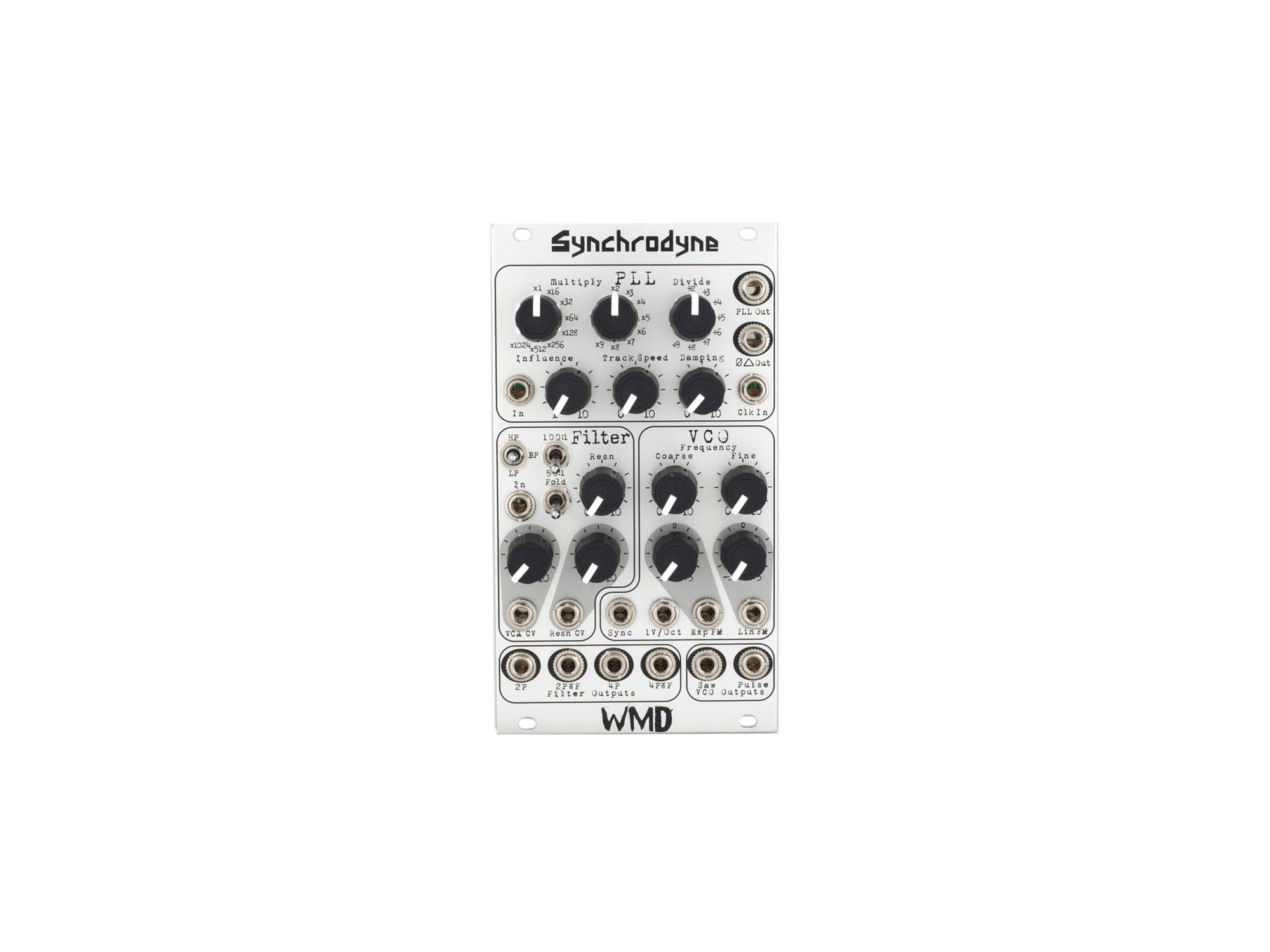

More Info: WMD Synchrodyne Expand
