Description

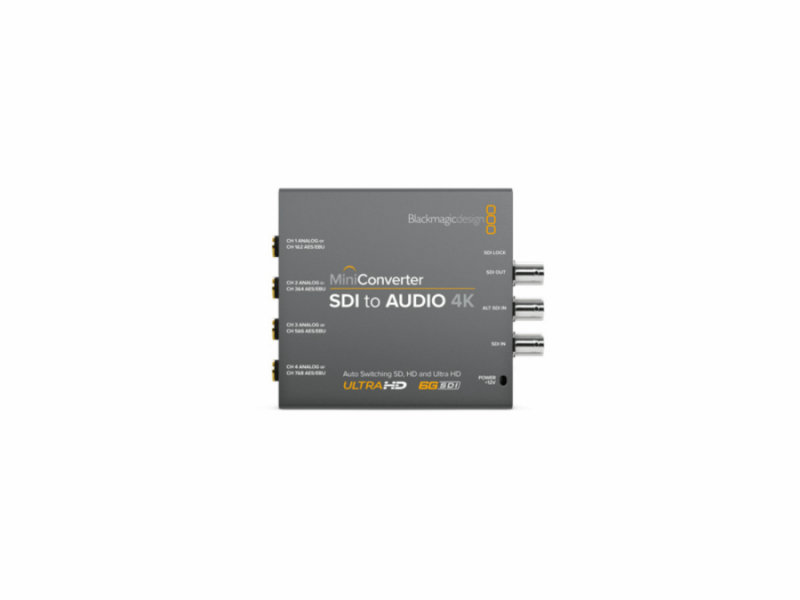

Mini Converter SDI to Audio 4K includes everything you need to de‑embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!
Connections
SDI Video Inputs
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
SDI Video Outputs
1 x SDI Video Loop Output.
SDI Redundant Inputs
Automatically switches over if main SDI input is lost.
Analog Audio Outputs
4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital Audio Outputs
8 channels of professional balanced digital with standard 1/4 inch jack connections.
Multi Rate Support
Auto detection SD, HD or 6G‑SDI.
Updates and Configuration
USB
Reclocking
Yes
Physical Specifications
