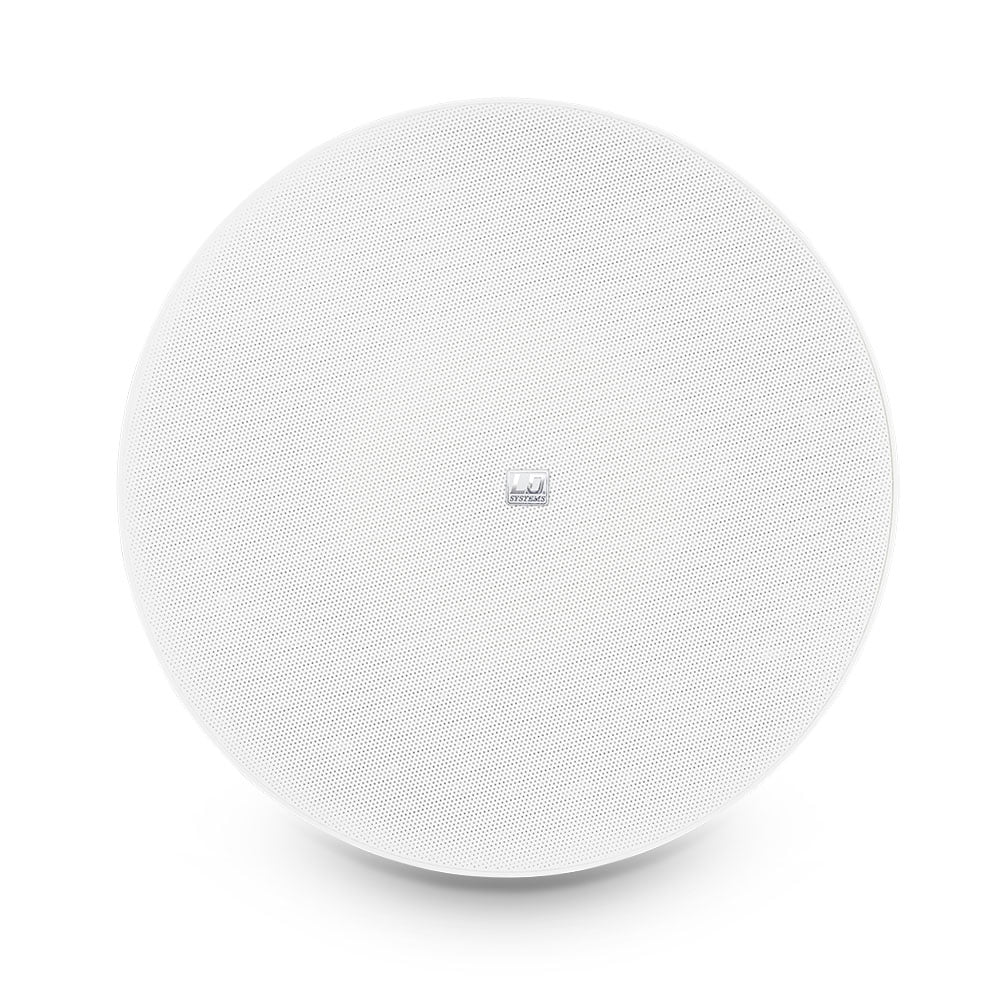

The Contractor CFL 62 is an frameless in-wall speaker for unobtrusive installation in walls. The almost flush front grille with magnetic mount covers a 6.5″ woofer and 1.2″ tweeter that feature a clear sound and high speech intelligibility. Its frequency response extends to 20 kHz; the sound pressure level is 88 dB at 1 W /1 m, with a power capacity of 60 watts of continuous power. Secure swivels enable fast and easy assembly of the CFL 62. The in-wall speaker is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, shopping centres and even at home.
For ELA systems, the CFL 62 is available as a 100 Volt version (CFL 62 100 V) with three taps for 6, 12, and 24 watts.
| Product type | Installation Loudspeakers |
| Type | Ceiling-mounted Loudspeaker |
| Version | Wall installation speaker |
| Speaker type | 2-way speaker |
| Color | Black, white grille |
| Woofer dimensions | 6.5 “ |
| Woofer size | 165 mm |
| Tweeter dimensions | 1.2 “ |
| Tweeter dimensions (mm) | 30 mm |
| Cut-out measurement | 210 mm |
| Mounting depth | 81 mm |
| Min. Material Thickness | 3 mm |
| Max. Material Thickness | 15 mm |
| Impedance (low-impedance) | 8 Ohm(s) |
| Frequency response | 70 – 20000 Hz |
| Sensitivity (1 W / 1 m) | 88 dB |
| Low-impedance rated load (RMS) | 60 W |
| Depth | 86 mm |
| Diameter | 234 mm |
| Weight | 1,56 kg |
