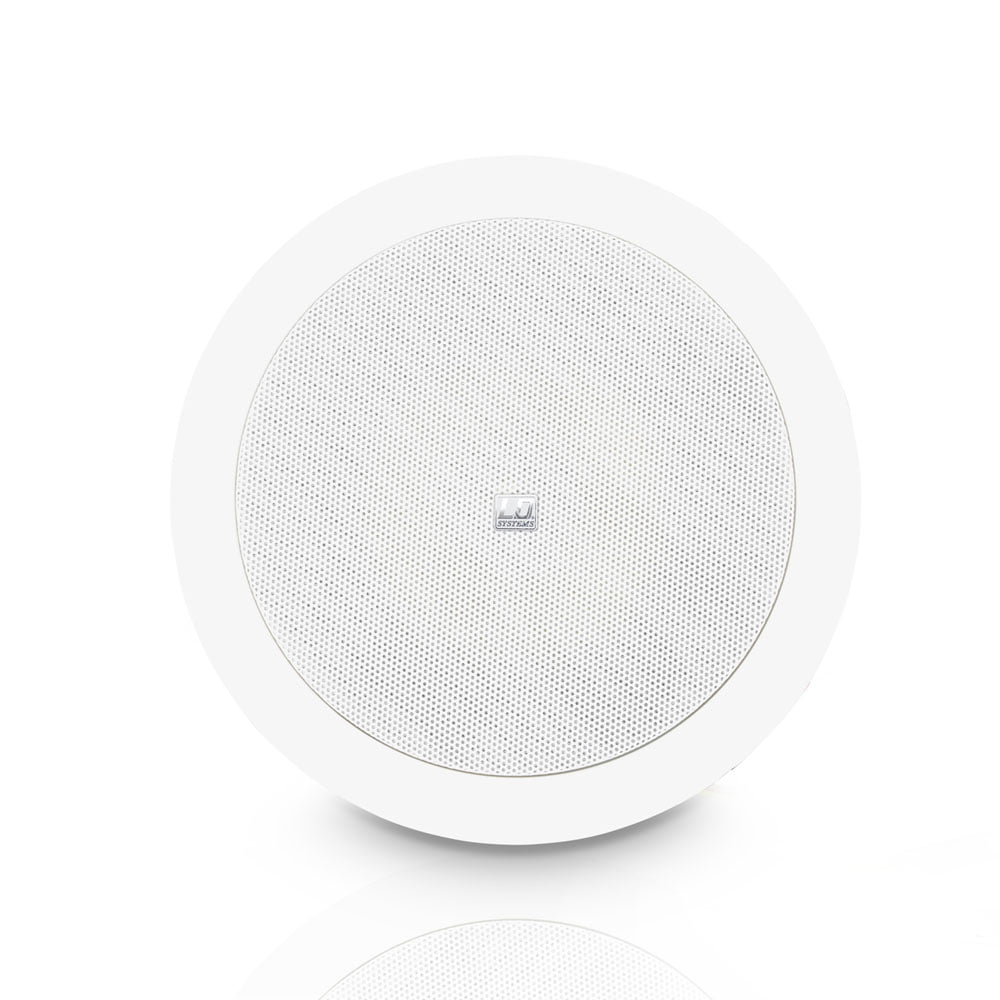

The Contractor CICS 52 is a round in-wall speaker for installation in ceilings, that delivers a powerful sound and an appealing look. It is equipped with a 5.25″ woofer and coaxial arranged 1.2″ tweeter that feature a frequency response up to 20 kHz and high speech intelligibility. The CICS 52 reaches a sound pressure level of 88 dB at 1 W / 1 m and has a power capacity of 40 watts of continuous power. It features a secure mounting system with swivels for easy and fast installation. The ceiling speaker is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, or shopping centres.
For ELA systems, the CICS 52 is available as a 100 Volt version (CICS 52 100 V) with three taps for 6, 12, and 24 watts.
| Product type | Installation Loudspeakers |
| Type | Ceiling-mounted Loudspeaker |
| Version | Wall and ceiling installation speaker |
| Speaker type | 2-way speaker |
| Color | white |
| Woofer dimensions | 5.25 “ |
| Woofer size | 133 mm |
| Tweeter dimensions | 1.2 “ |
| Tweeter dimensions (mm) | 30 mm |
| Cut-out measurement | 170 mm |
| Mounting depth | 83 mm |
| Min. Material Thickness | 2.5 mm |
| Max. Material Thickness | 31 mm |
| Impedance (low-impedance) | 8 Ohm(s) |
| 100 V Inputs | 12 W, 24 W, 6 W |
| Frequency response | 80 – 20000 Hz |
| Sensitivity (1 W / 1 m) | 88 dB |
| Low-impedance rated load (RMS) | 40 W |
| Depth | 92 mm |
| Diameter | 202 mm |
| Weight | 1,31 kg |
