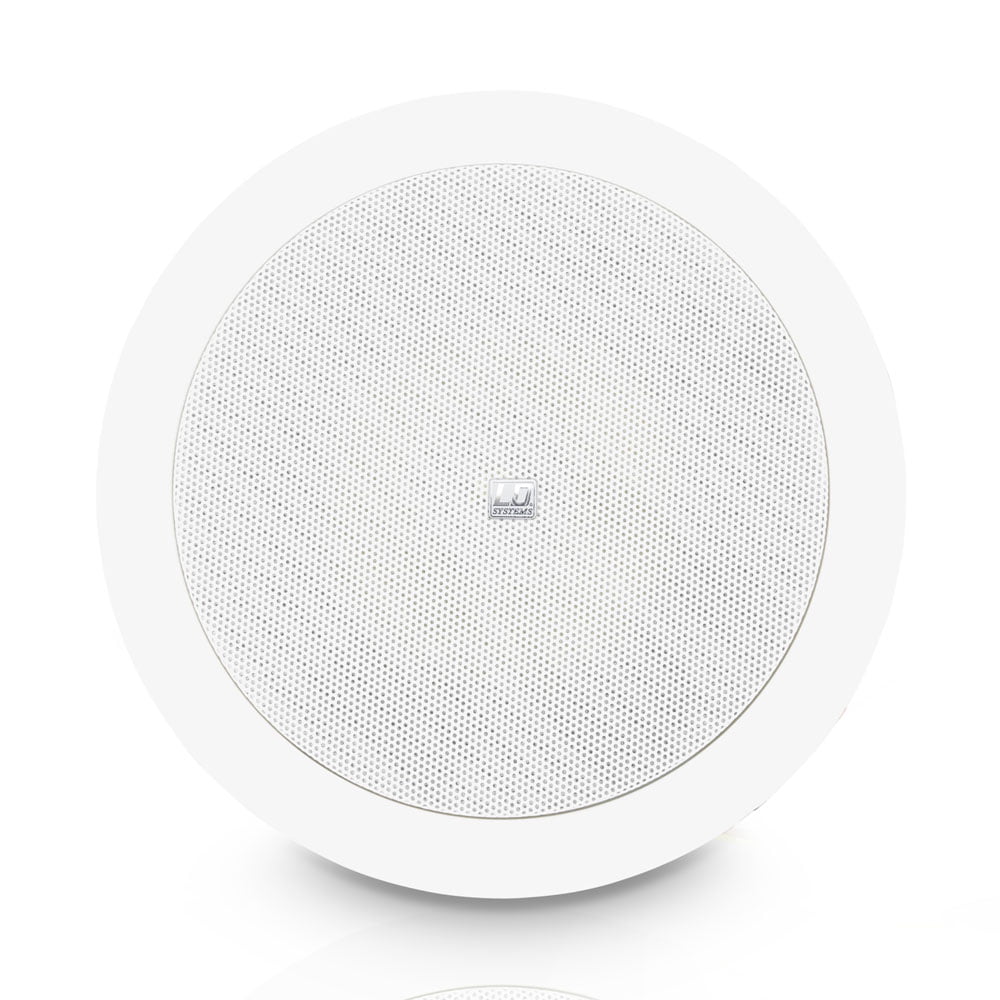

The Contractor CICS 62 is a round in-wall speaker with an appealing look for installation in ceilings. A 6.5″ woofer and 1.2″ tweeter in coaxial arrangement ensure a frequency response up to 20 kHz, balanced sound and excellent speech intelligibility. The CICS 62 achieves a sound pressure level of 88 dB at 1 W / 1 m with a power capacity of 60 watts of continuous power. Secure swivels enable fast and easy assembly. The ceiling speaker is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, shopping centres and even at home.
For ELA systems, the CICS 62 is available as a 100 Volt version (CICS 62 100 V) with three taps for 6, 12, and 24 watts.
| Product type | Installation Loudspeakers |
| Type | Ceiling-mounted Loudspeaker |
| Version | Wall and ceiling installation speaker |
| Speaker type | 2-way speaker |
| Color | white |
| Woofer dimensions | 6.5 “ |
| Woofer size | 165 mm |
| Tweeter dimensions | 1.2 “ |
| Tweeter dimensions (mm) | 1.2 mm |
| Cut-out measurement | 202 mm |
| Mounting depth | 87 mm |
| Min. Material Thickness | 3 mm |
| Max. Material Thickness | 30 mm |
| Impedance (low-impedance) | 8 Ohm(s) |
| Frequency response | 70 – 20000 Hz |
| Sensitivity (1 W / 1 m) | 88 dB |
| Low-impedance rated load (RMS) | 60 W |
| Depth | 97 mm |
| Diameter | 233 mm |
| Weight | 1,49 kg |
