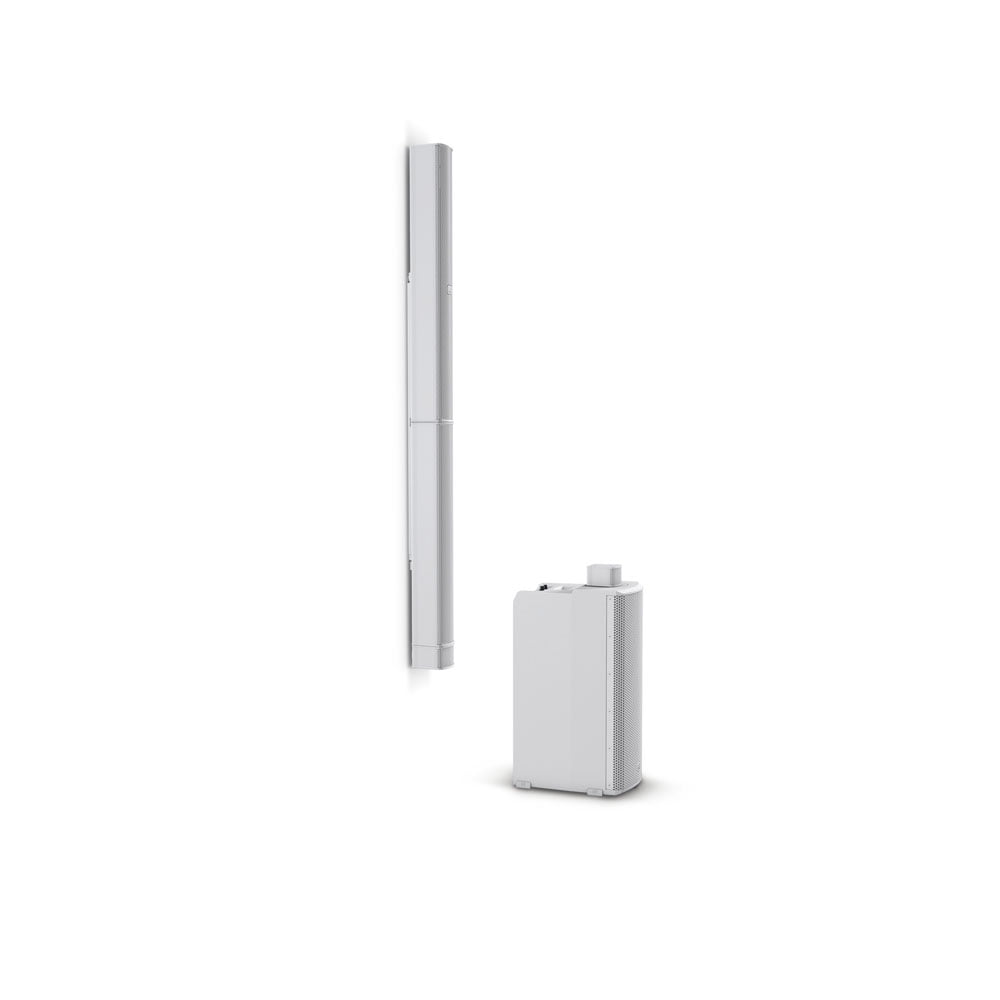

Streamlining MAUI installations is a breeze with this low-profile wall mount kit. It contains a wall plate and slim hook-in bracket that holds the column. They require an installation height of 15 mm only putting the column nearly flush to the wall. The plate and bracket are made of heavy-gauge steel and available in black (LDMG2IK1) or white (LDMG2IK1W) powder coating finish. The kit also includes two adapters for the system’s multipin connectors which provide loudspeaker and terminal block connectors to hook up the column and sub.
| Product type | PA Loudspeakers Accessories |
| Type | Wall bracket |
| Weight | 2,7 kg |
| Material Wall Mount Bracket | Steel |
| Surface Wall Mount Bracket | Powder coated |
| Colour Wall Mount Bracket | white |
| Mar. Load Wall Mount Bracket | 12 kg |
| Dimensions Wall Mount Bracket (W x H x D) | 75mm x 810mm x 15mm |
| Weight Wall Mount Bracket | 1.5 kg |
| Features Column Adapter | M20 Thread, Speakon compatible, Terminal Block Connector |
| Material Column Adapter | Aluminum |
| Surface Column Adapter | Powder coated |
| Colour Column Adapter | white |
| Dimensions Column Adapter (B x H x T) | 100mm x 65mm x 105mm |
| Weight Column Adapter | 0.7 kg |
| Features Subwoofer Adapter | Speakon compatible, Terminal Block Connector |
| Material Subwooferadapter | Aluminum |
| Subface Subwoofer Adapter | Powder coated |
| Colour Subwoofer Adapter | white |
| Dimensions Subwoofer Adapter (W x H x D) | 100mm x 105mm x 105mm |
| Weight Subwoofer Adapter | 0.5 kg |
| Colour Terminal Block Connector | green |
| Features Terminal Block Connector | 4 pole |
| Quantity Terminal Block Connector | 2 pcs. |
