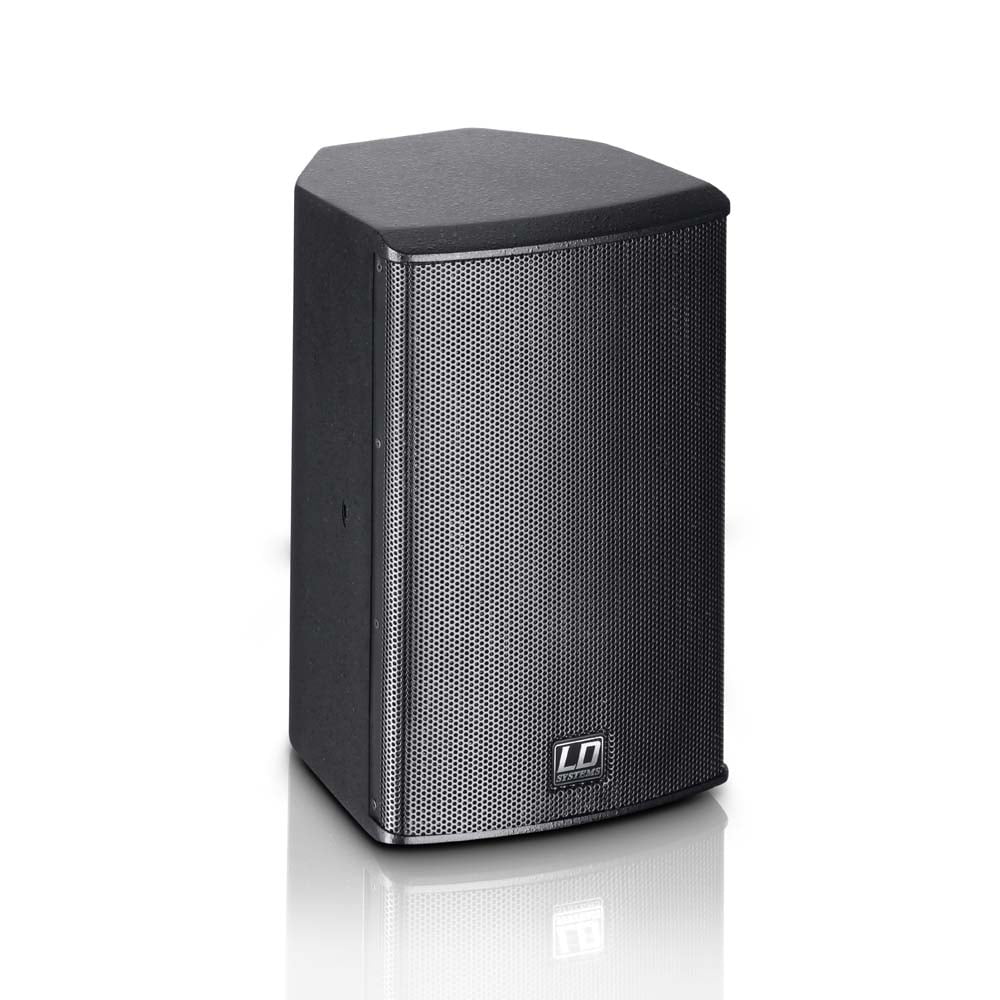

The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.
The bass-reflex design is loaded with a 6.5″ custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz – 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.
The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.
|Product type||Installation Loudspeakers|
|Low/mid driver dimensions||6.5 “|
|Woofer size||165 mm|
|HF driver dimensions||1 “|
|HF Driver Size||25 mm|
|HF driver magnet||Ferrite|
|HF driver brand||Custom-made|
|Power amplifier (Class A)||Class A/B|
|Dispersion (H x V)||60 x 60 °|
|Frequency response||55 – 20000 Hz|
|Max. SPL||108 dB|
|Protection circuits||HF Driver, over voltage|
|Controls||mains switch (on/off), switchable auto power mode, volume control|
|Line input connectors||6.3 mm jack, XLR|
|Line output connectors||XLR|
|Operating voltage||transformer, 220 V AC – 240 V AC, 50-60 Hz|
|Cabinet material||12 mm MDF|
|Cabinet surface||texture paint|
|Cabinet construction||Bass Reflex|
