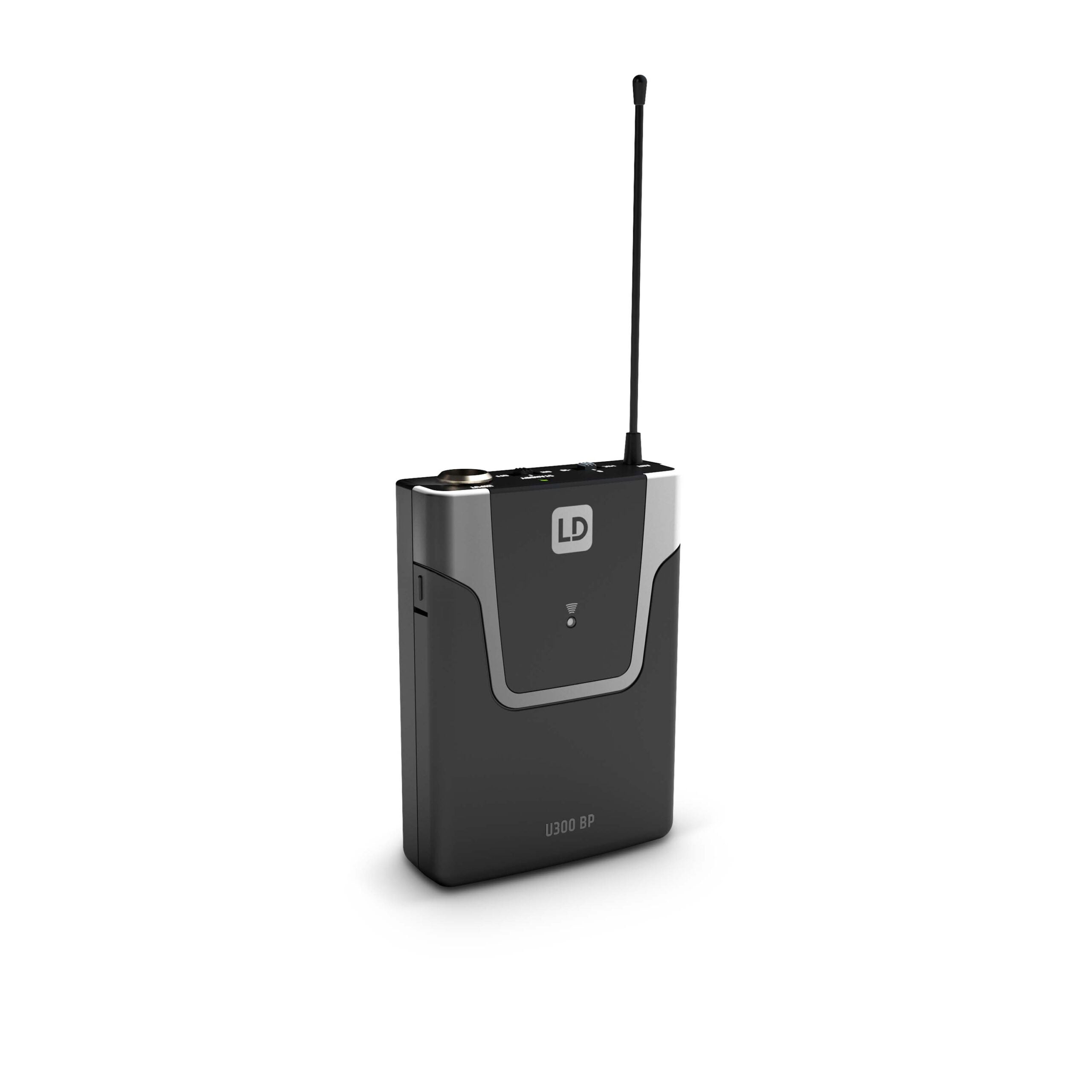

Operating in the 470 – 490 MHz band, this U300® Series bodypack transmitter features a miniature XLR input with 3-position level selector to accommodate microphones as well as active and passive instrument pickups. It has an output power of 10 mW and 25 Hz – 16 KHz frequency response to handle 5-string bass guitars with a low B string. The U3047 BP provides over 10 hours of continuous operation on two AA batteries, easy IR syncing with the U3047 receiver and pilot tone transmission to eliminate RF interference. The bodypack’s on/off switch includes a convenient standby position for temporary muting.
| Product type | Wireless Microphone System Accessories |
| Type | Bodypack |
| Transmission frequency range | 470 – 490 MHz |
| Channels | 12 |
| Groups | 1 |
| Inputs | Mini-XLR (Phantom Powered Low-Z / High-Z Instrument) |
| Frequency response | 25 – 16000 Hz |
| Signal-to-noise ratio | 104 dB |
| Rated HF output power | 10 mW |
| Controls | Gain (3-way switch), Power On/Off |
| Indicators | ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green) |
| Operating voltage | 2 x AA battery |
| Operating time | >10 h |
| Width | 65 mm |
| Height | 91 mm |
| Depth | 25 mm |
| Weight | 0,085 kg |
| Other features | Belt clip, IR frequency synchronisation, Pilot tone |
