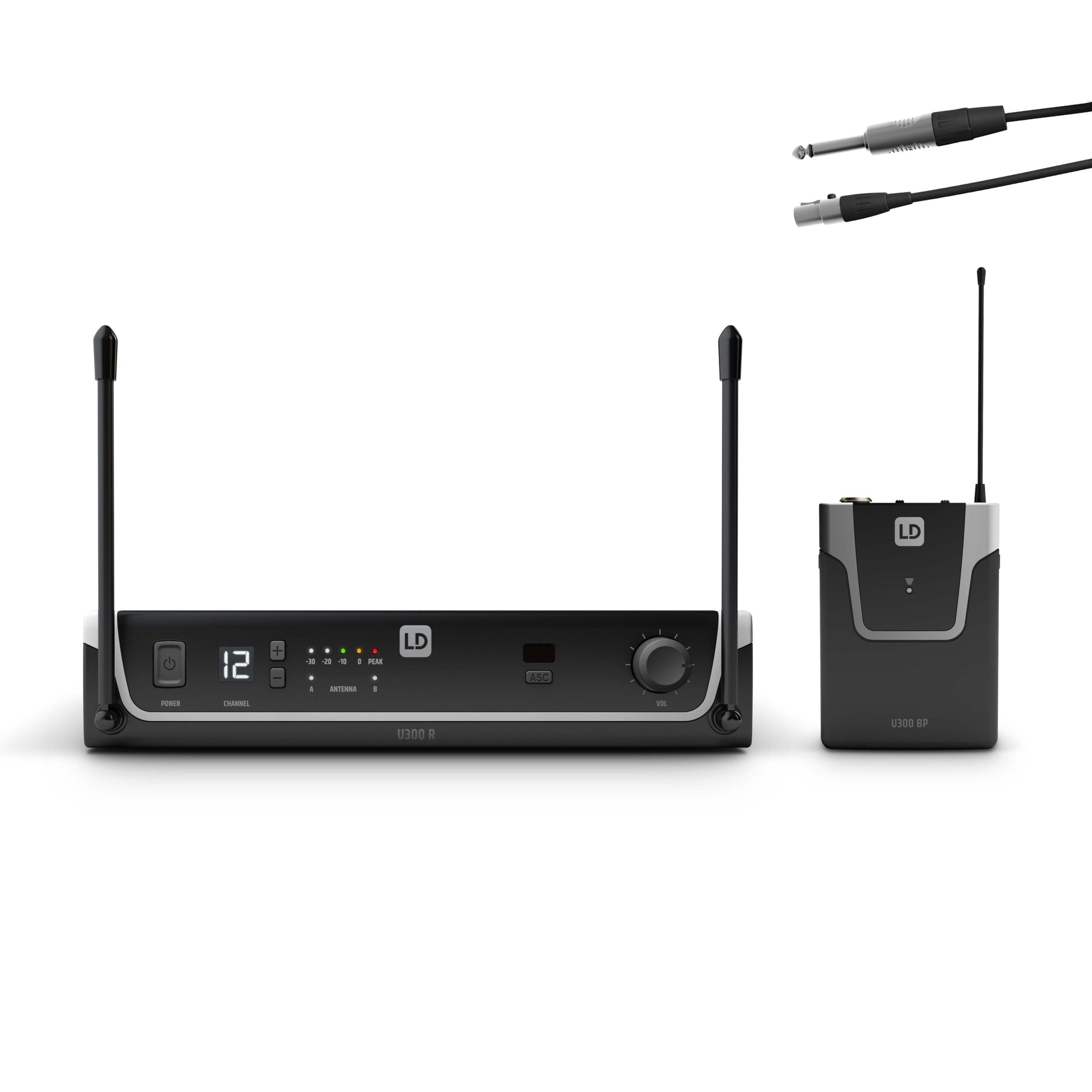

LD Systems U304.7 BPG

LD Systems U304.7 BPG – Wireless Microphone System with Bodypack and Guitar Cable

2 gadu garantija visiem produktiem!

242.00 €
Piegāde no 6 līdz 9 dienām

0.00€ bezmaksas piegāde lietojot DPD Pickup, ja summa ir lielāka par 100.00€.

5.00€ ja vēlies, lai DPD kurjers preci nogādā līdz mājām 1* darbas dienas laikā.

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.

Product type Wireless Microphone Systems
Type Set
Transmission frequency range 470 – 490 MHz
Weight 0,83 kg

LDU3047BP – U304.7 BP

Product type Wireless Microphone System Accessories
Type Bodypack
Transmission frequency range 470 – 490 MHz
Channels 12
Groups 1
Inputs Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response 25 – 16000 Hz
Signal-to-noise ratio 104 dB
Rated HF output power 10 mW
Controls Gain (3-way switch), Power On/Off
Indicators ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Operating voltage 2 x AA battery
Operating time >10 h
Width 65 mm
Height 91 mm
Depth 25 mm
Weight 0,085 kg
Other features Belt clip, IR frequency synchronisation, Pilot tone

LDU3047R – U304.7 R

Product type Wireless Microphone System Accessories
Type Receivers
Modulation Type FM
Transmission frequency range 470 – 490 MHz
Channels 12
Groups 1
Antenna inputs 2 x fixed
Frequency response 25 – 16.000 Hz
Noise reduction Squelch
Transmission optimization Pilot tone
Total Harmonic Distortion (THD) < 0.3 %
Signal-to-noise ratio 104 dB
Audio output, balanced XLR
Audio output, unbalanced 6.3 mm jack, switchable unbalanced output level
Max. output level +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls ASC, Channel down, Channel up, Line/Instrument Level, Power, volume
Indicators 5 LED VU meters, Antenna A/B, LC display
Operating voltage 12 V DC – 18 V DC (500 mA), external power supply
Width 211 mm
Height 43 mm
Depth 120 mm
Weight 0,7 kg
Accessories (included) 2 x AA batteries, Audio cable, Power supply
Other features IR frequency synchronisation

LDU500GC – U500 GC

Product type Wireless Microphone System Accessories
Type Guitar Cables
Connector 1 Mini-XLR (3-pin, female)
Connector 2 6.3 mm jack
Length 0.8 m
Weight 0,045 kg
