Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.
U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

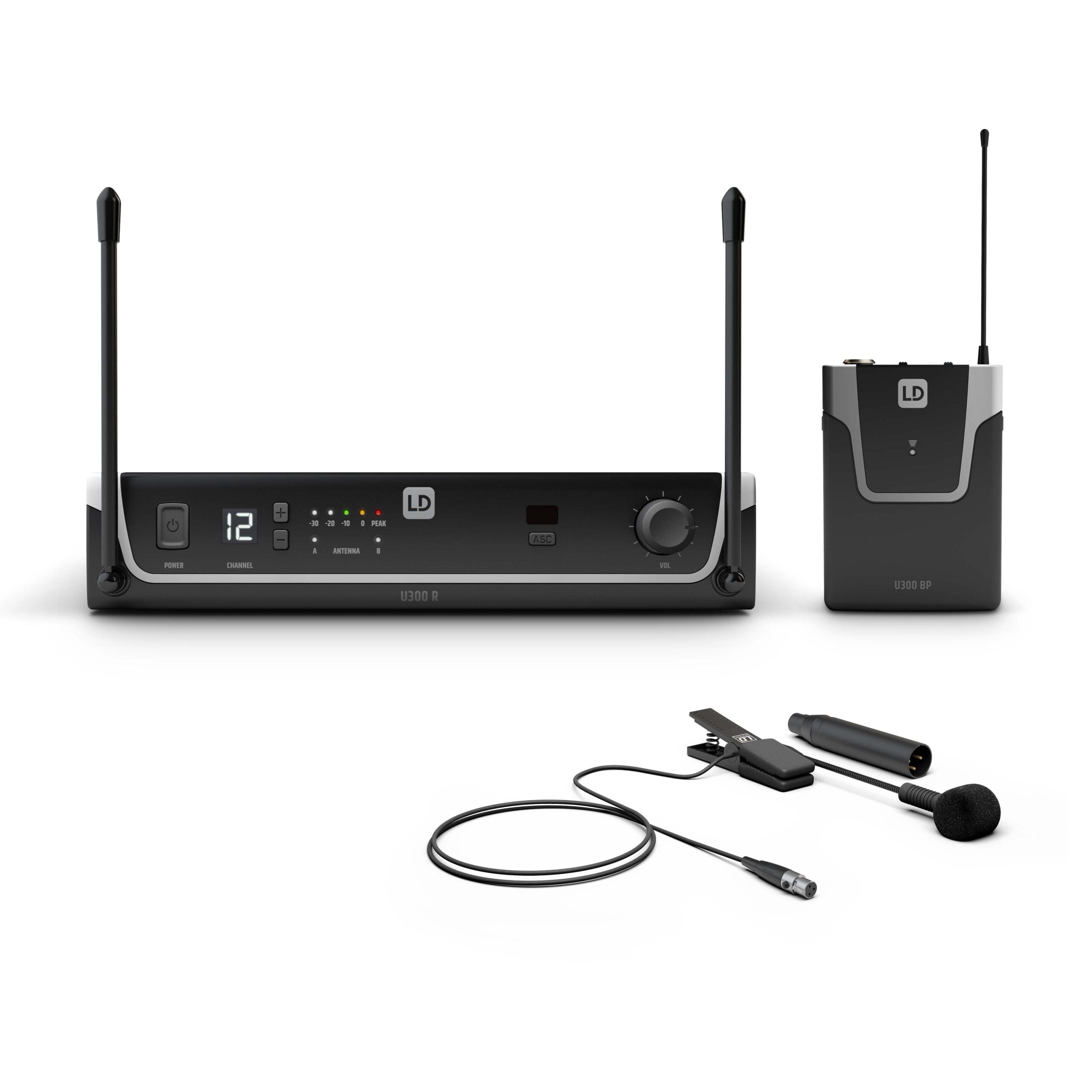

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.
| Product type | Wireless Microphone Systems |
| Type | Set |
| Transmission frequency range | 470 – 490 MHz |
| Weight | 0,84 kg |
LDU3047BP – U304.7 BP
| Product type | Wireless Microphone System Accessories |
| Type | Bodypack |
| Transmission frequency range | 470 – 490 MHz |
| Channels | 12 |
| Groups | 1 |
| Inputs | Mini-XLR (Phantom Powered Low-Z / High-Z Instrument) |
| Frequency response | 25 – 16000 Hz |
| Signal-to-noise ratio | 104 dB |
| Rated HF output power | 10 mW |
| Controls | Gain (3-way switch), Power On/Off |
| Indicators | ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green) |
| Operating voltage | 2 x AA battery |
| Operating time | >10 h |
| Width | 65 mm |
| Height | 91 mm |
| Depth | 25 mm |
| Weight | 0,085 kg |
| Other features | Belt clip, IR frequency synchronisation, Pilot tone |
LDU3047R – U304.7 R
| Product type | Wireless Microphone System Accessories |
| Type | Receivers |
| Modulation Type | FM |
| Transmission frequency range | 470 – 490 MHz |
| Channels | 12 |
| Groups | 1 |
| Antenna inputs | 2 x fixed |
| Frequency response | 25 – 16.000 Hz |
| Noise reduction | Squelch |
| Transmission optimization | Pilot tone |
| Total Harmonic Distortion (THD) | < 0.3 % |
| Signal-to-noise ratio | 104 dB |
| Audio output, balanced | XLR |
| Audio output, unbalanced | 6.3 mm jack, switchable unbalanced output level |
| Max. output level | +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu |
| Controls | ASC, Channel down, Channel up, Line/Instrument Level, Power, volume |
| Indicators | 5 LED VU meters, Antenna A/B, LC display |
| Operating voltage | 12 V DC – 18 V DC (500 mA), external power supply |
| Width | 211 mm |
| Height | 43 mm |
| Depth | 120 mm |
| Weight | 0,7 kg |
| Accessories (included) | 2 x AA batteries, Audio cable, Power supply |
| Other features | IR frequency synchronisation |
LDWS1000MW – WS 1000 MW
| Product type | Wireless Microphone System Accessories |
| Type | Microphones |
| Frequency response | 50 – 18.000 Hz |
| Directivity | Cardioid |
| Sensitivity (quiescent voltage @ 1kHz) | – 45 dB +/- 3 dB |
| Nominal impedance | 250 Ohm(s) |
| Max. SPL (1% THD @ 1kHz) | 133 dB |
| Phantom power requierements | 5 V |
| Microphone input | Mini-XLR (3-pin, female) |
| Cable length | 1.5 m |
| Accessories (included) | Foam windscreen, Phantom power adapter LDPHA |
| Weight | 0,05 kg |
| Features | 70 mm gooseneck |
