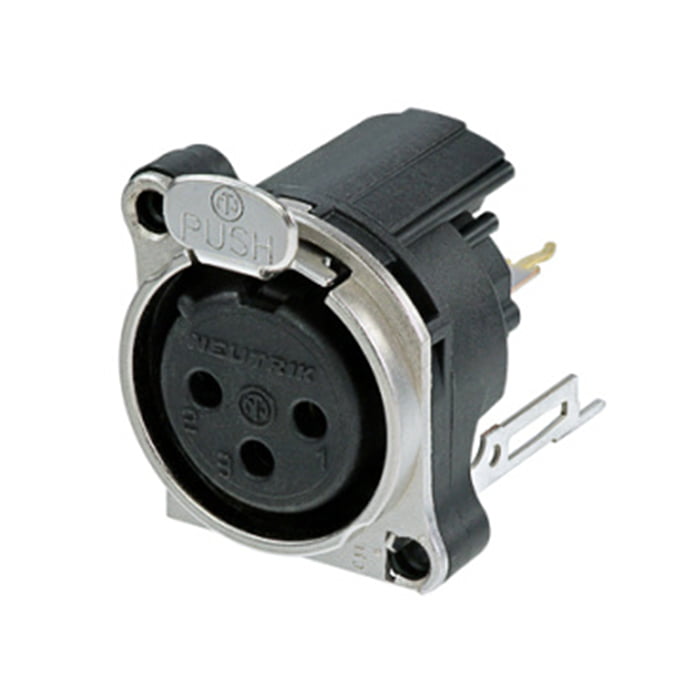

3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.
Features & Benefits
- Smallest XLR receptacles, highest packing density
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Tulip type female contact
- Housing flammability UL94V-0
| Product type | Plugs and Connectors |
| Type | XLR Connectors |
| Poles | 3 |
| Gender | female |
| Contacts | Bronze |
| Connection type | PCB Assembly |
| Housing | die-cast zinc |
| Width | 25.3 mm |
| Height | 25.3 mm |
| Depth | 33.9 mm |
| Weight | 0,013 kg |
