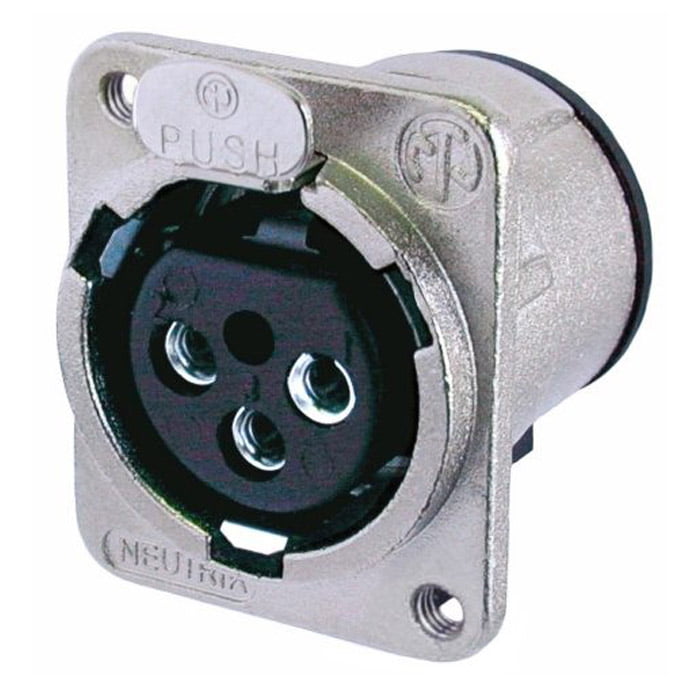

3 pole female receptacle, vertical PCB mount, nickel housing, silver contacts, M3 mounting holes
Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.
Features & Benefits
- D-shape metal shell
- Optimal RF protection using 3 shield contacts.
- Insert is removable from rear of connector and locked into place by internal latch – permitting assembling and testing of pcb before assembling into housing
- Front or rear panel mount
| Product type | Plugs and Connectors |
| Type | XLR Connectors |
| Poles | 3 |
| Gender | female |
| Contacts | silver plated |
| Connection type | PCB Assembly |
| Housing | die-cast zinc |
| Width | 26 mm |
| Height | 31 mm |
| Depth | 27 mm |
| Weight | 0,028 kg |
| Additional information | in D-type housing with M3 thread |
