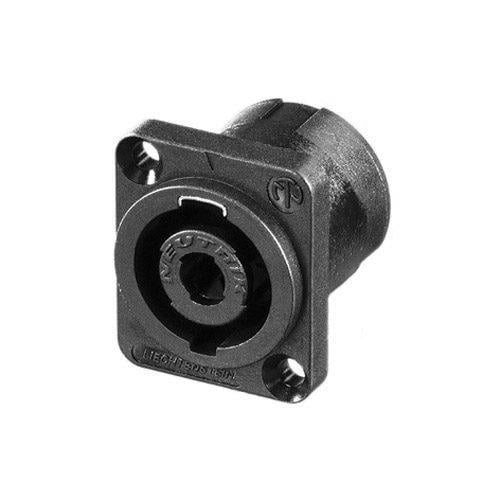

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16″ flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features & Benefits
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design – optimized for speaker applications
- Branded with unique hologram – guarantees genuine and authentic Neutrik product
Product type | Plugs and Connectors |
Type | Loudspeaker Connectors |
Poles | 4 |
Gender | male |
Contacts | Bronze |
Connection type | Flat tabs |
Housing | polyamide |
Width | 26 mm |
Height | 31 mm |
Depth | 35 mm |
Weight | 0,012 kg |
Additional information | in D-type housing |
