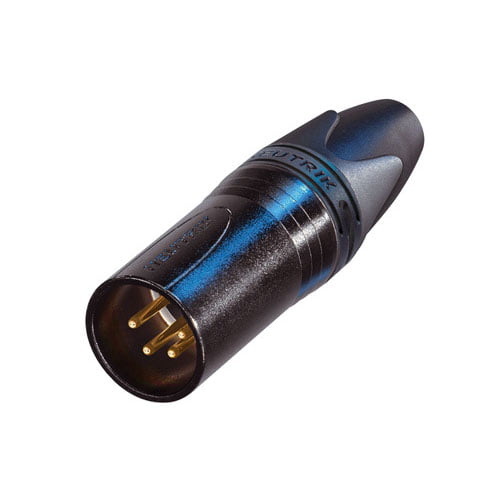

The XX Series is the next generation of the acknowledge worldwide standard in XLR cable connectors. The successor of the X Series offers various new features that make the connectors even more reliable. Now the cable connectors are easier to assemble, the contacts are even more robust, and the cable strain relief was also improved.
| Product type | Plugs and Connectors |
| Type | XLR |
| Poles | 4 |
| Gender | male |
| Cable diameter | 3.5 – 8 mm |
| Contacts | brass |
| Cross section | max. 1.5 mm² |
| Connection type | solder contacts |
| Color | Black |
| Housing | die-cast zinc |
| Strain relief | polyacetal |
| Length | 68.1 – 70,1 mm |
| Diameter | 19 mm |
| insulating resistance | > 10 G Ohm(s) |
| Rated Voltage | < 50 V |
| Protection class IP | IP40 |
| Temperature range | -30 – 80 °C |
| Weight | 0,029 kg |
