Neutrik NC5FAV

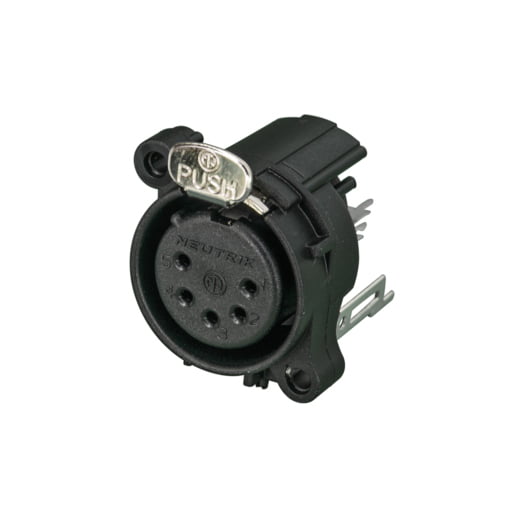

Neutrik NC5FAV – XLR Built-In Socket 5-Pol, female

2 gadu garantija visiem produktiem!

5.00 €
Piegāde no 6 līdz 9 dienām

0.00€ bezmaksas piegāde lietojot DPD Pickup, ja summa ir lielāka par 100.00€.

5.00€ ja vēlies, lai DPD kurjers preci nogādā līdz mājām 1* darbas dienas laikā.

5 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount

The ‘State of the Art’ receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed tulip type contacts with gold plating of contact area and tin plated pcb termination area.

Product type Plugs and Connectors
Type XLR Socket
Poles 5
Gender female
Color Black
Contacts Bronze
Connection type Vertical PCB mounting
Connection socket 7
Resistance 6 m Ohm(s)
insulating resistance >10 Ohm(s)
Rated current per contact 3 A
Housing polyamide
Chassis shape A
Latch Latch lock
Fire protection class UL 94 HB
Protection class IP IP40
Temperature range -30 – 80 °C
Weight 0,007 kg
