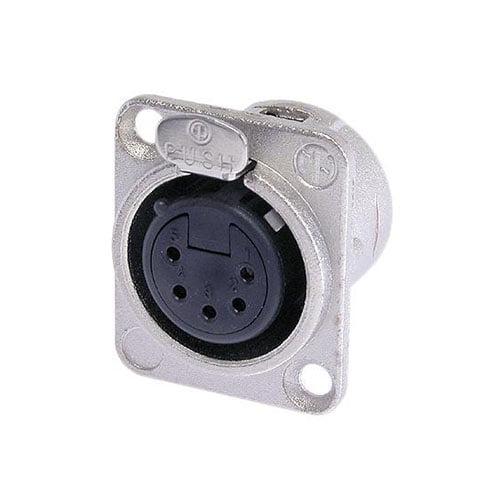

Uniform D-Metal Housing for Panel Mounting. UL recognized Component.
Product type | Plugs and Connectors |
Type | XLR |
Poles | 5 |
Gender | female |
insulating resistance | > 10 G Ohm(s) |
Rated Voltage | < 50 V |
Contacts | brass |
Cross section | max. 1 mm² |
Connection type | solder contacts |
Housing | die-cast zinc |
Color | silver |
Diameter | 23.8 mm |
Protection class IP | IP40 |
Temperature range | -30 – 80 °C |
Weight | 0,024 kg |
