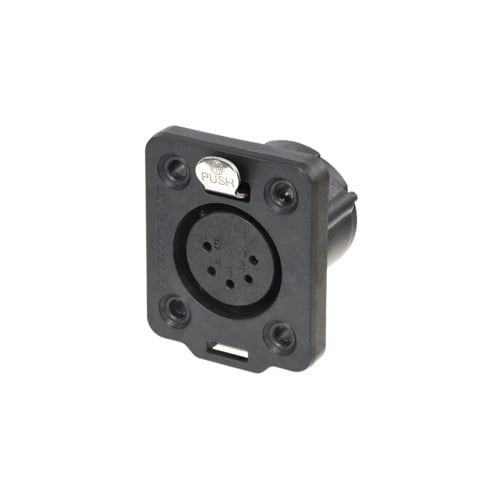

The X-TOP series is a “heavy-duty” XLR chassis connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.
Product type | Plugs and Connectors |
Type | XLR |
Poles | 5 |
Gender | female |
Color | Black |
Contacts | brass |
Connection type | solder contacts |
Capacitance between contacts | 4 pF |
Resistance | 5 m Ohm(s) |
insulating resistance | > 10 G Ohm(s) |
Rated Voltage | < 50 V |
Rated current per contact | 16 A |
Housing | polyamide |
Chassis shape | D |
Latch | Latch lock |
Width | 30.4 mm |
Height | 37.4 mm |
Depth | 30.8 mm |
Diameter | 23.8 mm |
Fire protection class | UL94 V-0 |
Protection class IP | IP65 |
Temperature range | – 30 °C / + 80 °C °C |
Weight | 0,016 kg |
