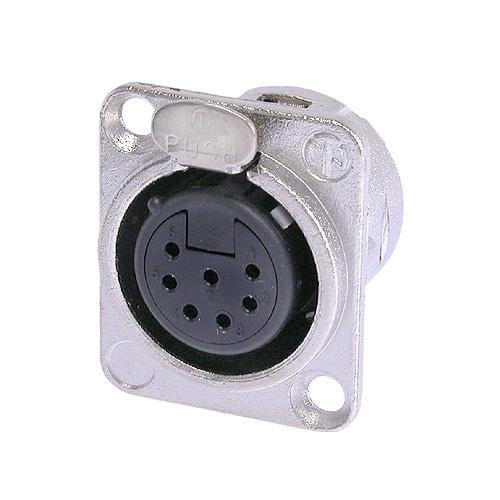

7 pole female receptacle, solder cups, Nickel housing, silver contacts
Universal D-size metal body panel mount series. UL recognized component.
- Rugged D-size metal body
- Standard D panel cut-out 24 mm
- Solder cups on 3 – 7 pole versions
Product type | Plugs and Connectors |
Type | XLR Connectors |
Poles | 7 |
Gender | female |
Contacts | silver plated |
Connection type | solder contacts |
Housing | die-cast zinc |
Width | 26 mm |
Height | 31 mm |
Depth | 21 mm |
Weight | 0,005 kg |
Additional information | in D-type housing |
