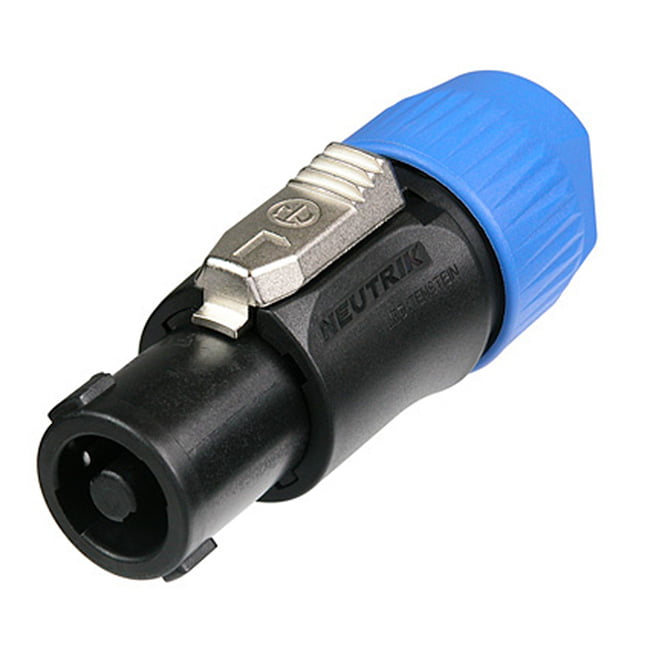

4 pole cable connector, chuck type strain relief
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features & Benefits
- Up to 30 A rms current rating
- Reliable and robust, easy and fast to assemble
- Cable strain relief for 6 – 15 mm cable O.D.
- Accurate and dependable twist lock latching system “Quick Lock”
- Glass reinforced material for insert and housing, long-lasting and dependable
- User friendly latch design for easy handling
- Unique Neutrik chuck type strain relief
- Branded with unique hologram – guarantees genuine and authentic Neutrik product
| Product type | Plugs and Connectors |
| Type | Loudspeaker Connectors |
| Poles | 4 |
| Gender | female |
| Cable diameter | 6 – 11 mm |
| Contacts | nickel plated |
| Connection type | screws/solder contacts |
| Color | blue |
| Housing | polyamide |
| Strain relief | polyacetal |
| Length | 73 mm |
| Diameter | 26 mm |
| Weight | 0,039 kg |
