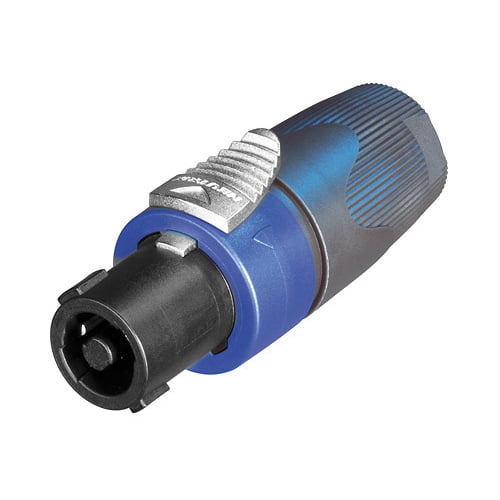

4 pole cable connector, chuck type strain relief, dark grey bushing
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features & Benefits
- Current rating 40 A rms continuous
- Up to 50 A audio signal, duty cycle 50%
- Only 3 parts, easy to assemble
- High impact materials – long-lasting and reliable
- Easy and extremely precise locking system “Quick Lock”
- Improved grip on latch
- 1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.
- Color coding possible
- Improved screw-type termination for highest pull-out force
- Integrated design guarantees “Made by Neutrik®”
| Product type | Plugs and Connectors |
| Type | Loudspeaker Connectors |
| Poles | 4 |
| Gender | female |
| Cable diameter | 7 – 14.5 mm |
| Colour marker | blue |
| Contacts | nickel plated |
| Connection type | screws/solder contacts |
| Color | dark grey |
| Housing | die-cast zinc |
| Strain relief | polyacetal |
| Length | 76.5 mm |
| Diameter | 26 mm |
| Weight | 0,0431 kg |
