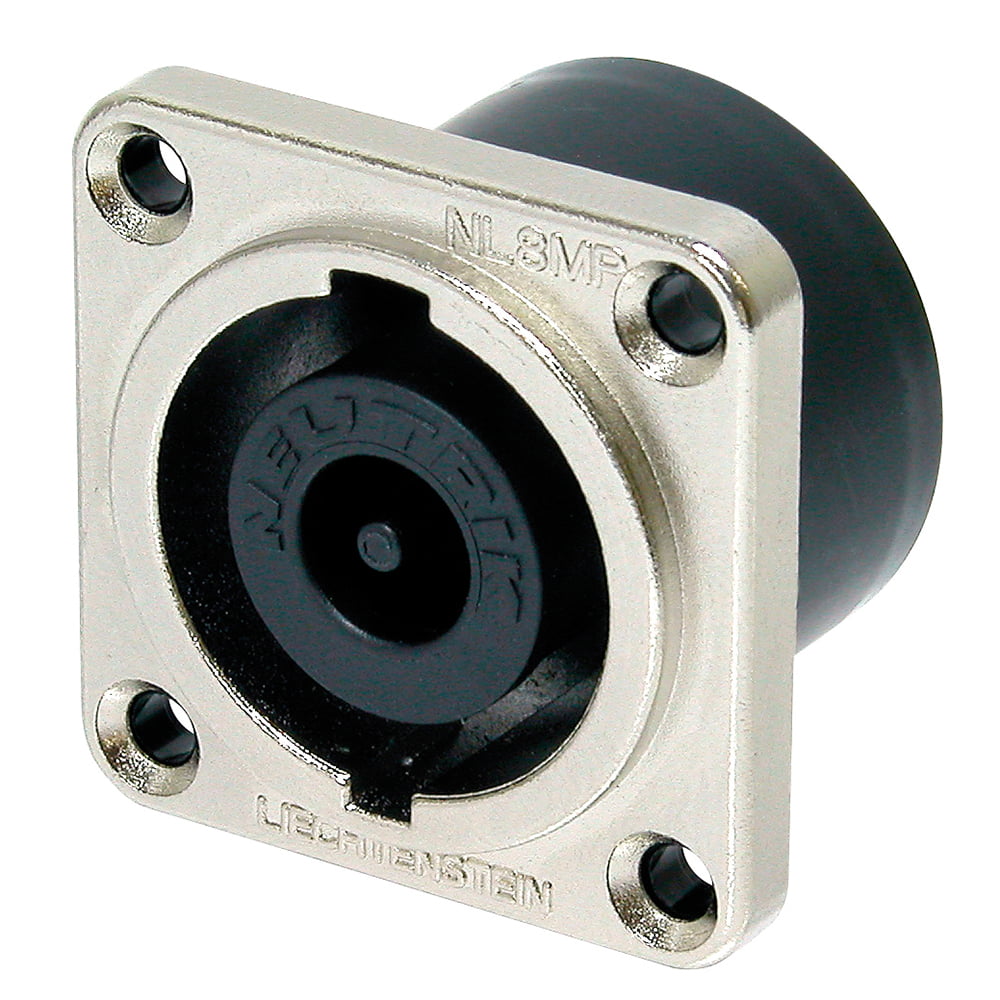

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16″ flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features & Benefits
- C urrent rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal flange
- Airtight design – optimized for speaker applications
| Product type | Plugs and Connectors |
| Type | Loudspeaker Connectors |
| Poles | 8 |
| Gender | male |
| Contacts | Bronze |
| Connection type | Flat tabs |
| Housing | polyamide |
| Width | 38 mm |
| Height | 38 mm |
| Depth | 33 mm |
| Weight | 0,04 kg |
