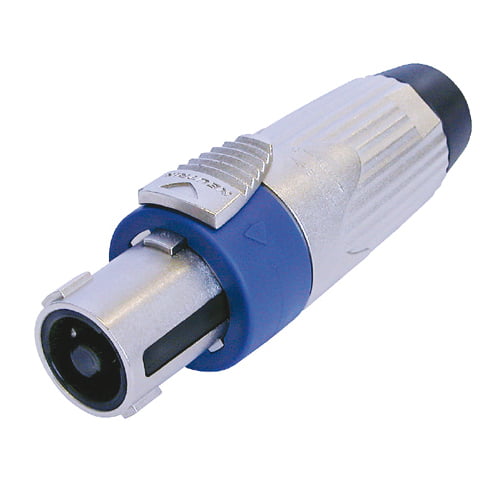

4 pole female cable connector, nickel housing, chuck type strain relief
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Features & Benefits
- Current rating 40 A continuous, 50 A audio with 50% duty cycle
- Robust and durable all metal housing
- Sealing ring provides weatherproof IP54 rating
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available speakON products
| Product type | Plugs and Connectors |
| Type | Loudspeaker Connectors |
| Poles | 4 |
| Gender | female |
| Contacts | brass |
| Connection type | solder contacts |
| Housing | die-cast zinc |
| Width | 26 mm |
| Height | 26 mm |
| Depth | 85 – 90 mm |
| Weight | 0,069 kg |
