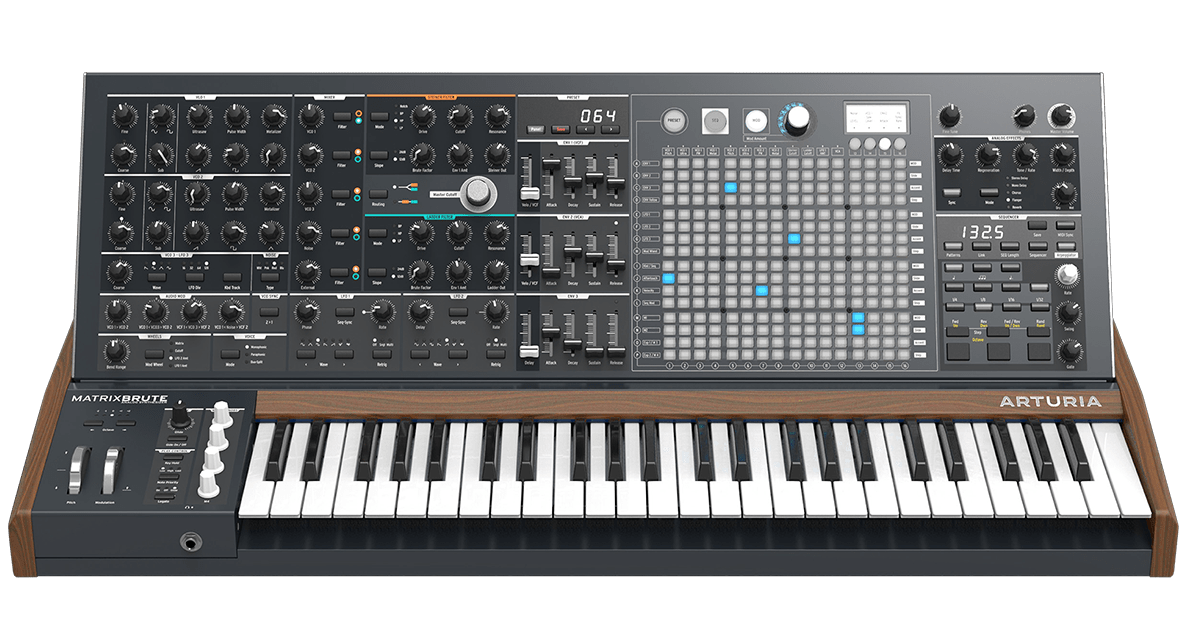

MatrixBrute is arguably the most powerful analog monophonic synthesizer ever! As flexible as a modular system but offering presets, MatrixBrute is a dream machine for everyone interested in creating a sound palette of their own.
When was the last time you felt your heart beating faster?
MatrixBrute is an outstanding analog synthesizer. Offering three Brute oscillators, a Steiner-Parker filter and a ladder filter, five analog effects, and the incredible modulation matrix, it is a massive sonic beast.
Distinction in design
The heart of the MatrixBrute is its unique modulation matrix that allows you to create your own routings. You can invent a sound palette of your own that will be sure to be heard in any mix!
The matrix can also be used to recall your presets. So go on stage, and select any of the 256 presets instantly! No menus or awkward selection screens, everything is at your fingertips.
As if it was not enough, the matrix is also made to program and play sequences. This is no ordinary step-sequencer. With its ability to also be used as a modulation source, sounds evolve in melody and texture, Just the way you want.
Hands-On Heaven
The Matrix is where MatrixBrute’s analog reactivity and digital precision collide – an advanced architecture unlike any synth before it.
Sound beyond the power
Offering a audio signal path that is is 100% analog, MatrixBrute also features true analog effects. The MatrixBrute gives you the sonic quality and power of a vast modular synthesizer but with the flexibility of presets along with a great arpeggiator and an advanced sequencer.
Main Features
- Analog Matrix Synthesizer
- 256 Preset memory locations
- Two Analog Exponential VCO’s
- Saw + UltraSaw
- Square + Pulse width
- Triangle + Metalizer
- Sub
- One Analog Linear VCO/LFO
- Saw, Square, Triangle, Sine waveforms
- LFO time divisions
- Key track
- VCO 2>1 Hard Sync
- Audio Mod
- VCO1>2
- VCO1 >VCO3> VCO2
- VCF 1 >VCO3> VCF 2
- VCF1 >Noise> VCF2
- Noise Generator
- White ; Pink ; Red ; Blue noise types
- 5 input Audio Mixer with Filter routing
- Steiner Parker filter with 12+24 db per octave modes
- Drive ; Brute factor; Low Pass, High Pass, Band Pass, Notch
- Ladder filter with 12+24 db per octave modes
- Drive ; Brute factor; Low Pass, High Pass, Band Pass
- Two LFO’s
- Sine, Tri, Square, Ramp, Saw, Random, S&H
- Three Envelope Generators
- Two Attack, Decay, Sustain, Release
- One Delay, Attack, Decay, Sustain, Release
- External Audio In
- 16×16 Matrix modulation panel
- 64 step sequencer
- STEP enable, Slide, Accent, Modulation
- Save and recall sequence patterns on the fly
- Analog Effects
- Stereo delay, Delay, Flanger, Chorus, Analog Reverberator
- Arpeggiator
- 12 CV / Gate Inputs/Outputs
- Audio Input, Line or Instrument level
- Stereo audio output
- MIDI and USB I/O
- Pedal inputs for Expression and Sustain
