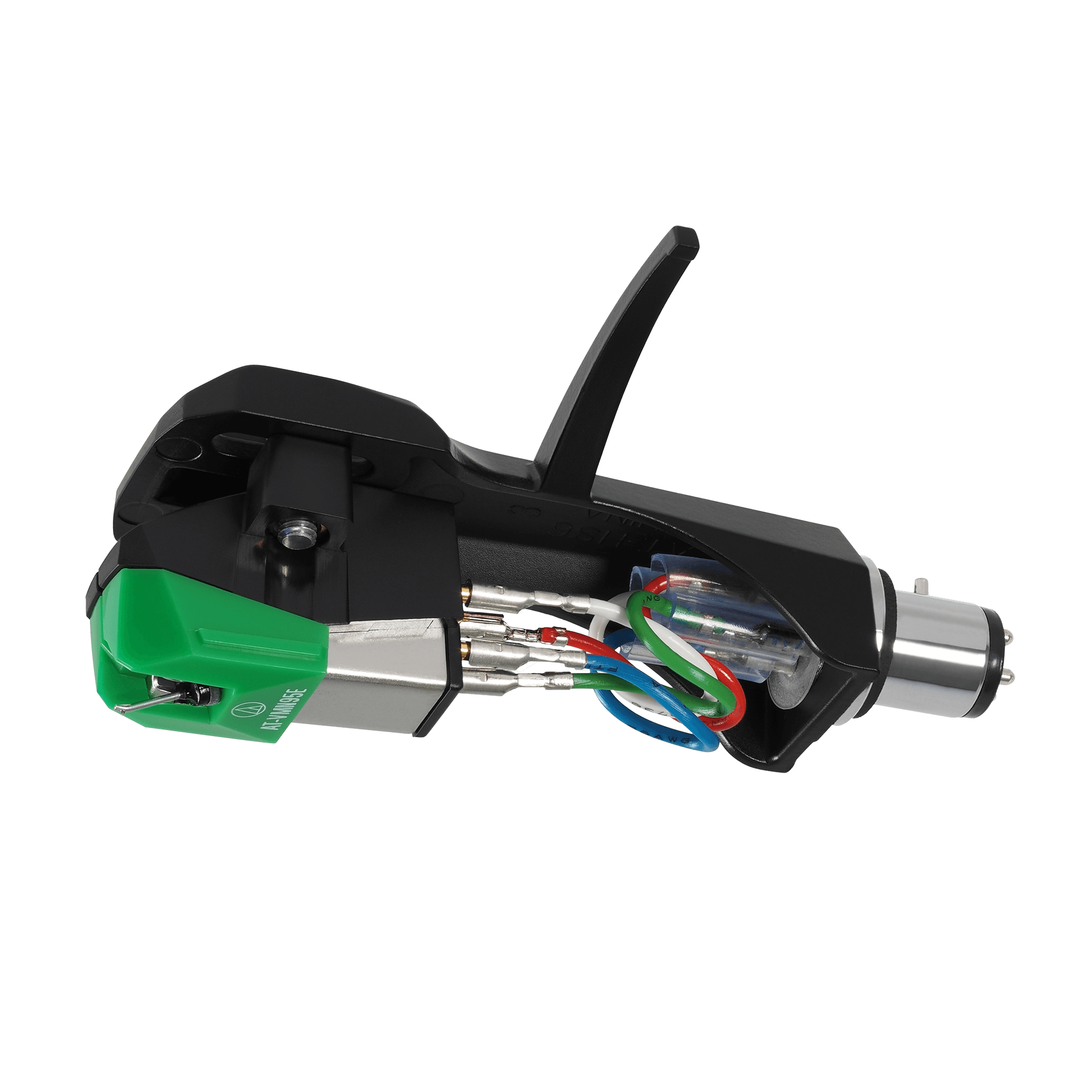

The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell.
Specifications
- Frequency Response: 20 – 22,000 Hz
- Channel Separation: 20 dB (1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Stylus Construction: Bonded Round Shank
- Recommended Load Impedance: 47,000 Ω
- Coil Impedance: 3.3 kΩ (1 kHz)
- DC Resistance: 485 Ω
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: Elliptical
- Cantilever: Aluminium Pipe
- Static Compliance: 17 x 10 – 6 cm / dyne
- Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
- Mounting: 1/2” centres
- Dimensions: 21.2 × 21.4 × 62.4 ( H x W x D mm)
- Model: AT-VM95E/H
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: AT-VMN95E
- Stylus Size: 0.3 x 0.7 mil
- Type: VM Stereo Dual Magnet
- Weight: 15.5 g
- Wire Used for Coil: T.P. Copper
For more information visit the manufacturer’s website
