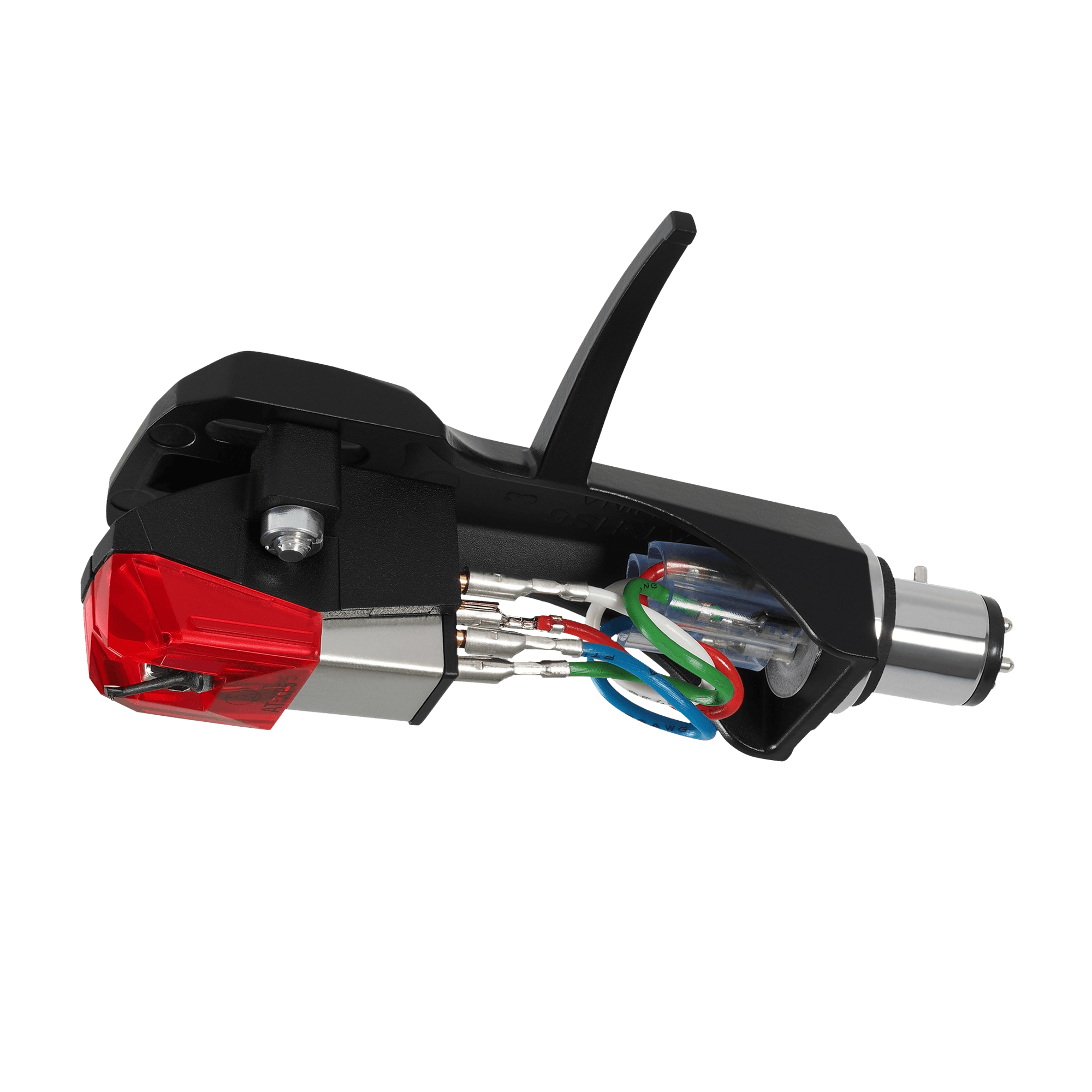

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.
Specifications
- Frequency Response: 20 – 18,000 Hz
- Channel Separation: 20 dB (1 kHz)
- Vertical Tracking Angle: 20 degrees
- Vertical Tracking Force: 2.0 to 4.0 g (standard 3g)
- Stylus Construction: Bonded Round Shank
- Recommended Load Impedance: 47,000 Ω
- Coil Impedance: 6,700 ohms (1 kHz)
- Coil Inductance: 1.0 H (1 kHz)
- Output Voltage: 5.5 mV (at 1 kHz, 5 cm/sec)
- Output Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: Elliptical
- Cantilever: Carbon reinforced ABS
- Static Compliance: 20 x 10 – 6 cm / dyne
- Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 15.6g
- Dimensions: 21.2 × 21.4 × 62.4 ( H x W x D mm)
- Model: AT-XP5/H
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: ATN-XP5
- Stylus Size: 0.3 x 0.7 mil
