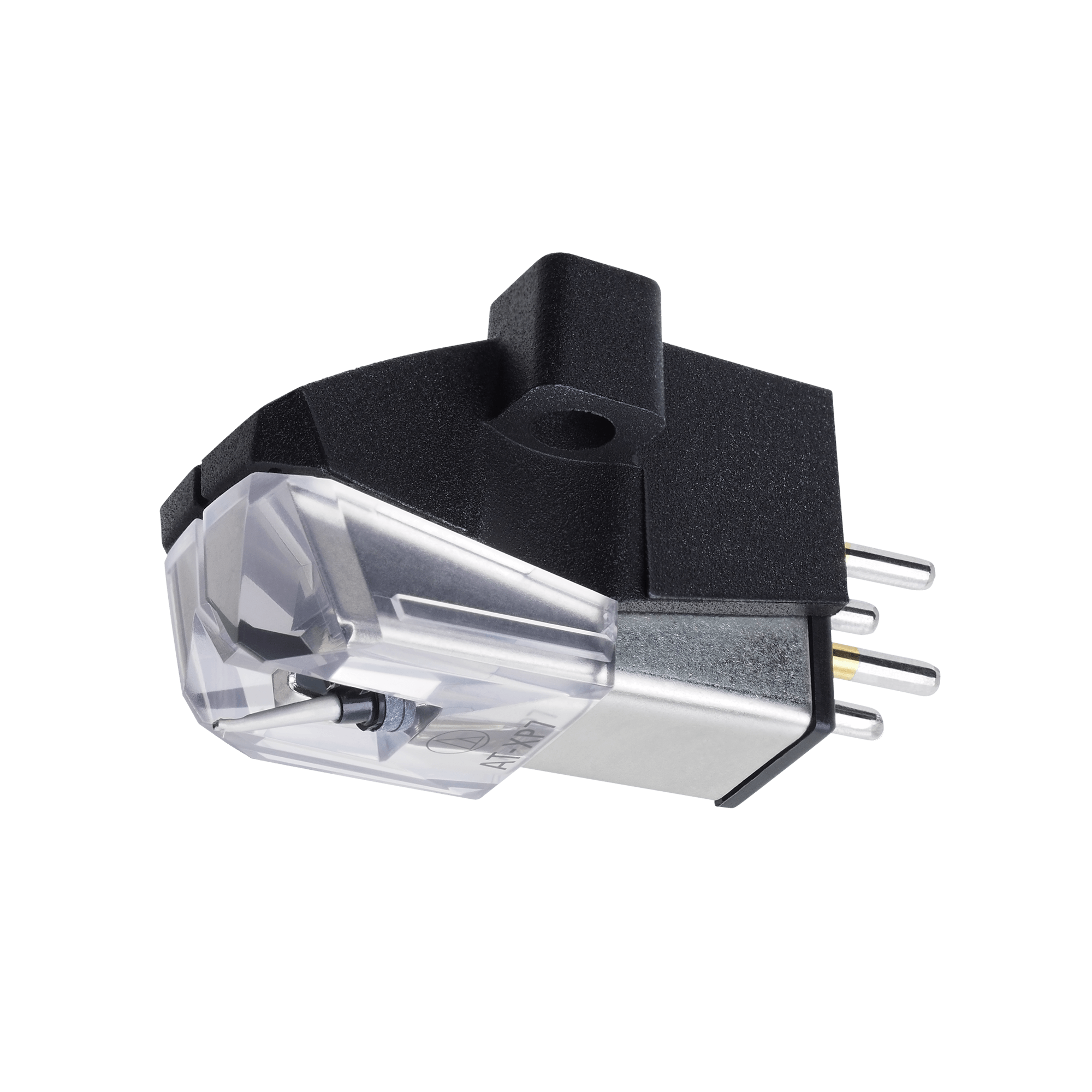

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Specifications
- Frequency Response: 20 – 20,000 Hz
- Channel Separation: 22 dB at 1kHz
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 2.0 to 4.0 g (standard 3g)
- Stylus Construction: Bonded Round Shank
- Recommended Load Impedance: 47,000 ohms
- Coil Inductance: 1.0 H (1 kHz)
- Output Voltage: 6.0 mV (mV at 1 kHz, 5 cm/sec)
- Output Channel Balance: Output Channel Balance
- Stylus Shape: Elliptical
- Cantilever: Aluminium tapered Pipe
- Static Compliance: 20 x 10-6 cm/dyne
- Dynamic Compliance: 8.0×10-6cm/dyne (100Hz)
- Mounting: Half-inch
- Dimensions: H17.2×W17.8×D28.3mm
- “Accessories Included: Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
- Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1″
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: ATN-XP7
- Stylus Size: 0.3 x 0.7 mil
- Type: VM Dual Magnet
- Weight: 6.2g
For more information visit the manufacturer’s website
