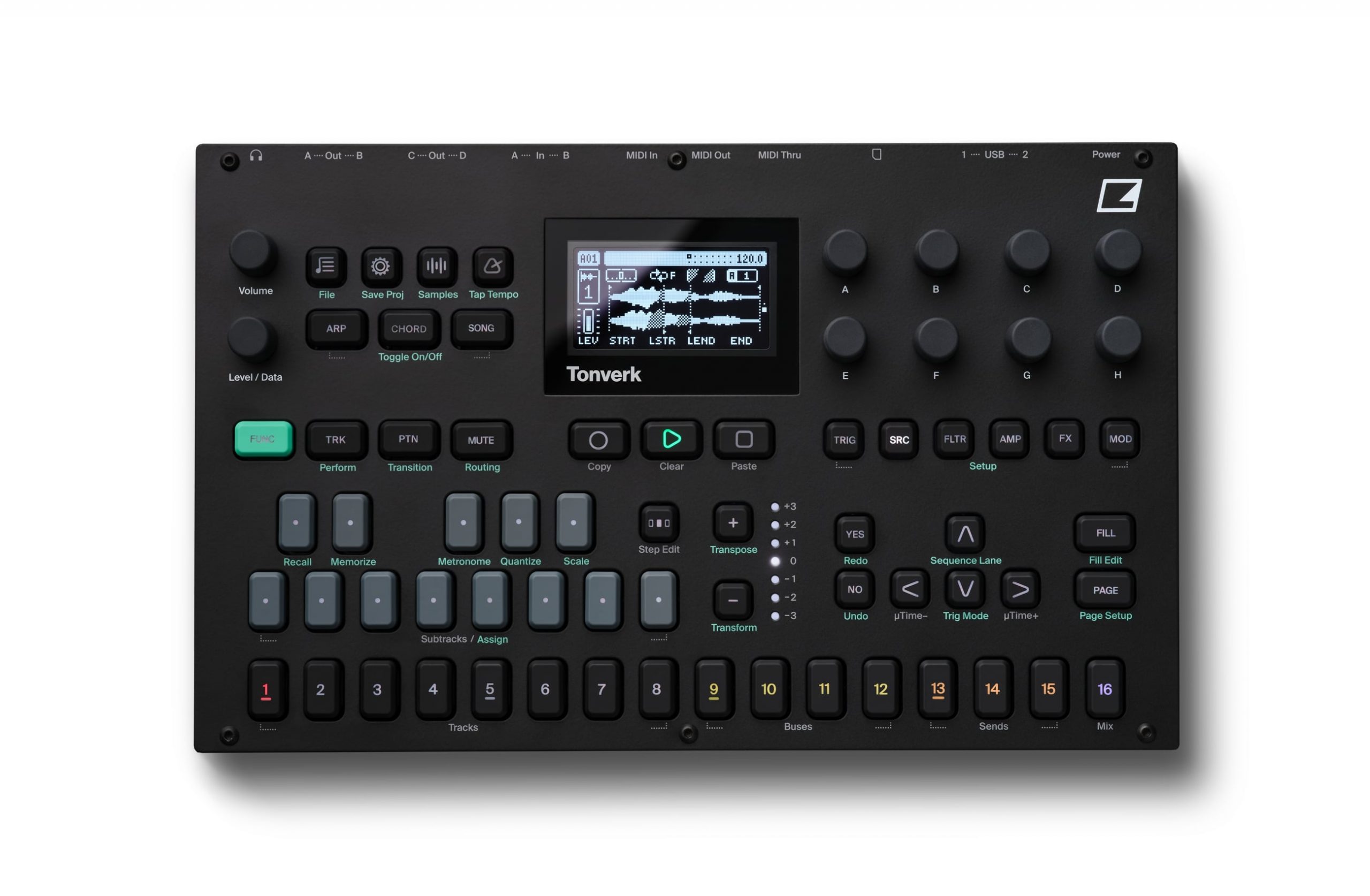

Elektron Tonverk

Sonic pathfinder

2 gadu garantija visiem produktiem!

Tonverk has eight audio tracks that can be utilized in different ways depending on where you want to take your sounds. There are a further eight tracks for buses, sends, and mix – all primed for relentless routing, putting a wealth of fresh FX flavors in your hands for use across the box. All 16 tracks have their own sequencer.

Tonverk heralds the arrival of another Elektron platform, the first device and certainly not the last. It joins our family of platforms, each offering hugely exciting opportunities that we can’t wait to explore and bring to life. You’re invited to enter a gateway to fantastic fun and experimentation. And, like all adventures, the beginning offers only a glimpse of what’s to come.

Specifications:

Features

8 voices per audio track
4 × selectable machines per audio track:
Single Player
Multi Player
Subtracks
MIDI (also selectable on the bus tracks)
8 × stereo audio tracks
4 × bus tracks
3 × send effect tracks
1 × mix track
1 × digital base-width filter per track/subtrack
2 × assignable LFOs per track
1 × assignable modulation envelope per voice
2 × assignable FX LFOs per audio track
2 × assignable LFOs per effect bus, send effect, and mix
Modulation setup per track for pitch bend, mod wheel, breath control, aftertouch
Step Edit
Extensive routing options
Diverse sound library (single samples, drum sets, multi-sampled instruments, and presets

MIDI track features

16 note polyphony per step
16 × assignable CC controls
2 × assignable LFOs per track

Performance features

2 × Trig modes
Tracks
Velocity
Keyboard mode with 36 different scales
Song mode
Chord mode

Sequencer features

Up to 256 steps per pattern and track
Arpeggiator per audio & MIDI track
Polyphonic sequencing
Individual pattern length per track
Individual time scale multiplier per track
Parameter locks
Trig conditions & trig chance
Retrig (audio & MIDI tracks only)
Micro timing
Sequencer lanes

Effects

Comb +/- Filter
Filterbank
Low-pass Filter
Multimode Filter
Infinite Flanger
Panoramic Chorus
Phase 98
Warble
Chrono Pitch
Frequency Warper
Compressor
Degrader
Dirtshaper
Daisy Delay
Saturator Delay
Rumsklang Reverb
Supervoid Reverb

Hardware

128 × 64 pixel OLED screen
4 × ¼” impedance balanced audio out jacks
2 × ¼” balanced audio in jacks
1 × ¼” stereo headphone jack
48 kHz, 24-bit D/A and A/D converters
2 × USB-C port
MIDI In/Out/Thru with DIN Sync out
SD Card slot

Physical specifications

Sturdy steel casing
Dimensions: W 286 × D 176 × H 63 mm (11.3″ × 6.9″ × 2.5″) (including knobs and feet)
Weight: approximately 1.85 kg (4.08 lbs)
100 × 100 mm VESA mounting holes. Use M4 screws with a max length of 7 mm
