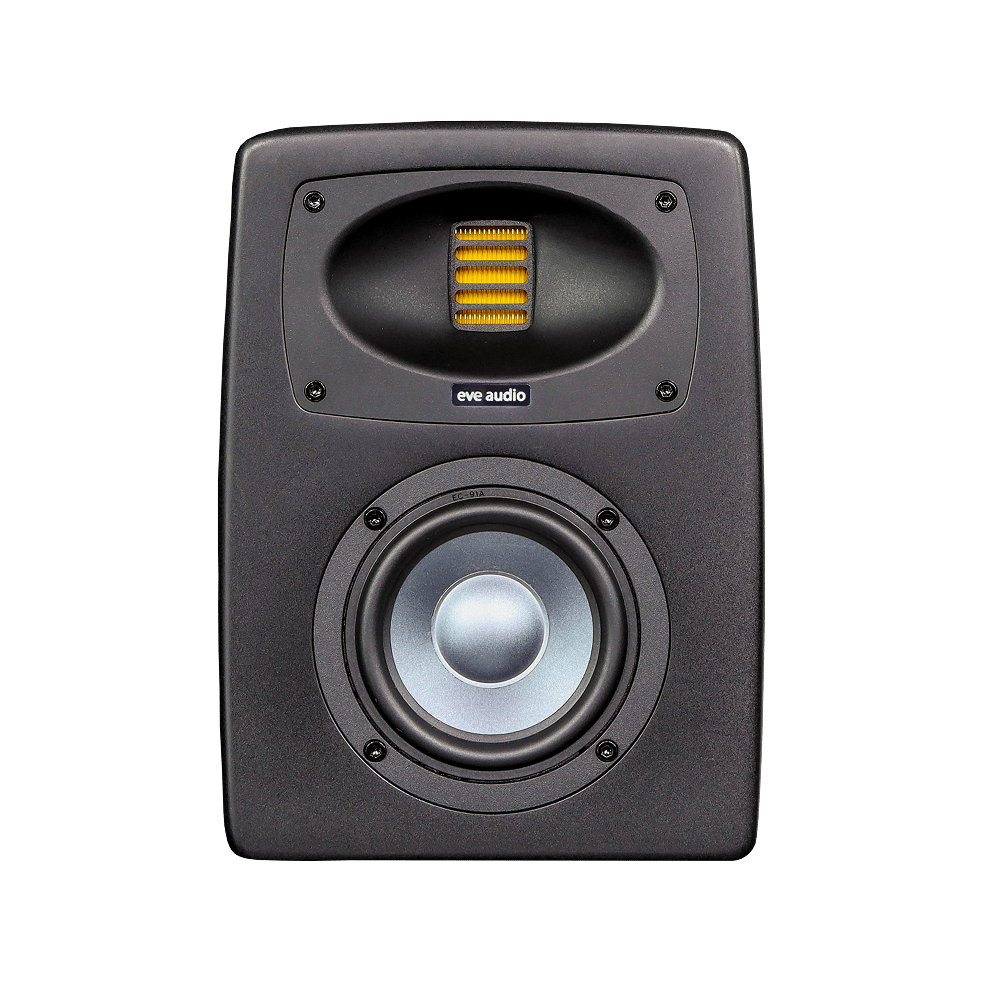

Compact monitoring solution
The EXO 24 is the ideal choice for professional studios, ambitious producers, and discerning home users – wherever space is limited but no compromises in sound are acceptable.
Designed for professionals who demand accuracy without compromise, the EXO 24 combines advanced acoustic design, intelligent control features and uncompromising sound quality in a space-saving format.
Thanks to its controlled dispersion characteristics, the EXO 24 is also perfectly suited for immersive applications such as Dolby Atmos. To simplify mounting, the EXO 24 is equipped with four M6 threaded mounting points on the bottom side of the enclosure.
Hear Every Detail
The EXO Series sets new standards in audio technology. The innovative Precision AirMotion Tweeter combined with an advanced GDC Waveguide ensures an ultra-wide sweet spot, perfect stereo imaging and a homogenous dispersion. The deep bass is precise and controlled, and this with great accuracy over the extended frequency range.
Engineered for Acoustic Excellence
With an acoustically refined design down to the last detail, the EXO 24 sets new standards in its class.
The newly developed EXO Precision AirMotion Tweeter, combined with the GDC Waveguide (Guided Directivity Control), ensures precise dispersion and a detailed stereo image. Made from ultra-lightweight, dimensionally stable polyamide, the AMT delivers lightning-fast transient response, high efficiency, and detailed high-frequency reproduction with minimal distortion. It ensures wider, more consistent dispersion, expanding the sweet spot and enhancing stereo imaging as well as spatial integration in multi-channel setups like Dolby Atmos.
The powerful 4″ woofer with a CAL diaphragm (Coated Aluminium) delivers surprisingly deep bass and transparent mids for its size. The lightweight aluminum cone, featuring a resonance-damped dust cap and an optimized magnet system, delivers highly accurate and dynamic reproduction with exceptionally low distortion.
The system is complemented by an airflow-optimized LDE enclosure (Low Diffraction Enclosure) is specifically designed for sonic excellence. The curved design with rounded edges, effectively reduces unwanted sound diffraction for a cleaner and more accurate listening experience. Enhanced rear bass reflex ports with improved aerodynamics allow for deeper low-end tuning and significantly reduced port noise.
Specifications
General information
- Dimensions (mm): 171x252x194
- Weight: 4,3 kg
- Output power per speaker: 280 W
Tweeter
- Model: Precision AirMotion Tweeter (PAMT)
- Waveguide Technology: Guided Directivity Control (GDC)
- Output power: 140 W / 1%
Woofer
- Woofer diameter: 4″
- Diaphragm material: Coated aluminum
- Woofer voice coil: Air Stream Optimized Voice Coil Design
- Output power: 140 W / 1%
Acoustics
- Frequency range (- 3 dB at 1 m full space): 54 Hz – 24 kHz
- Max. SPL (full space) > 100 Hz: 102 dB
- Max. SPL (half space) > 100 Hz: 108 dB
- Cross-over frequency: 2200 Hz
For more information and full specifications, visit the manufacturer’s website
