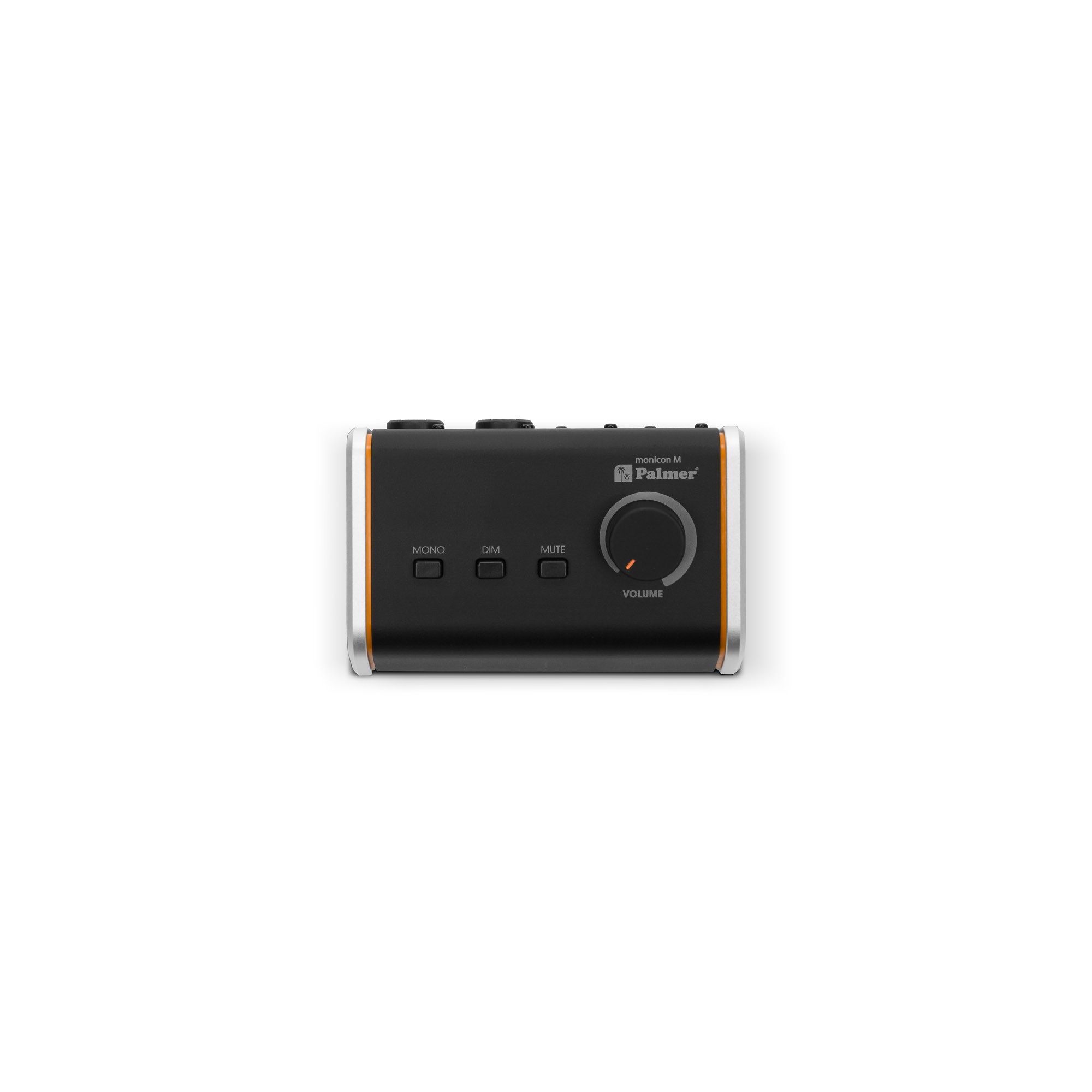

The MONICON M is a compact passive volume controller for flexible studio set-ups. It can be easily connected to audio interfaces, computers, or mobile devices, either via balanced XLR/TRS combo sockets or a 3.5 mm jack input. The output, which is either balanced via XLR or 3.5 mm jack sockets, helps supports both professional studio monitors and compact loudspeaker systems.
The large analogue volume control makes it possible to precisely control the level of volume without any loss in quality. The signal flow and monitoring situation can be adjusted quickly and intuitively using the “Mono,” “Dim,” and “Mute” buttons.
Thanks to the completely analogue signal path, the sound remains unaltered and latency-free. The MONICON M is the perfect control centre for project studios, editing suites, and multimedia workstations – wherever direct access and precise control are required.
Features
- Input: 1x Stereo (balanced XLR/TRS Combo and 3.5 mm jack)
- Output: 1x Stereo (balanced XLR and 3.5 mm jack)
- Large precision volume control
- Dedicated switches for MONO, DIM and MUTE
- Compact format for project studios and multimedia setups
- Latency-free analogue audio signal path
- Engineered in Germany
Specifications
- General
- Type: Passive
- Material: Metal, Plastic
- Frequency response (±0.2 dB, rel. Avg): 20 – 20,000 Hz
- Colour: Silver
- Inputs
- Number of balanced line inputs: 2
- Balanced Line-In connector type: XLR combo socket
- Number of unbalanced line inputs: 1
- Unbalanced Line-In connector type: 3.5 mm Jack TRS
- Line input performance
- Input impedance (balanced): 20 kΩ
- Input impedance (unbalanced): 10 kΩ
- Min. SNR (< 1% THD, 1 kHz, unity, A-weighted): 112 dB
- Outputs
- Number of unbalanced line outputs: 1
- Unbalanced line outputs connector type: 3.5 mm Jack TRS female
- Number of balanced line outputs: 2
- Balanced line outputs connector type: XLR 3-pole male
- Line output performance
- Max. output level (<1 % THD, 20 Hz - 20 kHz): 20 dBu
- Dynamic range (AES17): > 115 dB
- Mains operation
- Power supply type: External switched-mode power supply (SMPS)
- Environmental
- Ambient temperature: 0 – 40 °C
- Maximum air humidity (non-condensing): 80 %
- Dimensions & weight
- Width: 160 mm
- Height: 62 mm
- Depth: 106 mm
- Weight: 480 g
- Crosstalk: -79 dB
