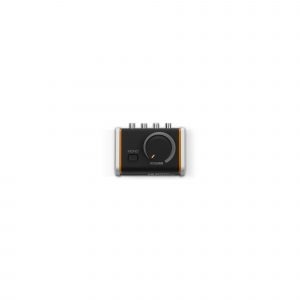

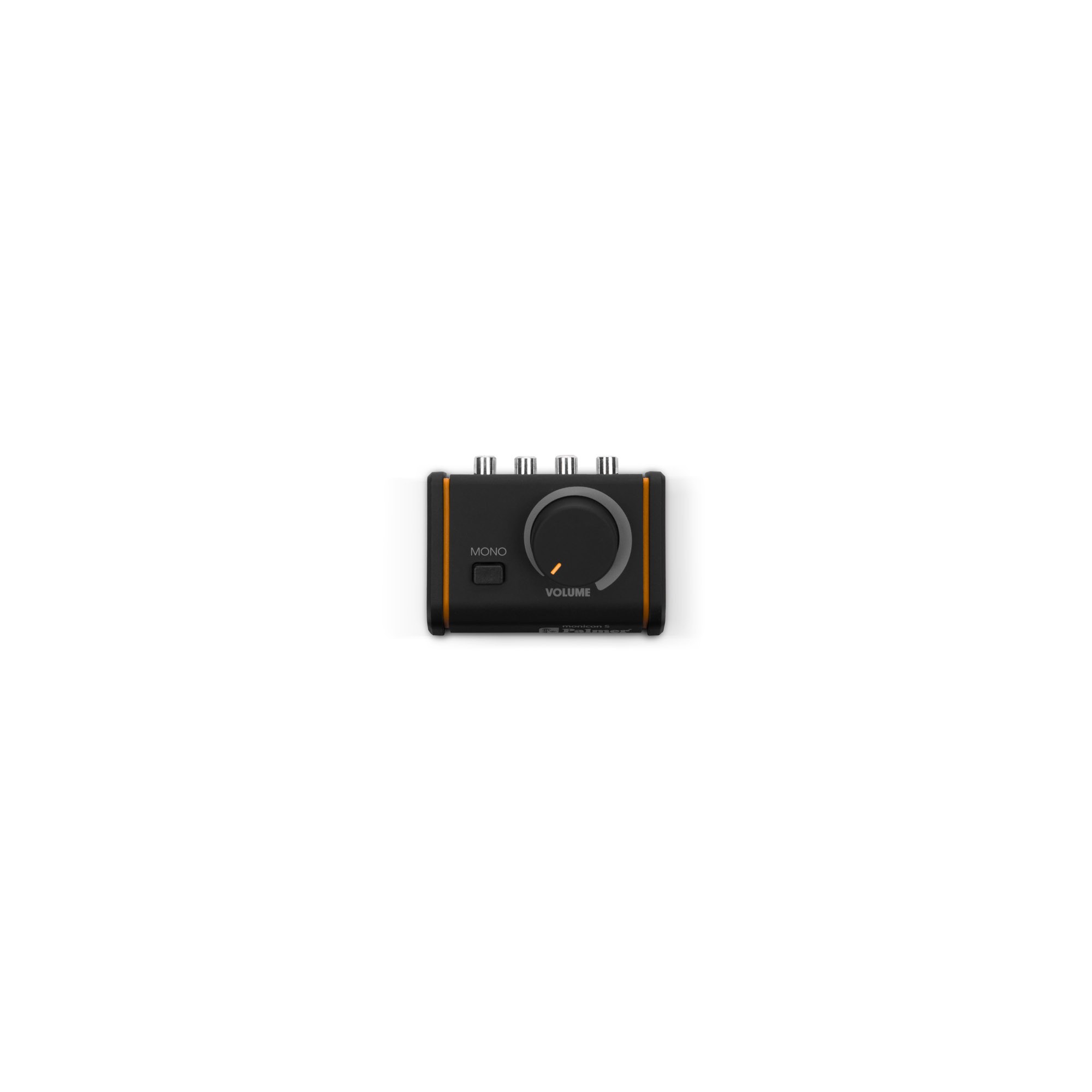

The MONICON S is an extremely compact volume controller for any set-up. Digital volume controls on laptops or audio interfaces are often imprecise or cumbersome. The MONICON S offers a precise, hands-on, and convincingly touch-responsive solution. It is easily connected between the audio interface and active speakers via RCA inputs and outputs, where it takes over the central level control.
The large analogue rotary control allows the volume to be carefully and accurately adjusted. Its completely passive design means it requires no power supply and guarantees latency-free, pristine sound.
Thanks to its robust design and straightforward operation, the MONICON S is the ideal addition for small studios or mobile set-ups where sound fidelity and direct operability are required.
Features
- Input: 1x Stereo (RCA)
- Output: 1x Stereo (RCA)
- Large precision volume control
- MONO switch to check the mono compatibility
- Ultra-compact design for space-saving integration
- latency-free analogue audio signal path
- Engineered in Germany
Specifications
- General
- Material: Plastic, Steel sheet
- Coating: Powder coated
- Frequency response (±0.2 dB, rel. Avg): 20 – 20,000 Hz
- Colour: Black
- Number of channels: 1
- Inputs
- Input signal type: Unbalanced
- Balanced Line-In connector type: 2 x RCA female (Stereo)
- Number of unbalanced line inputs: 1
- Line input performance
- Input impedance (balanced): 10 kΩ
- Min. SNR (< 1% THD, 1 kHz, unity, A-weighted): 112 dB
- Outputs
- Output signal type: Unbalanced
- Number of unbalanced line outputs: 1
- Unbalanced line outputs connector type: 2 x RCA female (Stereo)
- Line output performance
- Unbalanced output impedance (1 kHz): 600 Ω
- Environmental
- Ambient temperature: 0 – 40 °C
- Maximum air humidity (non-condensing): 80%
- Dimensions & weight
- Width: 86 mm
- Height: 39 mm
- Depth: 66 mm
- Weight: 120 g
