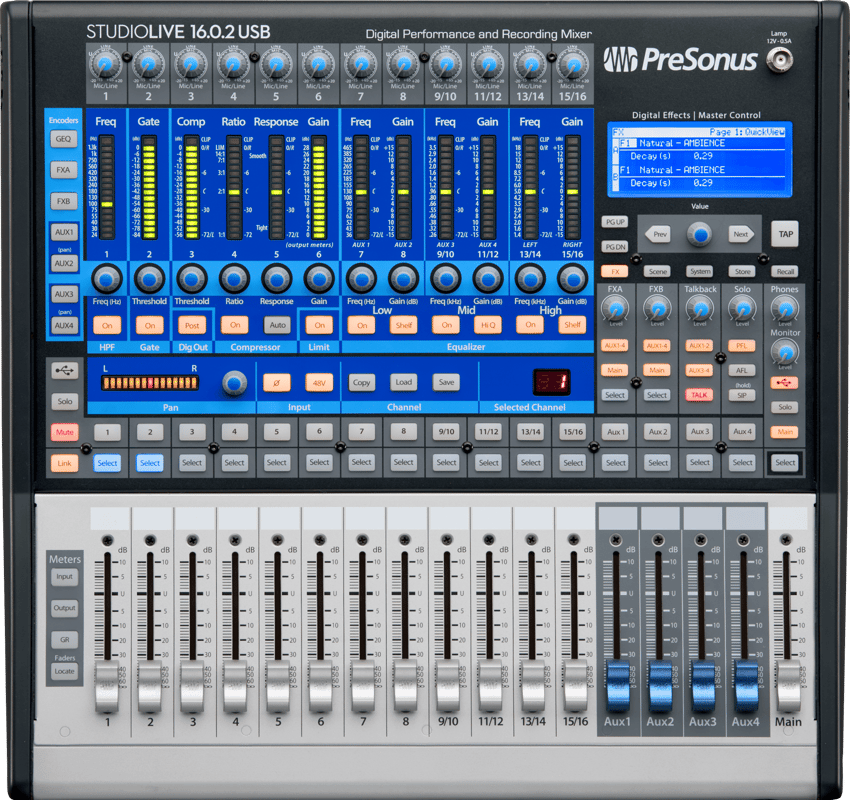

The StudioLive® 16.0.2 USB is a great choice for small churches, schools, bands, and clubs, and it’s perfect for a small studio on a budget. It features 16 channel inputs, 4 of them stereo channels, and 12 with XMAX mic preamps; a built-in 18×16 USB 2.0 interface; extensive signal processing on every channel and bus; 4 aux buses; extensive metering; Scene and setting save/recall; MIDI control; and more. Yet it’s lightweight and rack-mountable, operates much like an analog console, and delivers superb audio quality. It comes with PreSonus’ Universal Control software, Capture™ recording software, QMix®-UC aux control app, Studio One Pro perpetual license.
Features
- 8 mono and 4 stereo channel inputs with 60 mm faders (12 faders)
- 4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
- On all channels and buses: 3-band semi-parametric EQ, compressor, limiter, downward expander
- Stereo, 31-band graphic EQ on the main bus
- 18-in/16-out USB 2.0 audio interface (24-bit/44.1 kHz and 48 kHz) records all channels and main L/R mix
- MIDI I/O: control main and effects output levels, recall effects presets and Scenes, and serve as a MIDI interface
- Software library includes PreSonus® Studio One® Pro DAW and Capture™ live-recording software for Mac® and Windows® and Universal Control mixer-control software for Mac, Windows, and iPad®. QMix®-UC touch wireless aux-control software for iPhone®, iPod® touch, and Android™ are also available free.

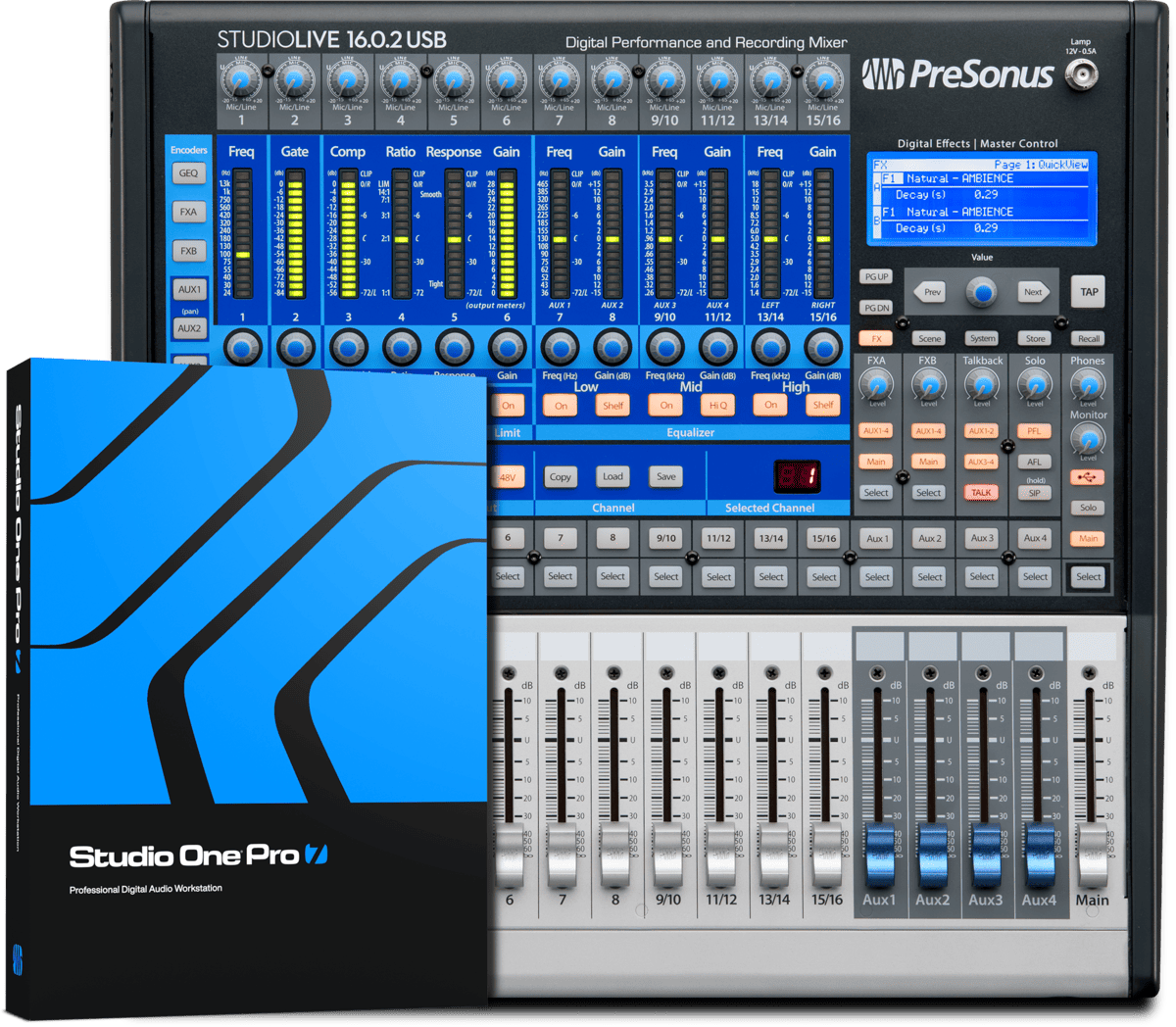

- Professional Recording Software Included – Studio One Pro License
Specifications
Electronics
- Phantom Power: +48 VDC (±2 VDC)
- Power Consumption: 100W (continuous)
- VoltageRequirements: 100-230 VAC, 50-60 Hz
Inputs
- Line Input Connection Type: 1/4″ TRS, Balanced
- Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
- Line Inputs Gain Range: -20 dB to +20 dB (± 1 dB)
- Line Inputs Impedance: 10 kΩ
- Line Inputs Maximum Level: +22 dBu (Unity Gain)
- Line Inputs Signal To Noise Ratio: 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
- Line Inputs Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
- Microphone Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
- Microphone Preamp Equivalent Input Noise: +125 dB Unweighted, +130 dB A-Weighted
- Microphone Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
- Microphone Preamp Input Impedance: 1 kΩ (Balanced)
- Microphone Preamp Maximum Input Level: +12 dBu (Unity Gain)
- Microphone Preamp Signal To Noise Ratio: -95 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
- Microphone Preamp Total Harmonic Distortion: 0.005%, +4 dBu, 20 Hz-20 kHz, Unity Gain, Unweighted (1 kHz at Unity Gain)
Miscellaneous
- Commodity Code: 8543.70.9100
- Digital Audio Internal Processing: 32-Bit, Floating Point
- Power Cable: IEC
- Supported Sample Rates: 48 kHz, 44.1 kHz
Output
- Line Outputs Connection Type: 1/4″ TRS, Balanced
- Line Outputs Maximum Output Level: +18 dBu
- Line Outputs Output Impedance: 100 Ohms
- XLR Outputs Maximum Output Level: +24 dBu
- XLR Outputs Output Impedance: 100 Ohms
Performance
- Crosstalk (Adjacent Channels): -87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
- Digital Audio Bit Depth: 24
- Digital Audio Dynamic Range: 115 dB (A-Weighted, 48 kHz)
- Digital Audio Reference Level For Zero dBFS: +18 dBu
