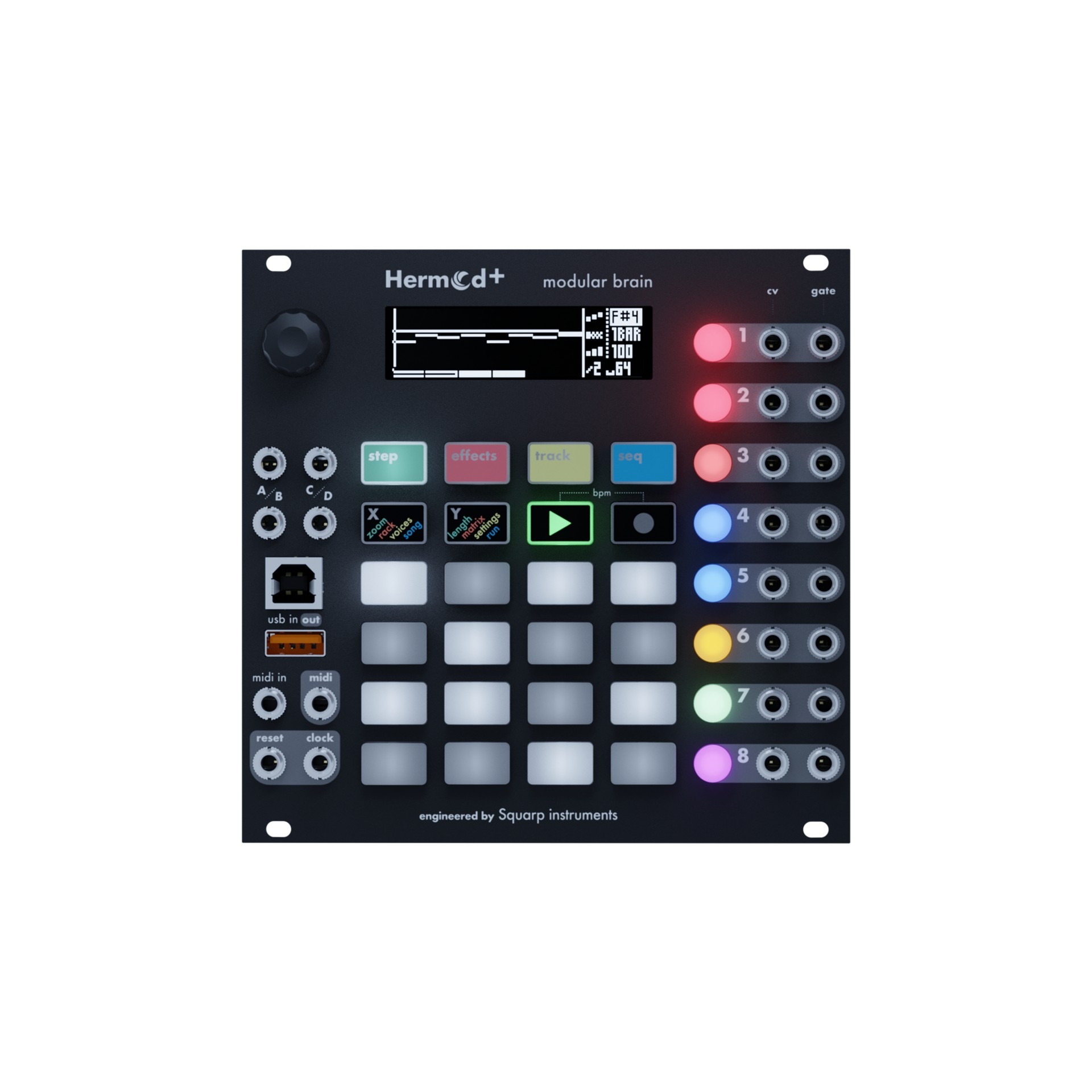

Hermod+ adds so much to your system.
Based on the established Hermod workflow and keeping the same form factor, Hermod+ offers a lot of new features, and a refined, more playful interface with extended connectivity.
Record CV/Gate, MIDI notes and modulations on 16 polyphonic tracks. Compose melodic variations across 16 patterns per track, and take advantage of the advanced step sequencer and the new effects to gain efficiency and creativity in studio and on stage.
Fluid workflow with a redesigned Step mode.
Step mode is where you can edit notes, modulations and gate events. Hermod+ offers quick ways to write melodies and rhythms. Zoom in and out to visualize and edit portions of your track precisely and break free from rigid grid sequencing.
The re–designed piano roll editor makes the vertical and horizontal scrolling easier and faster, while the new “row edit” feature allows for quick chords and drum patterns programming.
Create modulation curves by programming them directly on Hermod+ or by recording incoming signals, and send those curves via CV or MIDI to other parts of your system.
Polymorphic layouts for perfect integration
Hermod+ can adapt its voice layout to any patching scenario. Depending on your needs, any track can become a modulation output, a monophonic CV/Gate track, a polyphonic MIDI track, …
For a track of CV/Gate note + velocity + aftertouch, or for a polyphonic CV/Gate track, simply group voices using the desired layout.
Take advantage of the 8 dedicated MIDI tracks, that can record and be programmed independently from the 8 CV/Gate tracks.
Up to 4 automations for effect modulation
Each track features 4 automation lanes (MOD, MOD2, MOD3, and MOD4), allowing for step-sequenced modulation. These lanes can be routed to the ModMatrix, making effect automation effortless and highly flexible.
Experiment with dynamic effects
Up to 8 real–time effects per track with creative parameters and generative features. Hermod+ is the canvas, the paint and the brush of your setup.
Specifications
Sequencer
- Tracks : 8 CV/Gate + 8 MIDI
- Patterns : 16 per track
- Recording resolution : 96ppqn (5.2ms at 120 BPM)
- Effects resolution : 384ppqn (1.3ms at 120 BPM)
- Track length : 1/16 note to 16 bars
- Automation per pattern : 7 (4x modulations + pitchbend + aftertouch + sustain)
Projects
- Amount of projects : unlimited
- Tempo : 10 to 280 BPM
- Global transpose track : yes
- Double project architecture : yes
- Song chain length : 64 sequences
Piano roll
- Zoom min : /4 (1 step = 1/4 note = 1 beat)
- Zoom max : X8 (1 step = 1/128 note)
- Note/gate width : 1/32 (1/512 note) to 8 bars
- Maximum polyphony per step : 24
- Row edit (polyphony editing) : yes
- Note pitch : C0 to C10
- Note velocity : 0 to 127
Synchonization clock speed
- Max input rate : 1/96 = 24ppqn
- Max output rate : 1/96 = 24ppqn
- Audio synchronization from a DAW possible (sample-rate precision)
Input
- MIDI : TRS type A + USB host + USB device
- CV : 4x [-5V to +5V]
Output
- MIDI : TRS (type A) + USB host + USB device
- CV : 8x [-5V to +5V]
- GATE : 8x [0V / +5V]
- Output Standards : V/octave (Eurorack), 1.2V/octave (Buchla), Hz/V (older synths)
- Dedicated Clock port
- Dedicated Reset port for transport
Power
- Note : the use of your eurorack +5V rail is configurable with a switch on the back of Hermod+
- Consumption (using +5V rail) : -12V 20mA, +12V 20mA, +5V 600mA (add up to +500mA when attaching a controller on USB host)
- Consumption (not using +5V rail) : -12V 20mA, +12V 300mA (add up to +220mA when attaching a controller on USB host), +5V 0mA
Hardware
- Width : 26HP
- Depth : 20mm
- Weight : 285gr (0.63lbs)
- CV inputs resolution : 16-bit
- CV outputs resolution : 16-bit
- Display : OLED 58x16mm
- SD card : microSD high speed (provided)
- CPU : ARM 480MHz
For more information visit the manufacturer’s website
