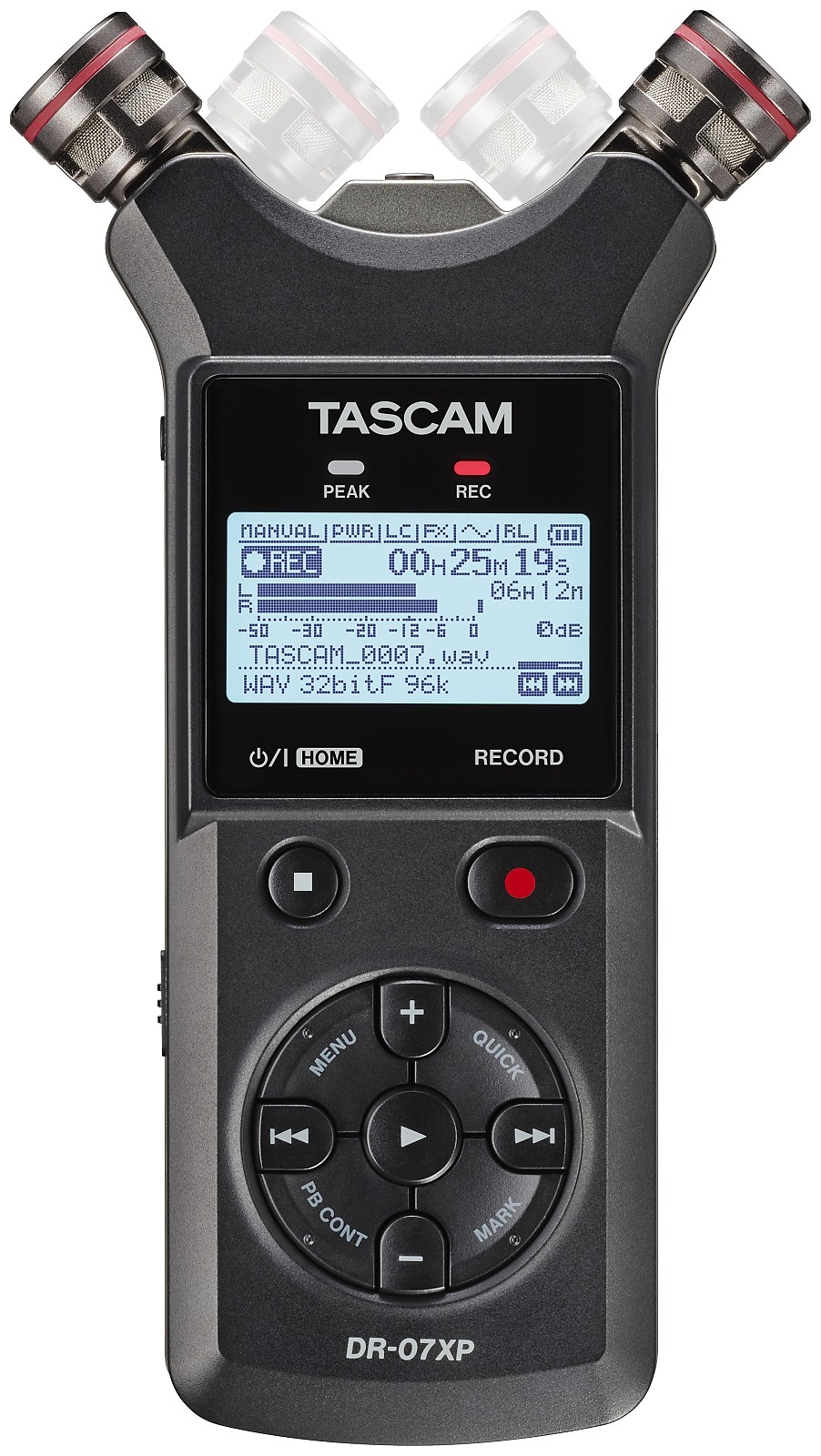

The DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation and more. With 32-bit float recording mode, you’ll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound.
With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.
Features
- 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage
- Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3
- Stereo AB/XY condenser microphones handle loud environments and sources (up to 125dB SPL)
- 2-in/2-out USB-C audio interface for recording directly to your computer
- Up to 17.5 hours operation with 2 x AA alkaline batteries
Specifications
Recorder specifications
- Recording media/file systems: microSD cards, microSDHC cards, microSDXC cards (up to 512 GB)
- Recording/playback formats:
- WAV (BWF)
- Sampling frequency: 44.1 kHz / 48 kHz / 96 kHz
- Quantization bit depth: 16-bit / 24-bit / 32-bit float
- MP3
- Sampling frequency: 44.1 kHz / 48 kHz
- Quantization bit depth: 132 / 64 / 96 / 128 / 192 / 256 / 320 kbps
- WAV (BWF)
- Maximum number of input channels: 2
- Maximum number of recordable tracks: 2
Analog audio input/output ratings
- MIC/EXT IN jack (can provide plug-in power)
- Connector: 3.5mm (1/8″) stereo mini jack
- Input Impedance:
- 18 kΩ or more (when plug-in power is turned off)
- 2 kΩ or more (when plug-in power is turned on)
- Nominal input level: – 20 dBV
- Maximum input level: -4 dBV
- PHONES/LINE OUT jack
- Connector: 3.5mm (1/8″) stereo mini jack
- Output Impedance: 12 Ω
- Nominal output level: – 14 dBV (10kΩ loaded)
- Maximum output level: +2 dBV (10kΩ loaded)
- Maximum output: 20 mW + 20 mW (32 Ω load)
- Working impedance: 16 – 250Ω
- Built-in Speaker
- Output: 0.3W (monaural)
USB Audio
- Connector: USB Type-C
- Format:
- USB 2.0 High Speed Mass Storage Class
- USB 1.1 Full Speed Audio Class
For full specifications & more information visit the manufacturer’s website
