The IF-ST2110 is an expansion card for Tascam Sonicview mixing consoles which allows 64 audio channels to be transferred over an AV-over-IP network. It provides full support for the SMPTE ST 2110 AV networking standard with redundancy in accordance with SMPTE ST 2022-07 and supports SMPTE ST 2110-30/31, AES67, NMOS and SAP.
Audio Transmission via 64 Inputs and 64 Outputs
The IF-ST2110 enables the Sonicview mixing console to transmit up to 64 audio channels via the ST-2110 network (48 kHz). At a sampling rate of 96 kHz, the number of available inputs and outputs is halved to 32.

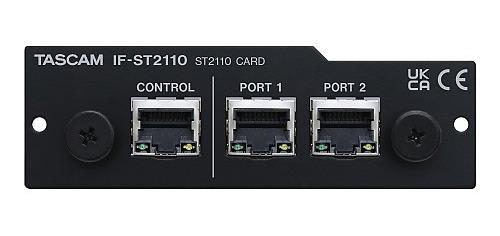

Two Media Ports and Independent Control Port
Two media ports are provided for audio streaming, including redundancy in accordance with SMTPE ST 2022-7. The independent control port allows access to the web interface for setup, modification and monitoring of connections.
The use of a dedicated IF-ST2110 processing board ensures system reliability and stability.
Convenient Web Interface
The Tascam IF-ST2110 comes with a built-in clear, well-organised web interface for easy configuration and monitoring using a web browser.
Klick on the images of the different screens to enlarge.
Dante Is Still Available
Even with the IF-ST2110 installed, your Sonicview can still transfer audio via Dante thanks to the built-in Dante interface. This gives you the flexibility to choose between several audio-over-IP protocols as required, which is a significant advantage.
Easy To Install
Sonicview mixing consoles have two expansion slots. By installing the IF-ST2110 in a Tascam Sonicview 24 or Sonicview 16, these consoles can be easily integrated into professional AV environments that use the SMPTE ST 2110 protocol, such as in the broadcast sector.
Only one IF-ST2110 can be installed per Sonicview 16 or Sonicview 24.
Features
- Compliant with ST 2110-30/31 and AES67 standards
- Audio transmission via 64 inputs / 64 outputs at 48 kHz or 32 inputs / 32 outputs at 96 kHz
- Supports redundancy (ST 2022-7)
- Equipped with independent ports for media streams and control
- Two media ports (PORT 1 / PORT 2)
- One control port (CONTROL)
- Supports NMOS IS-04 (discovery and registration of media nodes), NMOS IS-05 (connection management of media nodes) and SAP (Session Announcement Protocol)
- Web interface for control including point-to-point connections
For full specifications & more information visit the manufacturer’s website
