A compact analogue mixer for background music and announcements in up to three zones

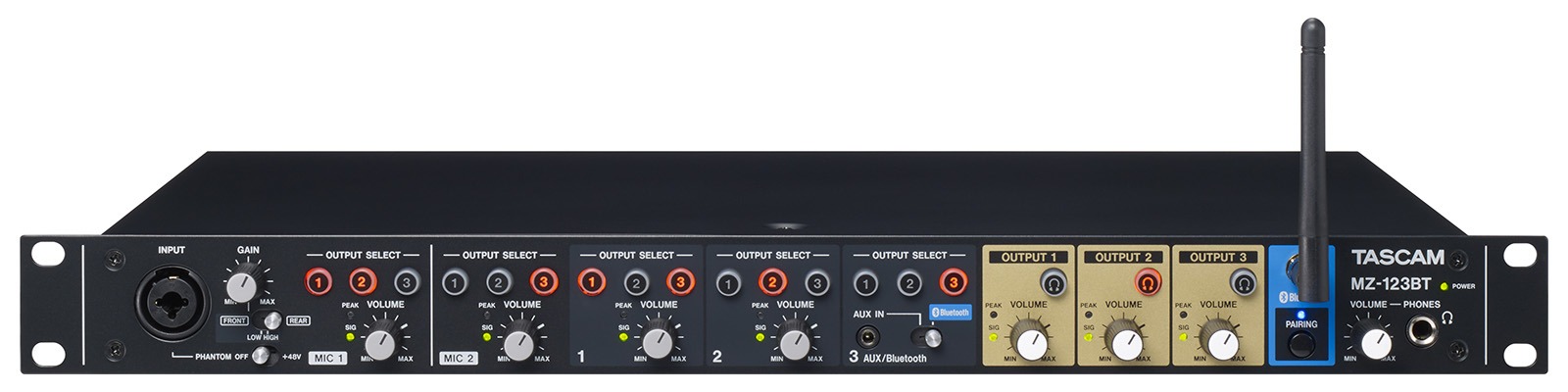

The Tascam MZ-123BT is a compact 1U multi-channel, multi-zone audio mixer for professional installation. It provides versatile routing, mixing and distribution of up to three channels of music and announcements for a wide range of commercial applications, including retail, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities. Featuring a simple, intuitive layout for ease of operation, the Bluetooth-enabled MZ-123BT comes equipped with two versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging.
Features
- Slim rackmount mixer that can flexibly assign background music and mic announcements to three different output zones
- Built-in Bluetooth receiver for wireless audio playback from smartphones or tablets
- Bluetooth antenna installed on the front panel ensures a stable wireless connection within the specified range
- Three stereo line inputs
- Two RCA unbalanced line inputs on rear panel
- Bluetooth/Aux input on front panel
- Gain controls on rear panel
- Two mic inputs for announcements or moderation
- Connection via Euroblock connectors on the rear panel
- Mic 1 can also be connected via the front-panel XLR/TRS combo connector (input level switchable HIGH/LOW)
- Talkover function automatically lowers background music volume according to mic volume (with rear-panel controls for threshold, time and on/off)
- PAD, high-pass filter and 48-volt phantom power on each mic input (switchable on/off on the rear panel)
- Rear-panel controls for gain and three-band EQ
- Level controls and zone selection buttons on each mic and stereo line input
- Signal and peak indicators on each mic and stereo line input
- Three zone outputs with level controls, signal and peak indicators and monitor selection buttons
- Headphones output with level control for monitoring the zone outputs
- Compact 1U rackmount size
For full specifications & more information visit the manufacturer’s website
