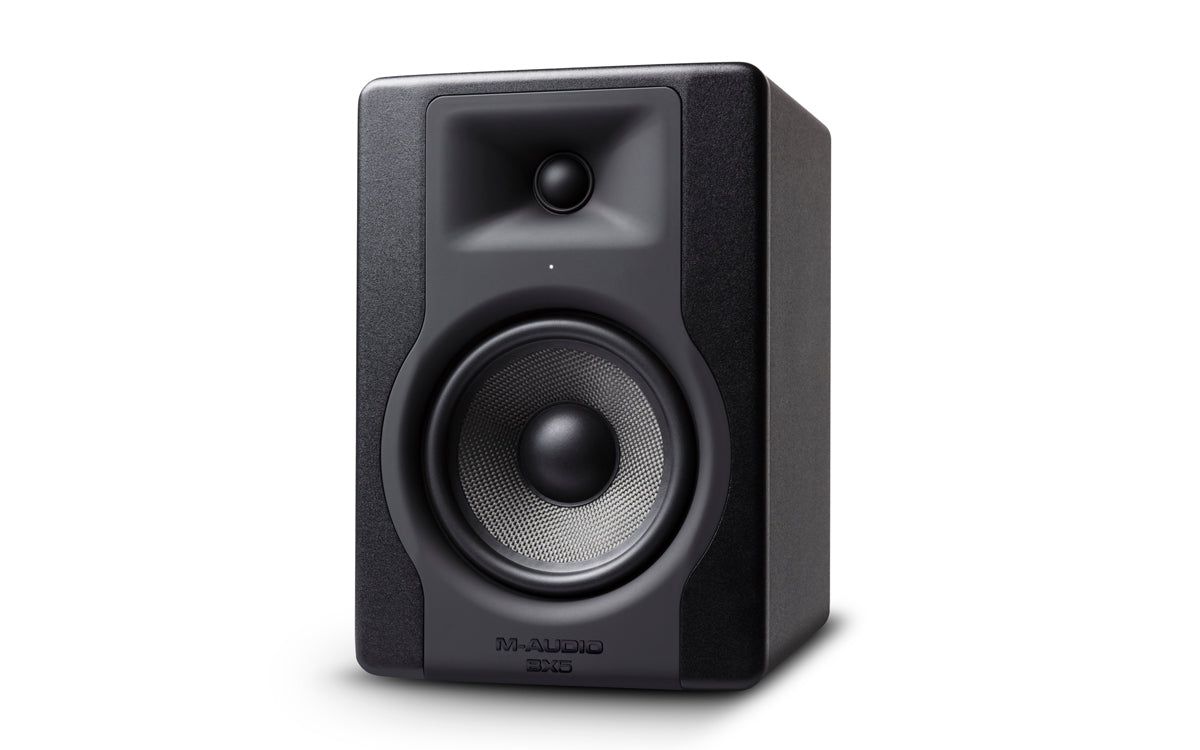

Introducing M-Audio’s BX5 D3 monitors—the return of a studio icon and the successor to the industry-renowned BX D2 monitors. Trusted by recording/mix engineers and composers globally, M-Audio’s BX monitors guarantee absolute surgical precision and repeatable engineering excellence.

Listen with confidence:

With M-Audio’s BX5 D3 studio reference monitors, you’ll hear everything in lifelike detail, so your mixes and recordings will sound their best!

Monitor Performance Starts with Driver Excellence

A monitor’s drivers are the heart and soul of its performance. Driving the low-end and midrange, BX5-D3’s 5-inch military-grade Kevlar® woofers are rigid and lightweight, delivering outstanding transient response whist negating unwanted “cone breakup.” BX5-D3’s treated silk dome tweeter provides the perfect combination of low mass and the absence of audible resonances that plague conventional tweeters. Together, the BX drivers deliver critical detail, nuance and dynamic accuracy, so your mixes have the veracity and transparency you demand.

Features:

• Bi-amplified design with 100 watts (60 LF, 40 HF) for powerful, accurate sound
• 5” Kevlar low-frequency driver with high-temp voice coil and damped rubber surround
• 1” natural silk dome tweeter delivers superb transient details
• New computer-optimized tweeter waveguide for precise imaging
• Acoustic Space Control to fine-tune low-end response to your room
• Optimized rear port for extended low-frequency response
• XLR balanced and 1/4” balanced/unbalanced inputs for connecting audio interfaces, mixers, synthesizers DJ gear, and more
• Volume control enables you to dial in the perfect monitor playback level
• Ultra-wide range 52-35kHz frequency response covers full musical spectrum
• Front panel LED shines brightly when speaker is positioned at ideal monitor angle

Specifications:

• Type: 2-way near-field studio reference monitors
• Low Freq. Driver: 5 inch (127mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded
• High Freq. Driver: 1 inch (25mm) magnetically shielded natural silk dome
• Frequency Response: 52Hz – 35kHz
• Crossover Frequency: 2.0kHz
• Low Freq. Amplifier Power: 65W
• High Freq. Amplifier Power: 55W
• Maximum Peak: 105dB
• Input Sensitivity: 85mV pink noise input produces 96dBA output SPL at 1
• Input Connectors:
• 1x XLR balanced input connector
• 1x TRS balanced/unbalanced input connector
• Input Impedance: 10kΩ balanced, 20kΩ unbalanced
• Polarity: Positive signal at + input produce outward LF cone displacement
• Protection: RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse
• Power Requirements: Factory-programmed for 115V ~50/60Hz, 230V ~50/60Hz, or 100V ~50/60Hz
• Cabinet: Vinyl-laminated high-acoustic-efficiency MDF
• Dimension: (height x width x depth):
• 10in. x 6.9in. x 7.8in
• 254mm x 176mm x 197mm
• Weight (without packing): 12.3 lbs., 5.6kg

More info: BX5 D3
