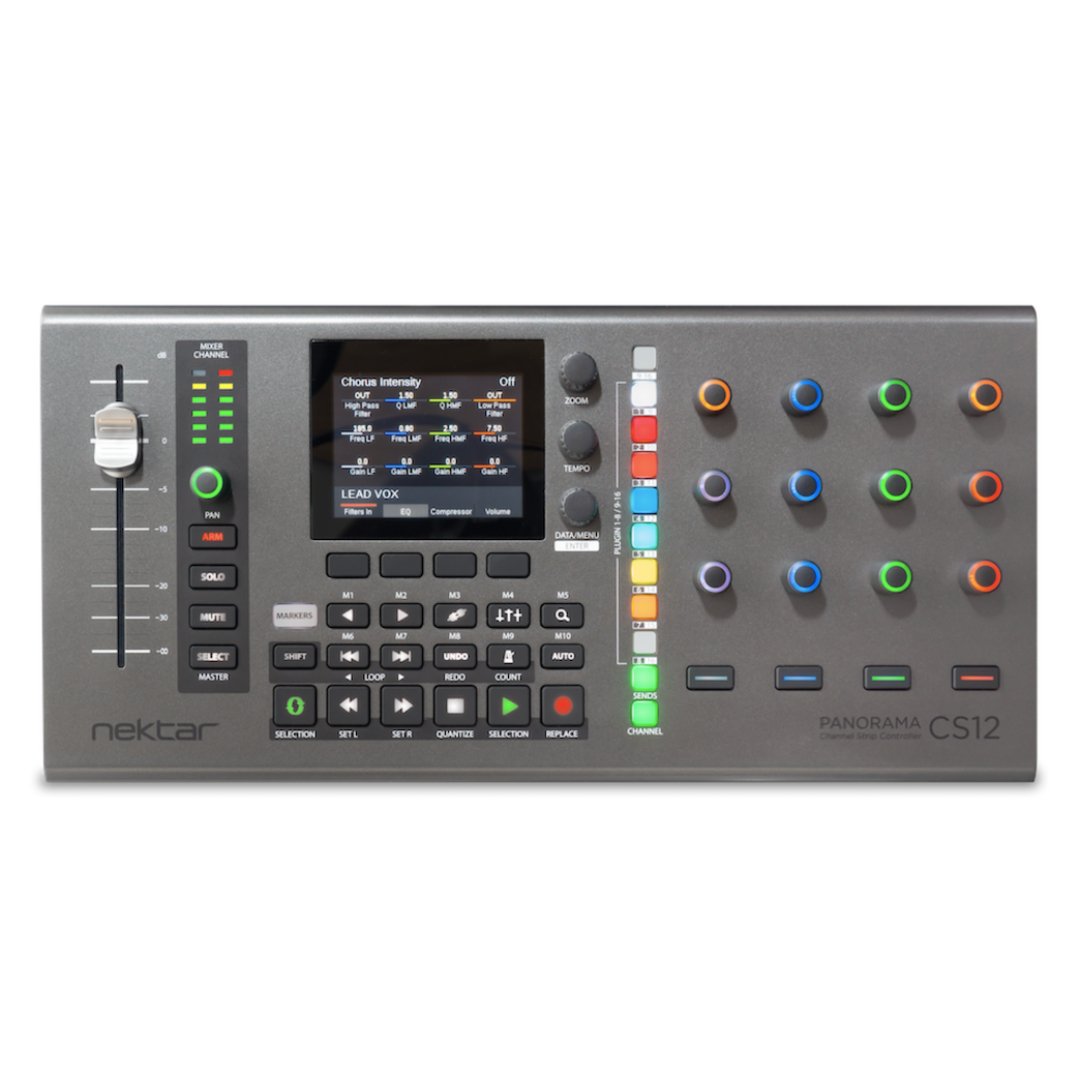

Panorama CS12 is designed to work with Nektar DAW integration for Logic Pro and Steinberg’s Cubase & Nuendo. When used with a compatible DAW, Panorama CS12 gives hands-on control of the DAWs mixer, plugins, timeline navigation and more.
Highlights:
- Long-throw 100mm motorized fader .
- Endless (360) potentiometer with RGB illumination.
- 6-segment LED meter for real-time display of channel volume.
- Dedicated buttons for channel Arm, Mute, Solo and Select parameter control.
- Color TFT display used for plugin list display and control assignments. In the image an SSL EQ is controlled.
- 3 display encoders. The tempo encoder can be assigned other functions such as vertical zoom or timeline control.
- buttons below the display are used for parameter control or page selection.
- 18 function buttons used as indicated with additional secondary functions accessible using Shift.
- 11 RGB illuminated buttons for selection of plugin bank 9-16, plugin slots 1-8, sends and channel menus.
- 12 endless (360) potentiometers with RGB illumination for plugin and DAW control
- 4 buttons RGB illuminated parameter control buttons.
FEATURES & SPECIFICATONS
PANORAMA CS12
- 1 100mm ALPS motorized fader.
- 4 RGB LED control buttons.
- 6 segment LED meter.
- 3.5″ TFT color display.
- 4 display buttons.
- 4 channel strip LED buttons.
- 18 Function and navigation LED buttons
- 2 encoders for zoom and tempo.
- 1 encoder with push button for Data/Menu
- 13 endless or 360 potentiometers with RGB LED illumination.
- 11 RGB LED buttons for selection of channel strip sections.
- 1/4″ TRS Footswitch socket for basic handsfree DAW control.
- Connect up to two foot switches using TRS to TS Y-cable splitter.
SYSTEM REQUIREMENTS
- USB class compliant, no driver needed.
- Nektar ControlCore installation required. Unit doesn’t operate on its own.
- A Nektar account for registration and download of support files.
- USB Power Requirement: 500 mA minimum, connect to a USB high power port recommended.
- MacOS: 11.5 or later.
- Windows: 10 or later
- Logic Pro: 10.7.8 or later.
- Cubase: 13.0.51 / 14.0.10 or later
DIMENSIONS & WEIGHT
- 39 cm (L) x 18,5 cm (D) x 6.5 cm (H), 0,49 kgs
IN THE BOX
- Panorama CS12
- Quickstart guide and functional overview. All other documentation is part of the download package.
- USB A to C cable.
For more information visit the manufacturer’s website
