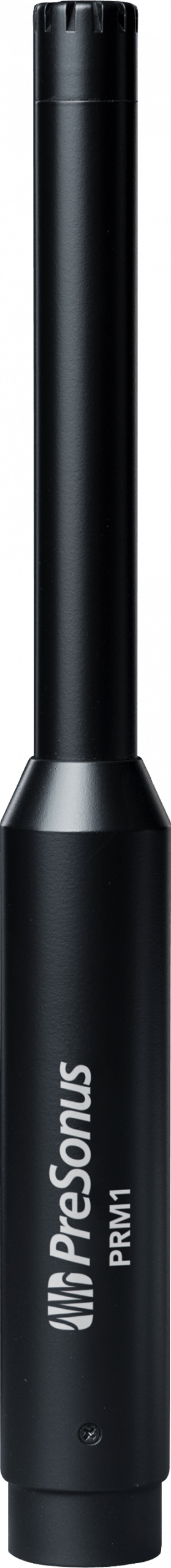

The PRM1 is a special type of condenser microphone that provides an accurate reproduction of a room’s sound characteristics for use with audio-analysis tools such as real-time analyzers (RTAs) and spectrographs. It has an omnidirectional polar pattern and exhibits linear frequency response between 20 Hz and 20 kHz, so it won’t color the sound. With this mic and PreSonus® UC Surface multi-touch mixer-control software with Smaart Measurement Technology™, PreSonus StudioLive digital mixer owners can have a powerful and affordable audio-analysis and correction system.
Features
- ¼-inch, pre-polarized electret-condenser capsule
- Linear frequency response between 20 Hz and 20 kHz
- Omnidirectional polar pattern
- All-metal chassis
- Comes with a clip, foam windscreen, and hard case
Specifications
- Output Impedance: 200Ω
- Phantom Power Requierments: 9 – 52V
- Power Consumption: 2 mA
- Microphone Element: Pressure, FET Preamplifier
- Microphone Types: Back-Electret Condenser
- Dynamic Range: 106 dB (1 kΩ Load)
- Maximum SPL: 132 dB SPL (THD ≤ 1%, 1 kHz) (1 kΩ Load)
- Microphone Frequency Response: 20 Hz to 20 kHz
- Microphone Impedance: 1000Ω
- Microphone Sensitivity: 37 dB/Pa (14 mV/Pa) 1 Pa=94 dB SPL (at 1 kHz Open-Circuit Voltage)
- Polar Patern: Omnidirectional
