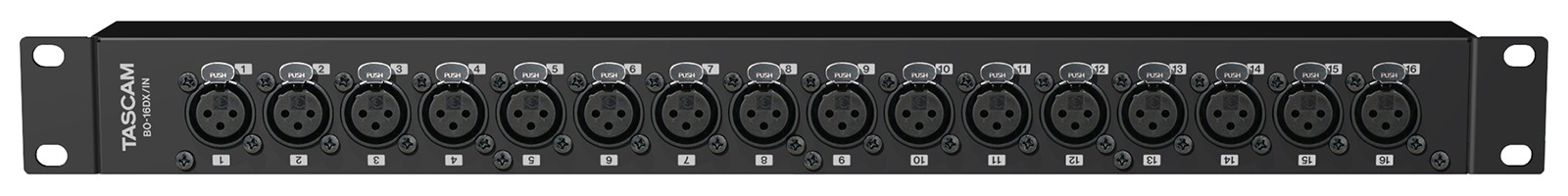

The TASCAM BO-16DX/IN is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR Inputs are internally bridged to dual D-Sub output connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.
Features
- 16 XLR input connectors on the front panel
- Dual D-Sub output connectors compliant with AES59-2012 on the rear panel
- Multiple rackmounting options
- Short unit depth allows free layout in the rack
- 1U Rackmount size
Specifications
- Front connectors: XLR 3-31 × 16 (1: GND, 2: HOT, 3: COLD)
- Rear connectors: D-sub 25pin female × 2
- Rear attachment screws: No.4-40 UNC (inch-type) × 4
- Dimensions: 482.6 × 44.1 × 54.5 mm
- Weight: 0.9 kg
- Included items: Main unit × 1, Rackmount screw kit x 1, Owner’s Manual including warranty
For more information visit the manufacturer’s website
