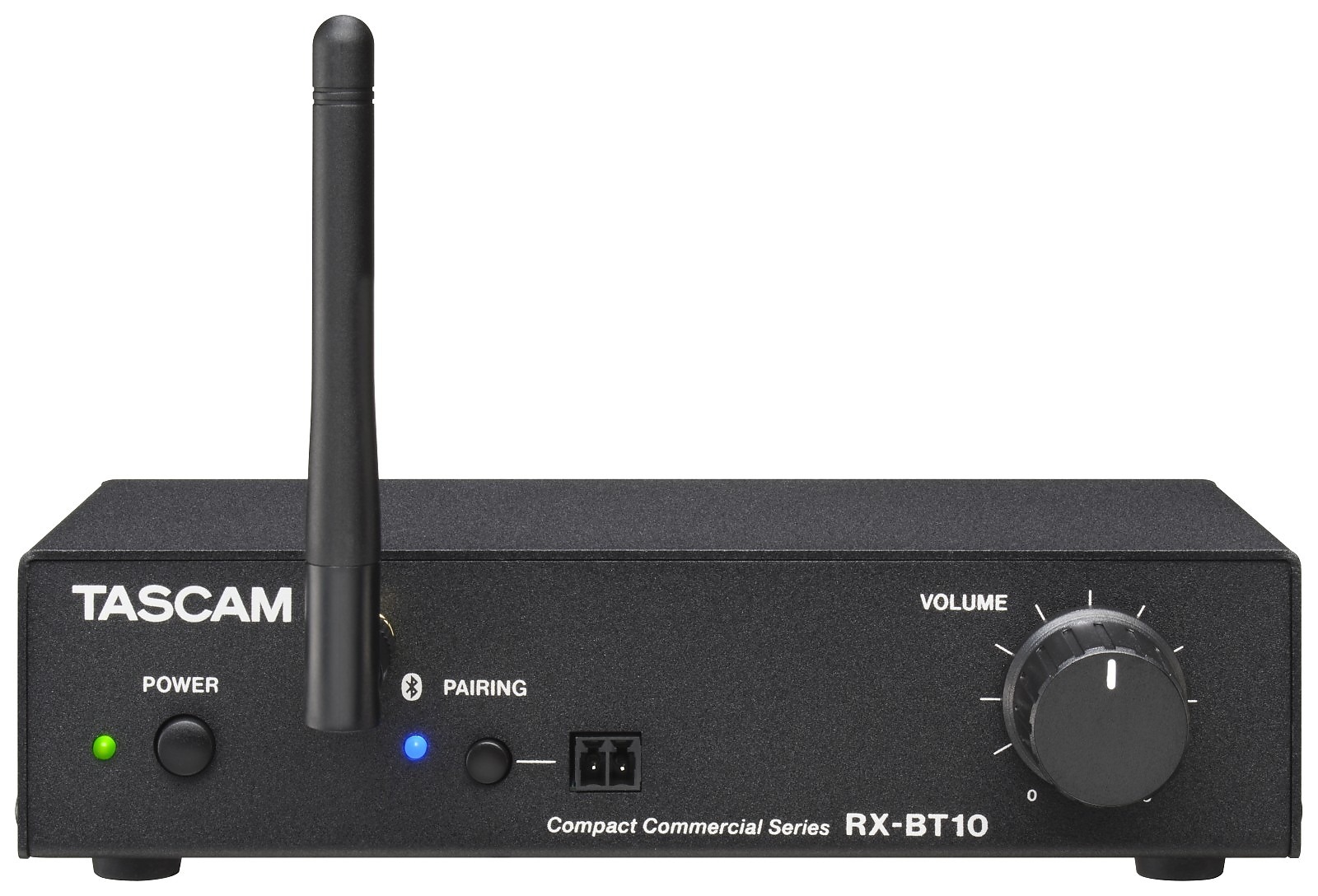

The Tascam RX-BT10 is the professional solution for integrating Bluetooth® audio into any audio installation. With Bluetooth 5.1 Class 1, both balanced and unbalanced outputs, an extendable antenna, and the option to connect a remote pairing button, the RX-BT10 delivers versatility and reliable performance in spaces ranging from small rooms to large venues.
Features
- Makes it easy to integrate smartphones, tablets and other Bluetooth devices with existing audio systems
- Bluetooth 5.1 for stable connections over long distances
- Unique Bluetooth ID for each device allows multiple RX-BT10 units to be used in one installation
- Stores pairing information for up to 8 devices
- Up to 3 devices can be connected at the same time
- Detachable antenna can be extended up to 20 metres for optimum reception
- Extendable pairing button
- Balanced and unbalanced audio outputs (XLR, RCA)
- Output level control on the front
- Audio output switchable between stereo and mono
- Compact, rugged design
- Mounting brackets included
- Optional AK-RS1 allows two units to be installed side by side in a rack
Specifications
Bluetooth
- Version: 45662
- Output class: 1 (approx. 100 m unobstructed transmission range*)
- Supported profiles: A2DP, AVRCP
- Supported codecs: SBC, AAC
Analogue audio outputs
- Line output (unbalanced): RCA connectors
- Maximum output level: +6 dBV
- Nominal output level: −10 dBV
- Output impedance: ≤100 Ω
- Line output (balanced): XLR female connectors
- Maximum output level: +14 dBu
- Nominal output level: −2 dBu
- Output impedance: ≤200 Ω
Audio performance
- Frequency response: 20 Hz – 20 kHz, +0.5 dB / –1 dB
- Distortion (THD+N): ≤0.04 % (1 kHz, max. output level)
- Signal-to-noise ratio: ≥90 dB (1 kHz, 22 kHz LPF, A-weighted)
- Channel separation: ≥100 dB
Power supply and other specifications
- Power supply: Dedicated AC adapter (Tascam PS-M1524)
- Input voltage: AC 100–240 V (50–60 Hz)
- Output voltage: DC 15 V
- Output current: 2.4 A
- Power consumption: 1.7 W
- Dimensions (W × H × D): 171 mm × 45 mm × 73 mm (excluding protrusions)
- Weight: 530 g
- Permissible operating temperature range: 0–40 °C
- Permissible operating humidity range: 5–85 % (without condensation)
- Included accessories: AC adapter (TASCAM PS-M1524), Bluetooth antenna, Euroblock plug, installation bracket kit, safety guide, TASCAM ID registration guide
For more information visit the manufacturer’s website
