The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.

The S2V’s compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.

The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.

With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.

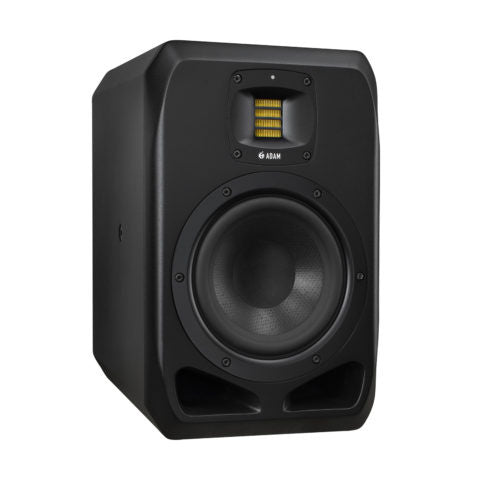

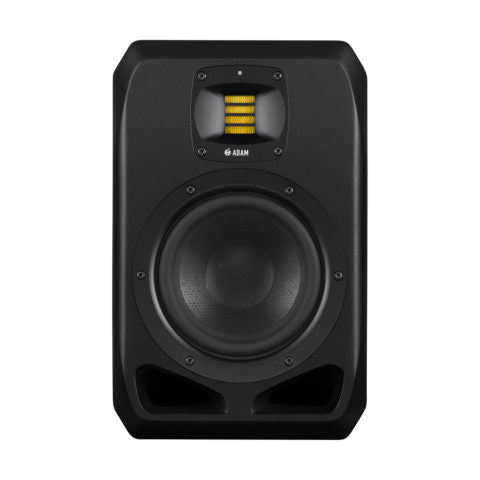

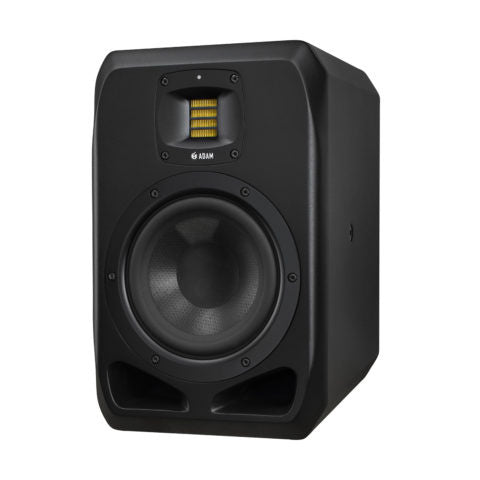

Active 2-Way Near Field Monitor

• 7" Woofer
• 1" S-ART tweeter with HPS waveguide
• Amplifier power: 300 W woofer, 50 W tweeter
• Frequency range: 35 - 50,000 Hz
• Maximum level: 120 dB (pair, 1 m)
• Integrated DSP processor
• Adjustable input sensitivity
• Room correction (Parametric EQ, High-Shelf EQ, Low-Shelf EQ, Preset Memory)

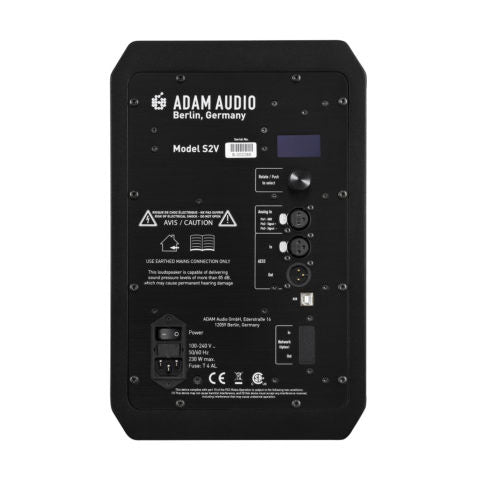

• Analogue XLR input
• Digital AES3 input and output
• USB port for software upgrades and computerised operation
• Built-in power supply 100 - 240 V
• Dimensions (H x W x D): 346 x 222 x 338 mm
• Weight: 11 kg
• Price per unit
