Compact, low-noise Eurorack power supply with stable and reliable voltage.
The Aircraft Designs DC power supply delivers +12V / 2000mA and -12V / 1500mA with exceptional 1% voltage stability under full load. Powered by 24V DC (compatible with 20V–28V), it ensures clean, steady power for the most demanding modular systems.

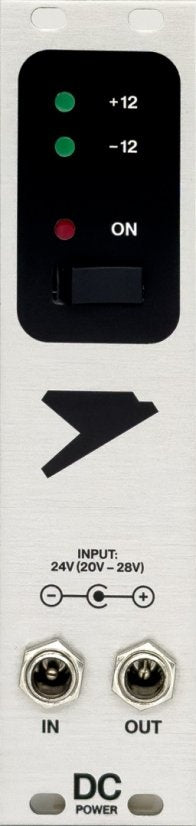

Built-in LED indicators monitor the +12V and -12V rails for real-time voltage status and short-circuit protection. The On/Off switch with red LED clearly shows when the unit is active.
Convenient IN/OUT terminals enable daisy-chaining to other cases or modules, while a dedicated DC-DC output supports system expansion.
Recommendation: Use only certified 24V DC adapters recommended by Aircraft Designs for optimal performance and reliability. Third-party adapters may work but results are not guaranteed.
Key Features
-
Compact 6 HP size, 35 mm deep
-
Module does not draw current
-
+12V / 2000mA and -12V / 1500mA output with 1% voltage stability
-
Powered by 24V DC (20V–28V compatible)
-
LED indicators for voltage rails and short circuit protection
-
On/Off switch with status LED
-
IN/OUT terminals for daisy chaining
-
Dedicated DC-DC output for expansion
Technical Specifications
-
Dimensions: 6 HP, 35 mm deep
-
Current Draw: Module does not draw current
Applications
-
Provides clean, stable power for Eurorack modular systems
-
Ideal for expanding power capacity in complex setups
-
Enables safe and reliable modular operation
-
Supports system scalability via DC-DC output and daisy-chaining
