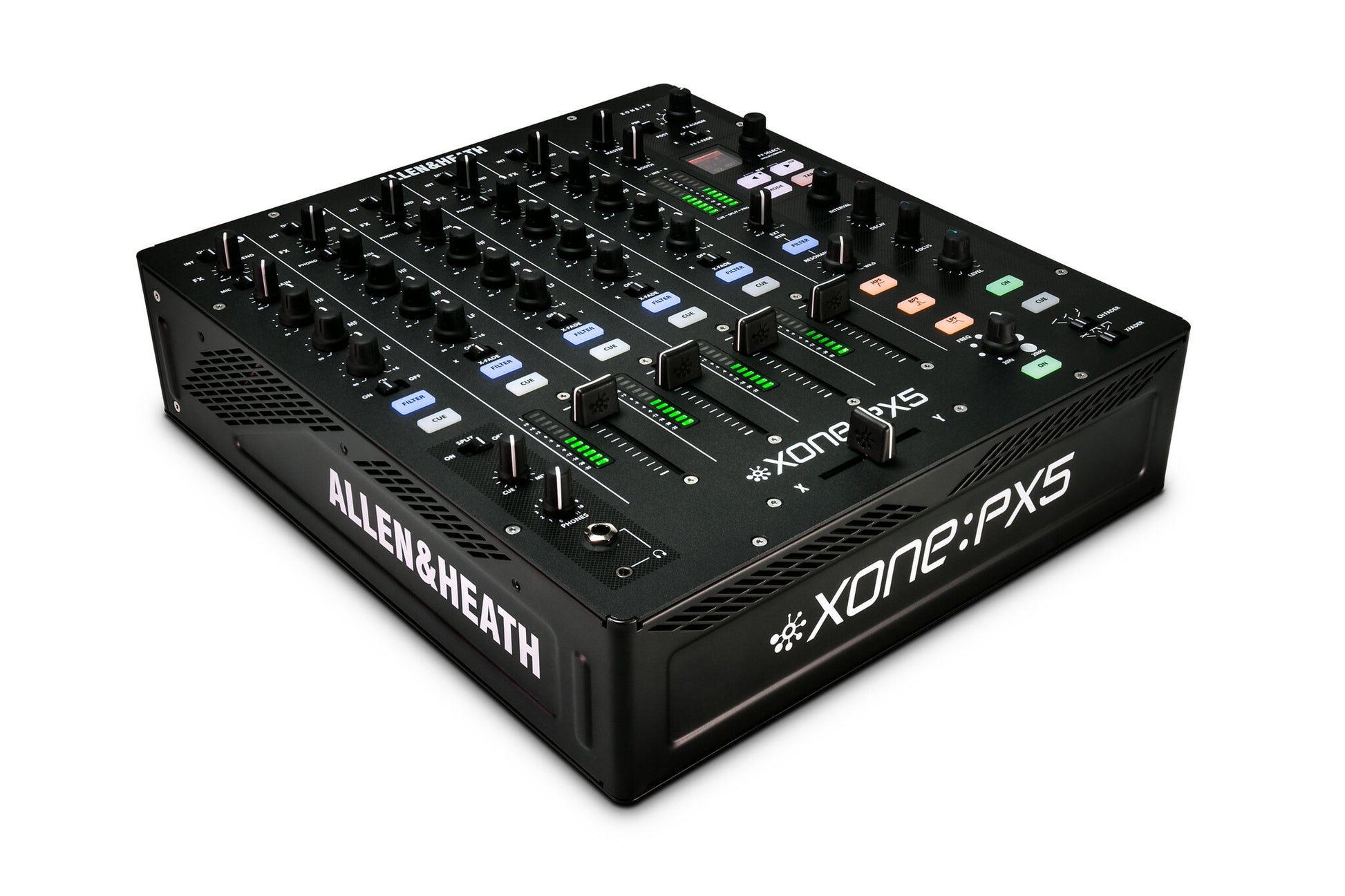

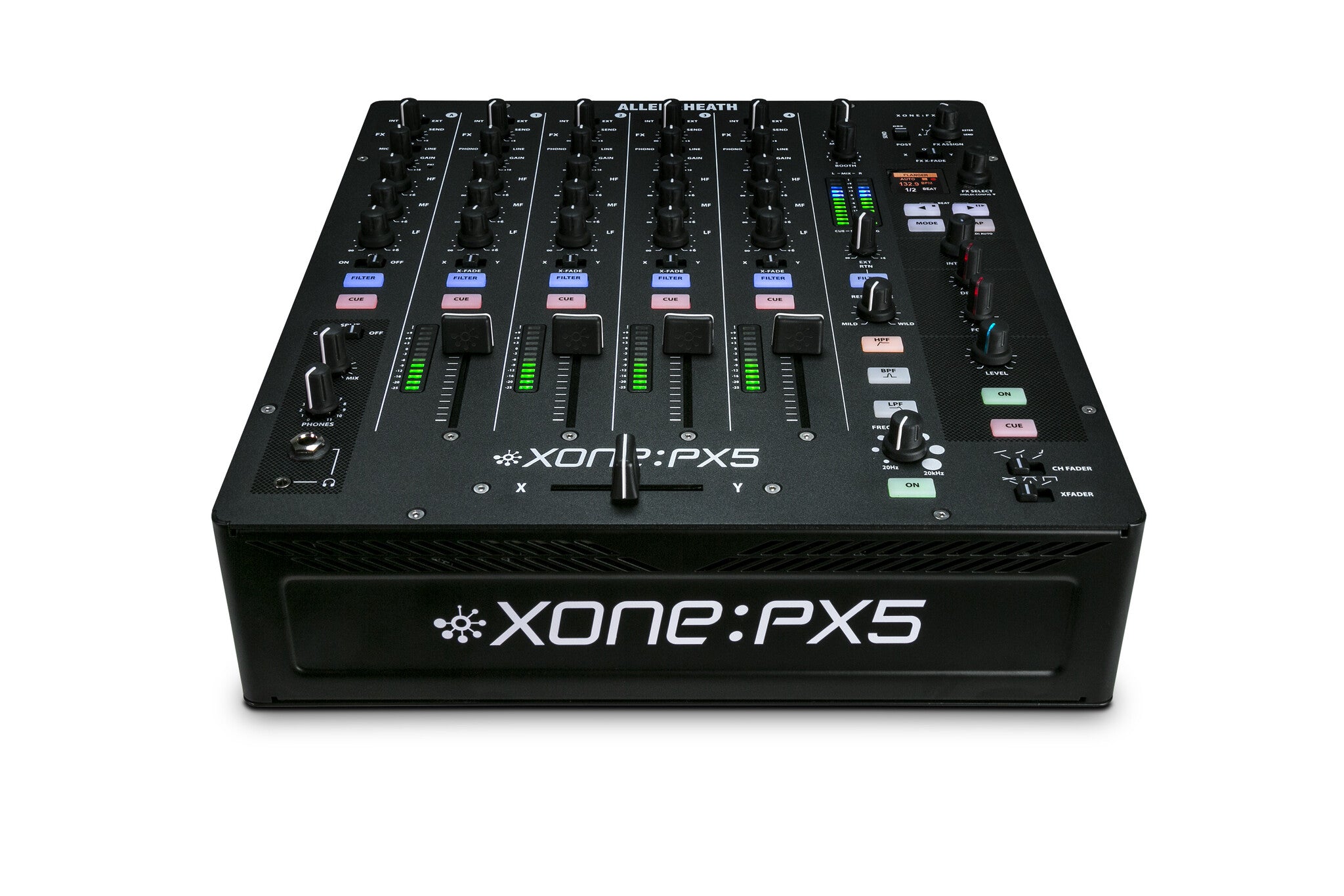

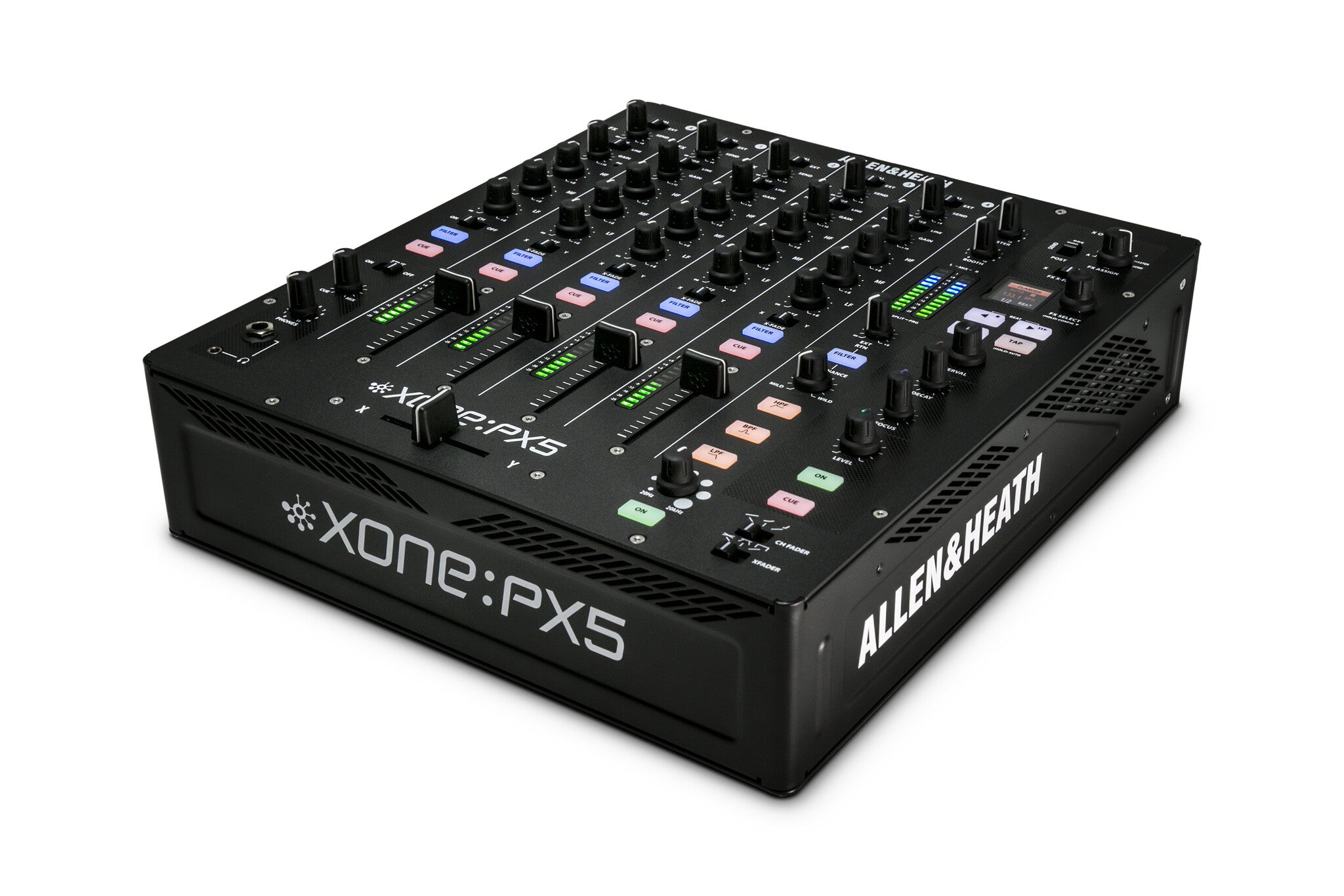

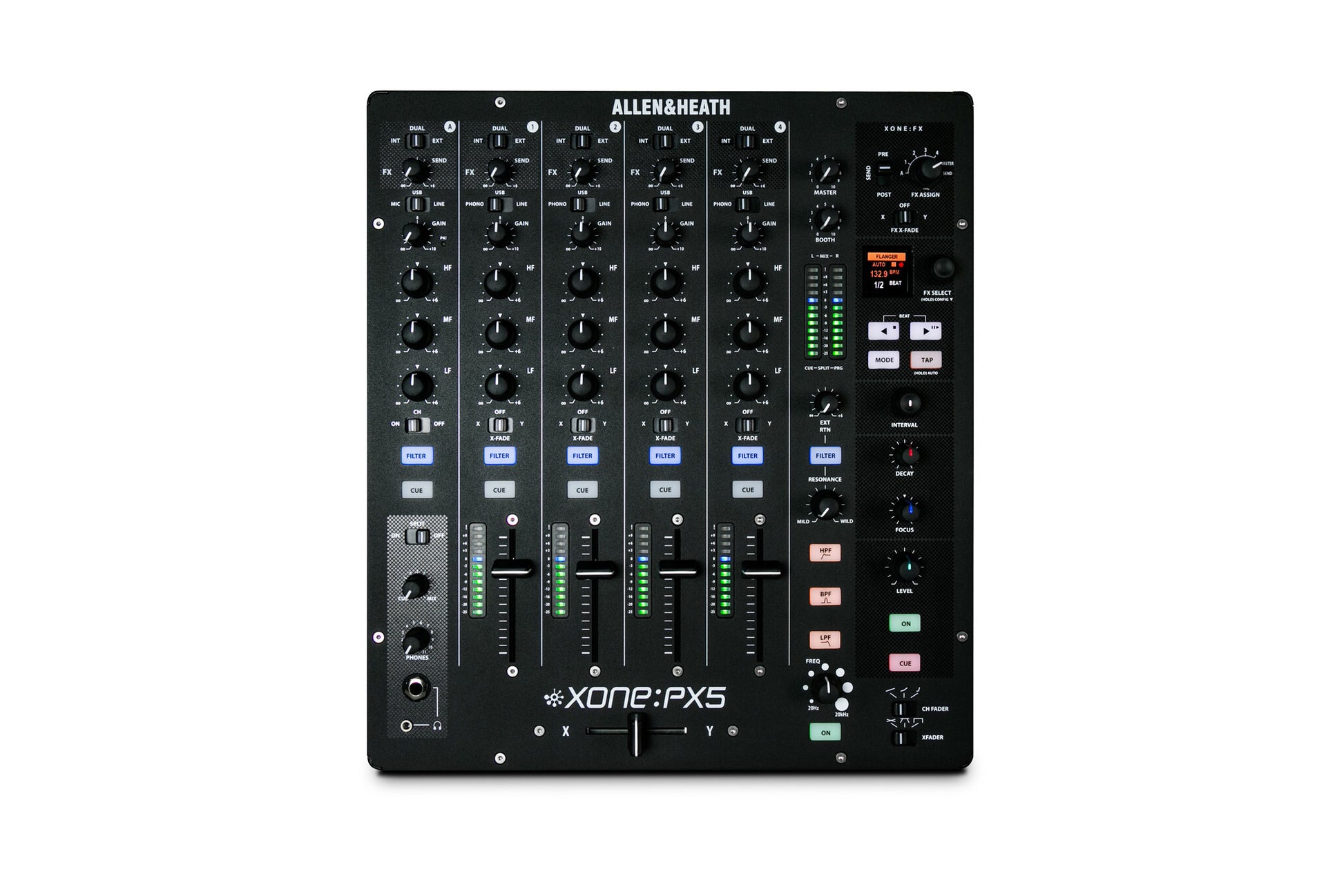

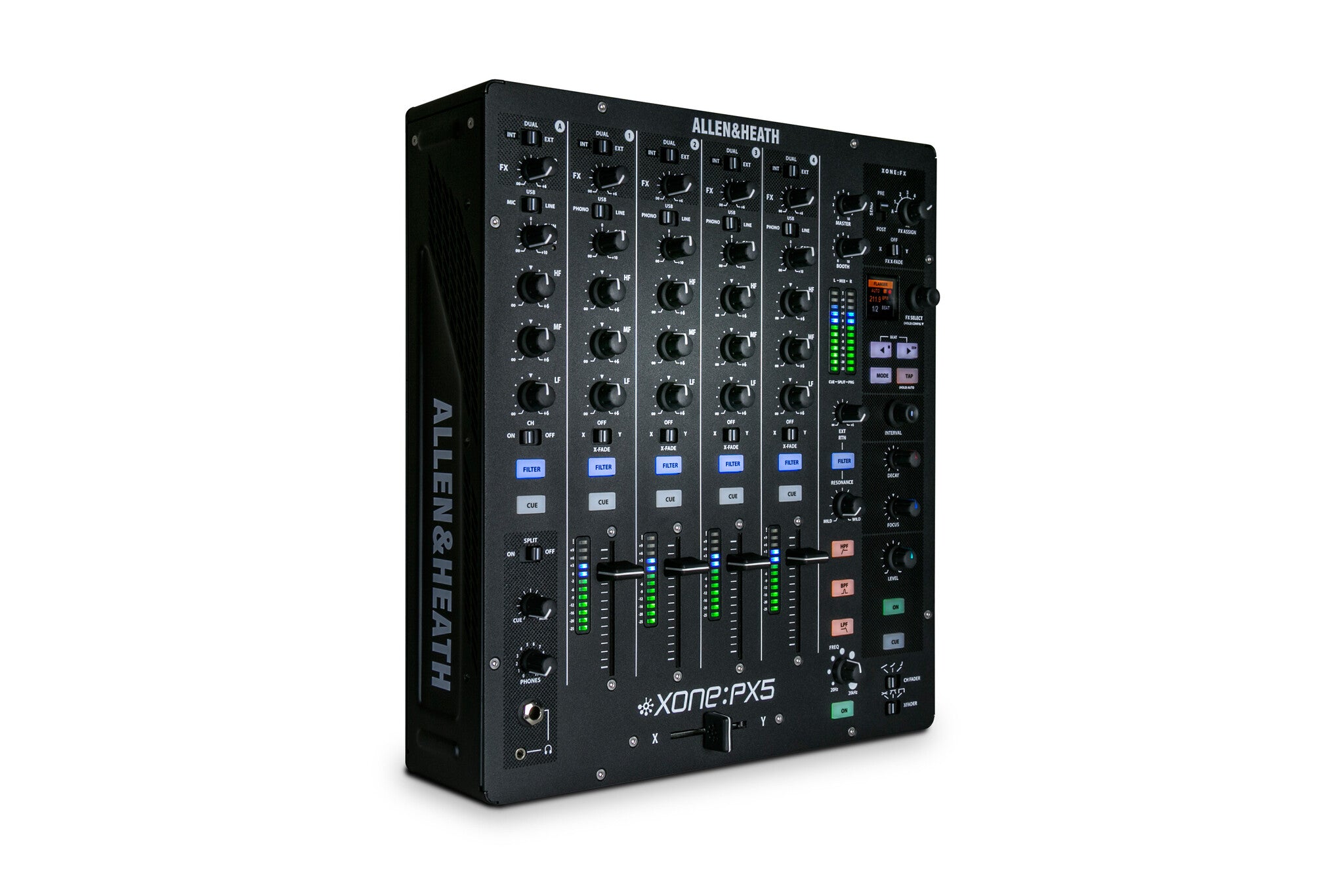

Combining the signature warm analogue Xone sound with class leading digital connectivity, Xone:PX5 breathes life and soul into electronic music performance. The built-in FX technology offers new levels of manipulation with our new Xone:Xcite FX suite of performance-focused delays, reverbs, modulators, flangers and distorters which are all assignable through simple hands-on control for fine-tuning the FX and expressing the DJ’s inner creativity.
Technical Specs:
-
Type Analog
-
Channels 4 + 1
-
EQ 3-band / Total Kill (CH 1-4 + CH A)
-
USB Soundcard 20 Channel (10 in / 10 out)
USB2 / Class Compliant
24bit / 96kHz
1 x MIDI IN
1 x MIDI Out
-

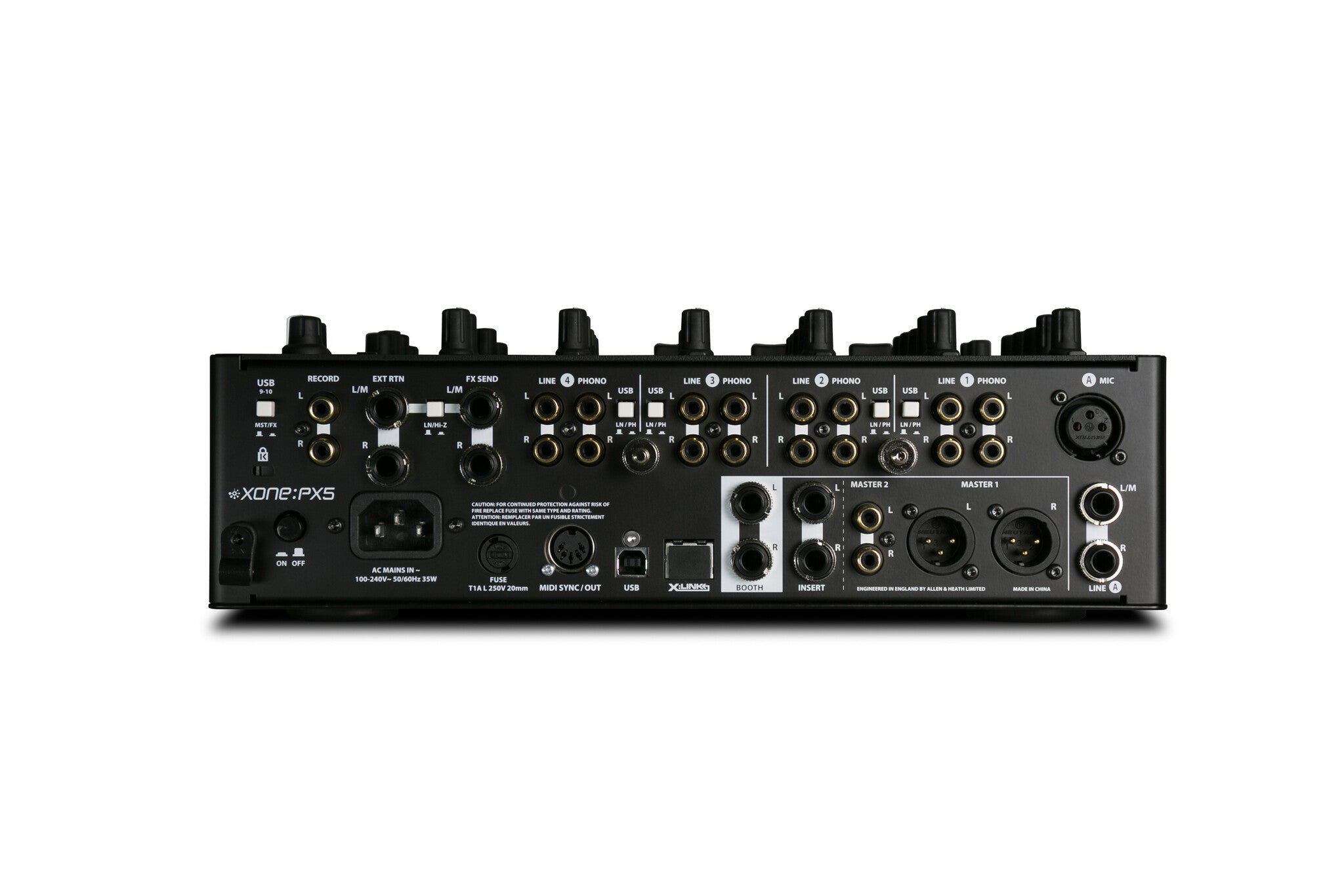

Line Inputs 4 x RCA (CH 1-4)
1 x 1/4″ TRS (CH A) Mono/Stereo
-
Phono Inputs 4 x RCA (CH 1-4)
LN/PH Switch for DVS
-
USB Inputs 5 x USB (CH 1-4 + CH A)
-
Mic Input 1 x XLR
-
Master Output 1 x XLR (Balanced)
-
Master 2 Output 1 x RCA (Un-balanced)
-
Booth Output 1 x 1/4″ TRS
-
Record Output 1 x RCA (Un-balanced)
-
Master Insert 1 x 1/4″ TRS
-
MIDI Sync/Out 1 x 5-Pin DIN
DIN Offset Control
-
Send/Return I/O
1 x 1/4″ TRS Send
1 x 1/4″ TRS Return
1 x LN/Hi-Z Switch
|
-
Internal Xone:FX Yes
-
Hybrid FX Mode Yes (Internal < Dual > External)
-
FX Send 1 x Pre/Post Selectable (CH 1-4 + CH A)
-
Filter
1 x VCF Filter
HPF / BPF / LPF
Adjustable Frequency & Resonance
Assignable CH 1-4 + CH A + External Return
-
X-Link 1 x RJ45
-

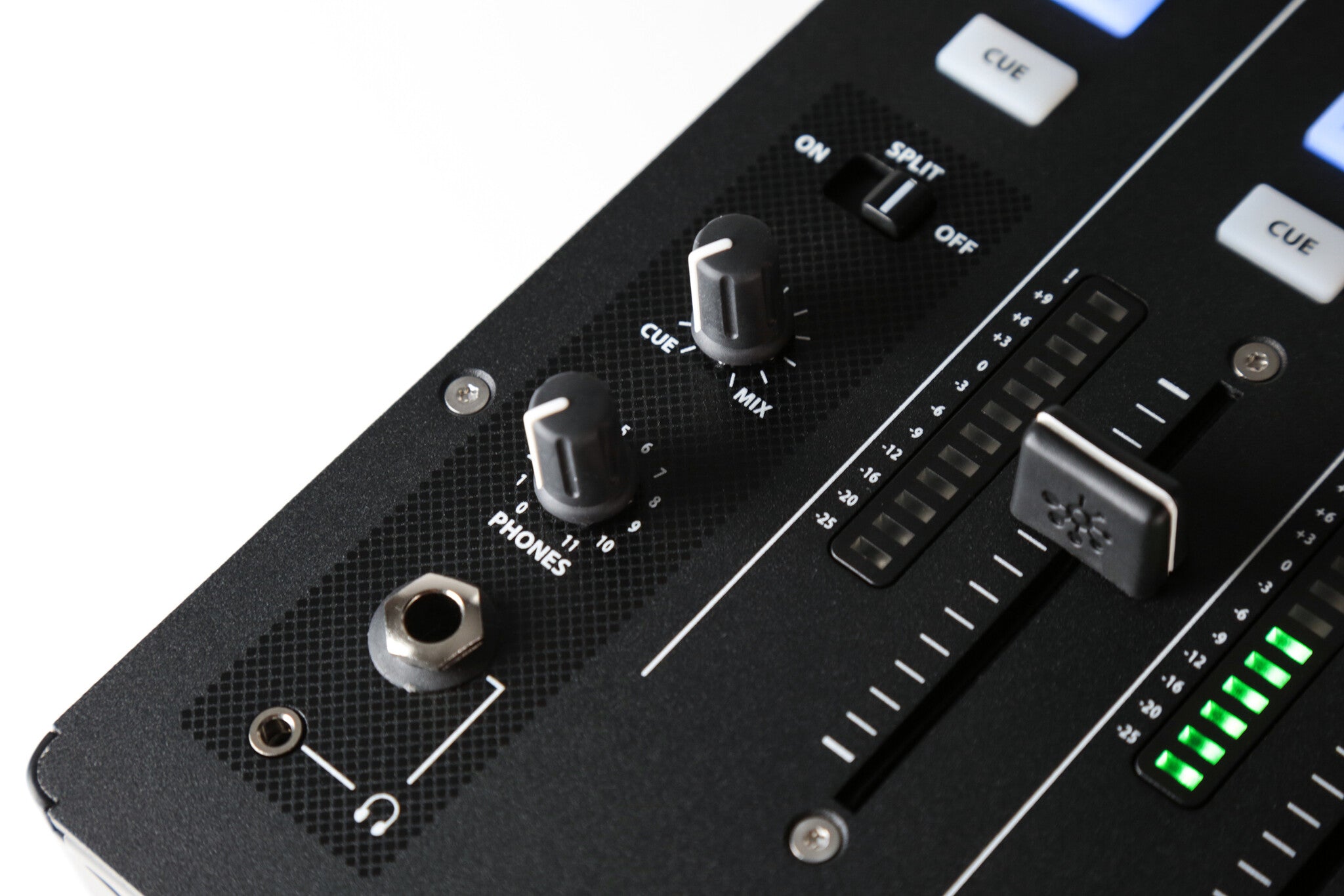

Headphones
1 x 1/4″
1 x 3.5mm
Split Cue Monitoring
-

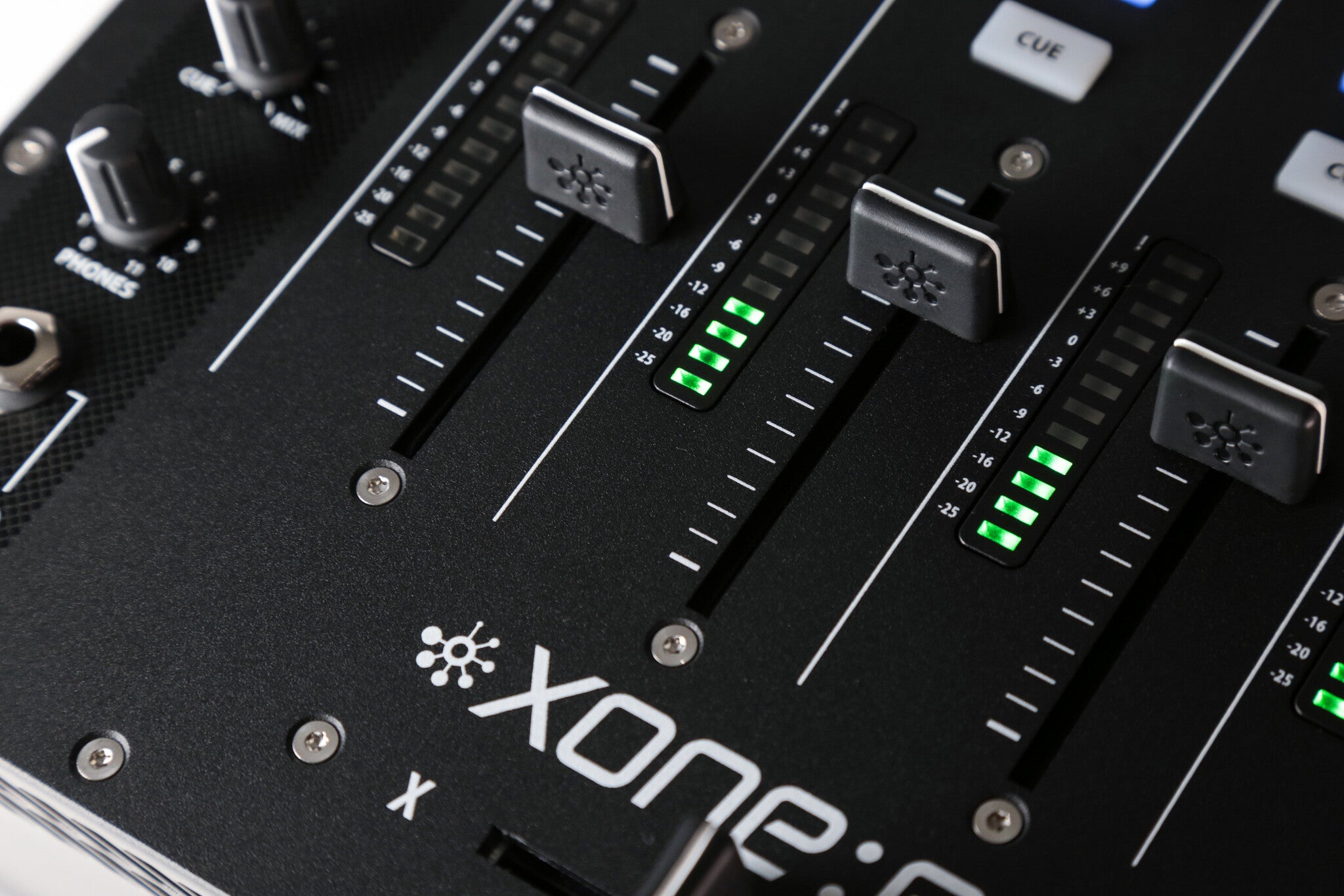

Channel Faders 60mm VCA / Replaceable
-
Chanel Meters 12 Segment LED
-
Channel Fader Curve 3 Types
-
X-Fader 45mm VCA / Replaceable / Innofader Compatible
-
X-Fader Curve Settings 3 Types
-
MIDI Clock Send + Receive
Start / Stop / Pause / Tempo Bend (-/+)
-
MIDI Assignable Yes (MIDI CC / MIDI Notes)
-
BPM Detection Auto / Manual / Tap Tempo
-
Earth Ground Terminals x 2
-
Headroom 20dB
-
AC Mains
100 to 240V
AC 50/60Hz
Consumption 35W max
-
Mains Adaptor 3 pin IEC socket with cable clamp
-
Fuse Rating 250V AC T1AL 20mm
-
Height 4.3″
-
Width 12.6″
-
Depth 14.8″
-
Weight 11.5 lbs.
|
