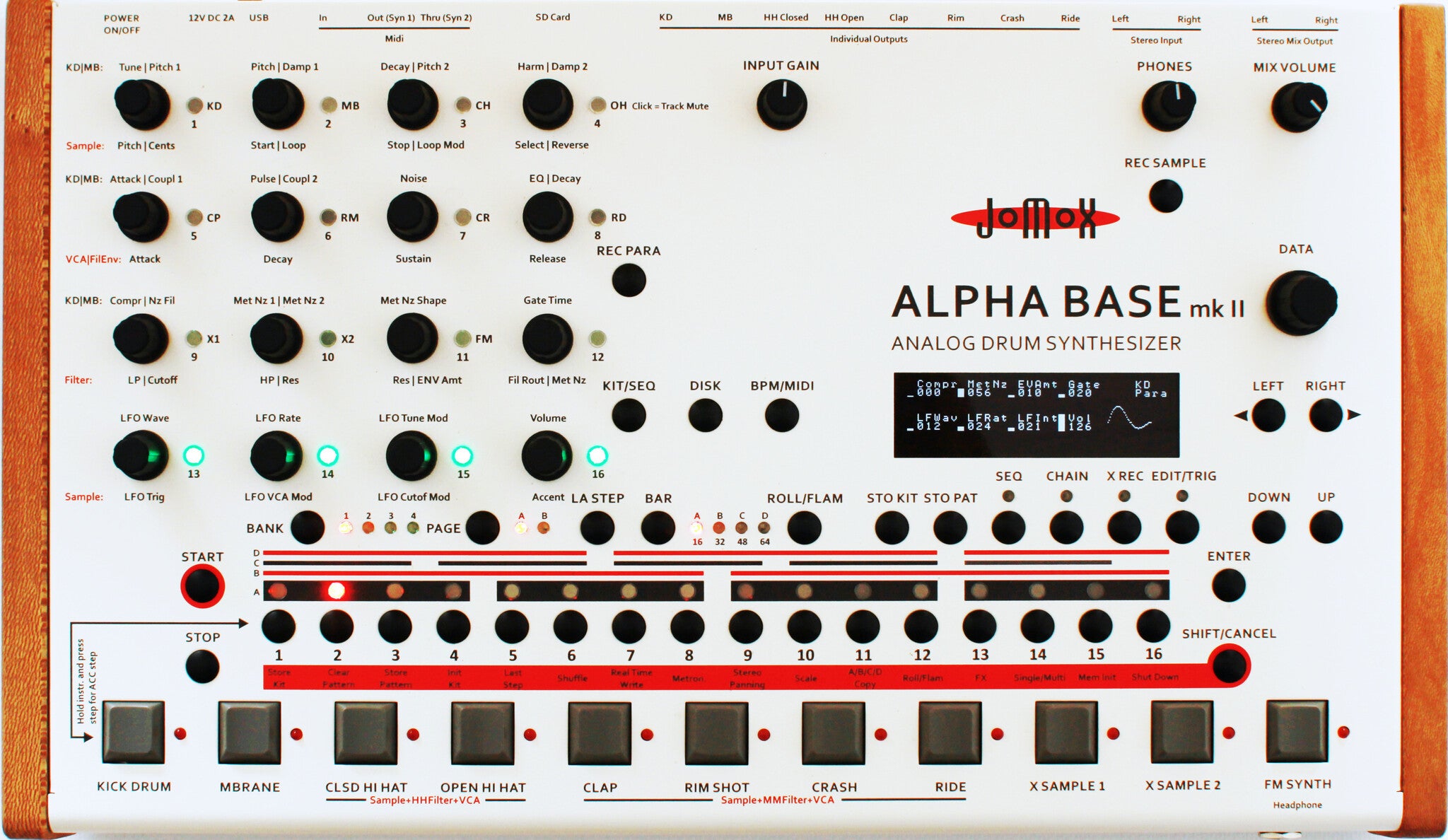

Analogue Drum Synthesiser

• 11 Instruments: kick drum, membrane, closed hi-hat, open hi-hat, clap, rim shot, crash, ride, x sample 1, x sample 2, FM synth
• Analogue Jomox Kick Drum
• Analogue Jomox membrane voice with 2 linkable F-OSC for complex analogue snare, percussion and tom sounds
• 2 Sample-based instruments (closed hi-hat, open hi-hat) with additional metal noise as a signal source and analogue VCA, ADSR envelope and filter
• 4 Sample-based instruments (clap, rim shot, crash, ride) with analogue VCA, ADSR envelope, multimode filter (LP, HP, BP) with resonance and additional metal noise as a signal source
• 2 Sample-based instruments (X Sample 1, X Sample 2) with external sampling input
• FM synth with 4 operators and a maximum of 6 voices for percussive sounds, bass, chords and sequences
• Stereo VCA panning for all instruments
• Effects: Delay and Reverb, one LFO per instrument (2 LFOs on MBrane) with 64 waveforms
• Storage locations for 500 samples (16 bit/48 kHz)
• Step sequencer with up to 64 steps per pattern
• Parameter locks for individual parameter values per step
• Further functions such as Shuffle, Roll, Flam, Pattern Chain and Copy/Paste
• OLED display
• 18 Encoders and RGB LEDs for convenient programming
• SD card slot for loading samples
• USB-B port for USB-MIDI
• MIDI In, Out, Thru (5-pin DIN)
• 8 Instrument outputs and stereo output: 10x 6.3 mm TRS jack
• Stereo input for line and instrument signals: 2 x 6.3 mm jack
• Sturdy metal housing with wooden side panels
• Dimensions (W x D x H): 410 x 240 x 80 mm
• Weight: 3.3 kg
• Includes external power supply (12 V DC, 2 A)
