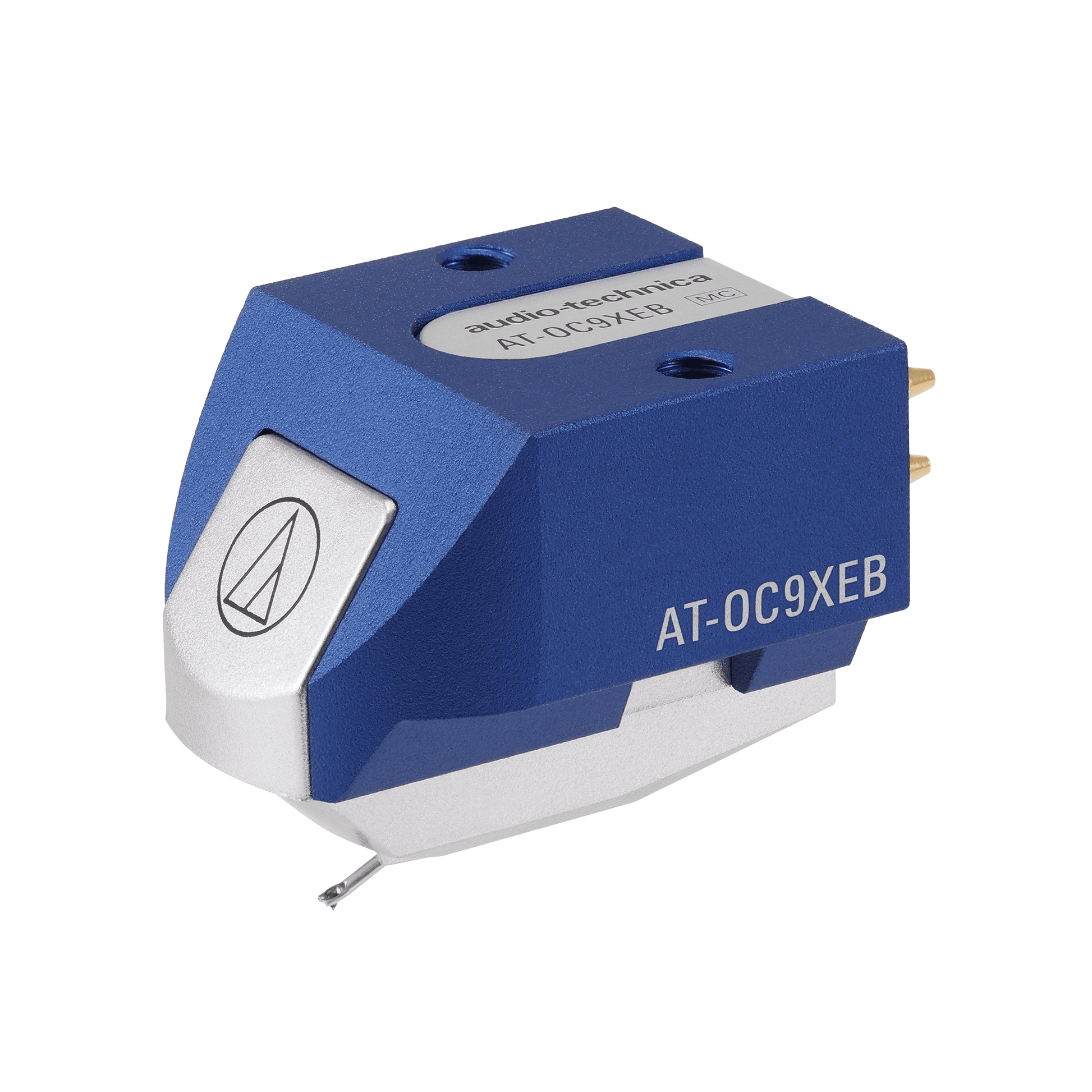

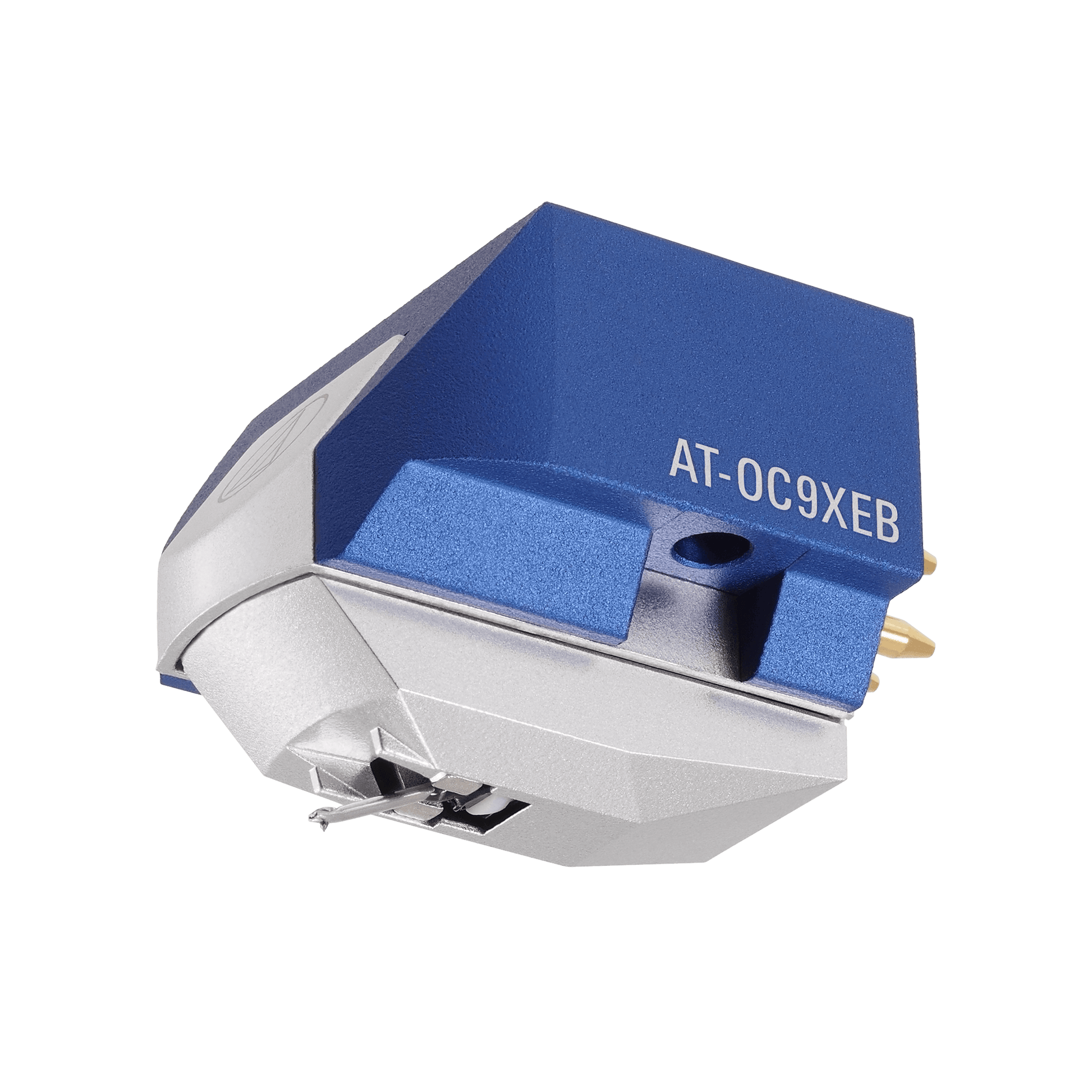

Audio-Technica AT-OC9XEB: Dual Moving Coil Stereo Cartridge with Bonded Elliptical Stylus

The Audio-Technica AT-OC9XEB is an entry-level moving coil cartridge designed to deliver outstanding channel separation and audio quality. It features a bonded elliptical stylus mounted on an aluminum cantilever, ensuring accurate tracking and minimal distortion. The cartridge's rigid aluminum body reduces resonance, while the neodymium magnet and pure iron yoke increase magnetic energy for enhanced performance.

Key Features:

• Bonded Elliptical Stylus: Provides precise tracking and reduces distortion.
• Aluminum Cantilever: Ensures accurate stylus movement.
• Rigid Aluminum Body: Minimizes unwanted vibrations for superior audio reproduction.
• Neodymium Magnet and Pure Iron Yoke: Increase magnetic energy for improved sound quality.
• Pure Copper by Ohno Continuous Casting (PCOCC) Coils: Ensure pure audio transmission.

Technical Specifications:

• Frequency Response: 20 – 30,000 Hz
• Output Voltage: 0.35 mV (1 kHz, 5 cm/sec.)
• Channel Separation: 25 dB (1 kHz)
• Vertical Tracking Force: 1.8 – 2.2 g (2.0 g standard)
• Impedance: 12 ohms
• Weight: 7.6 g

The AT-OC9XEB is ideal for listeners seeking an affordable introduction to moving coil cartridges with excellent performance.
