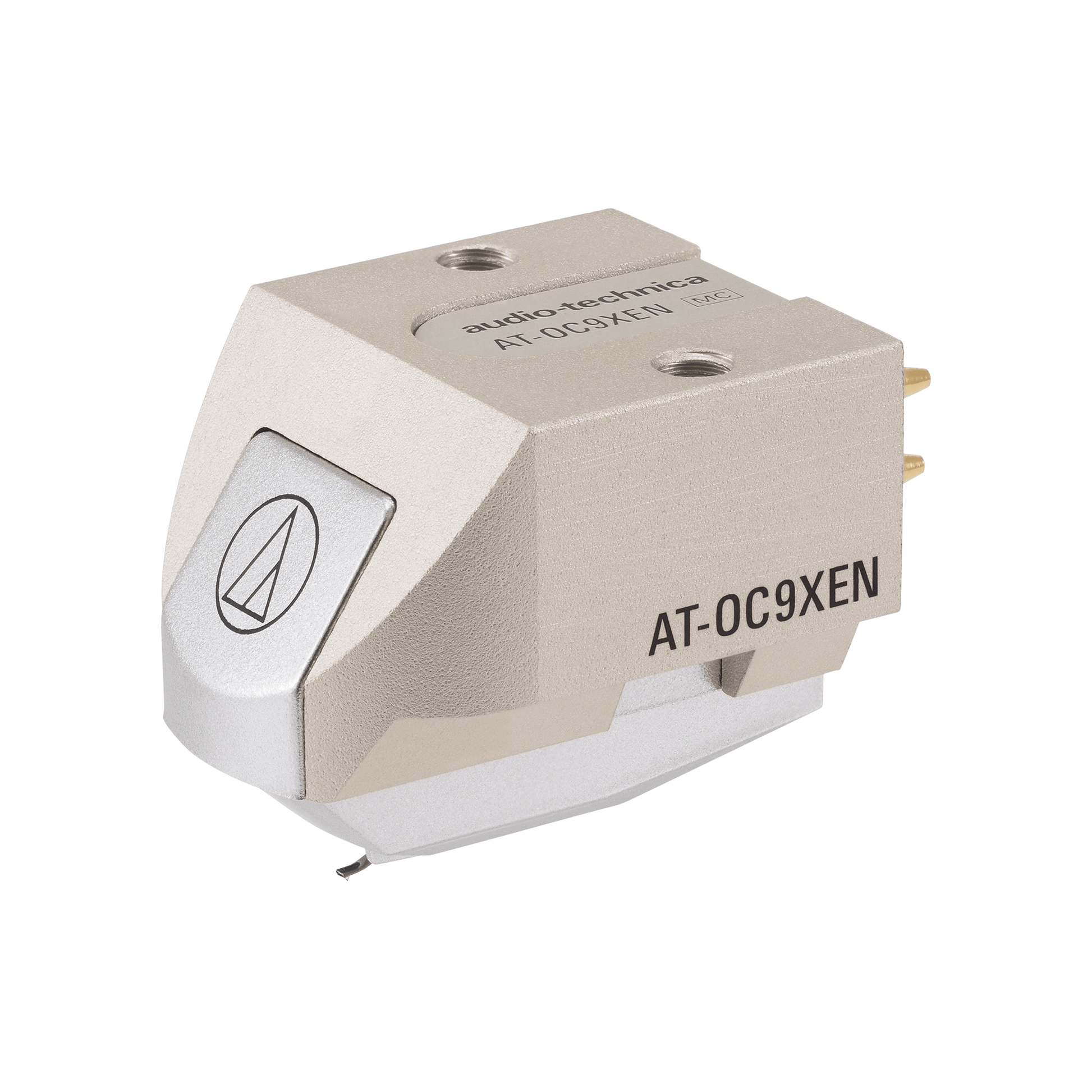

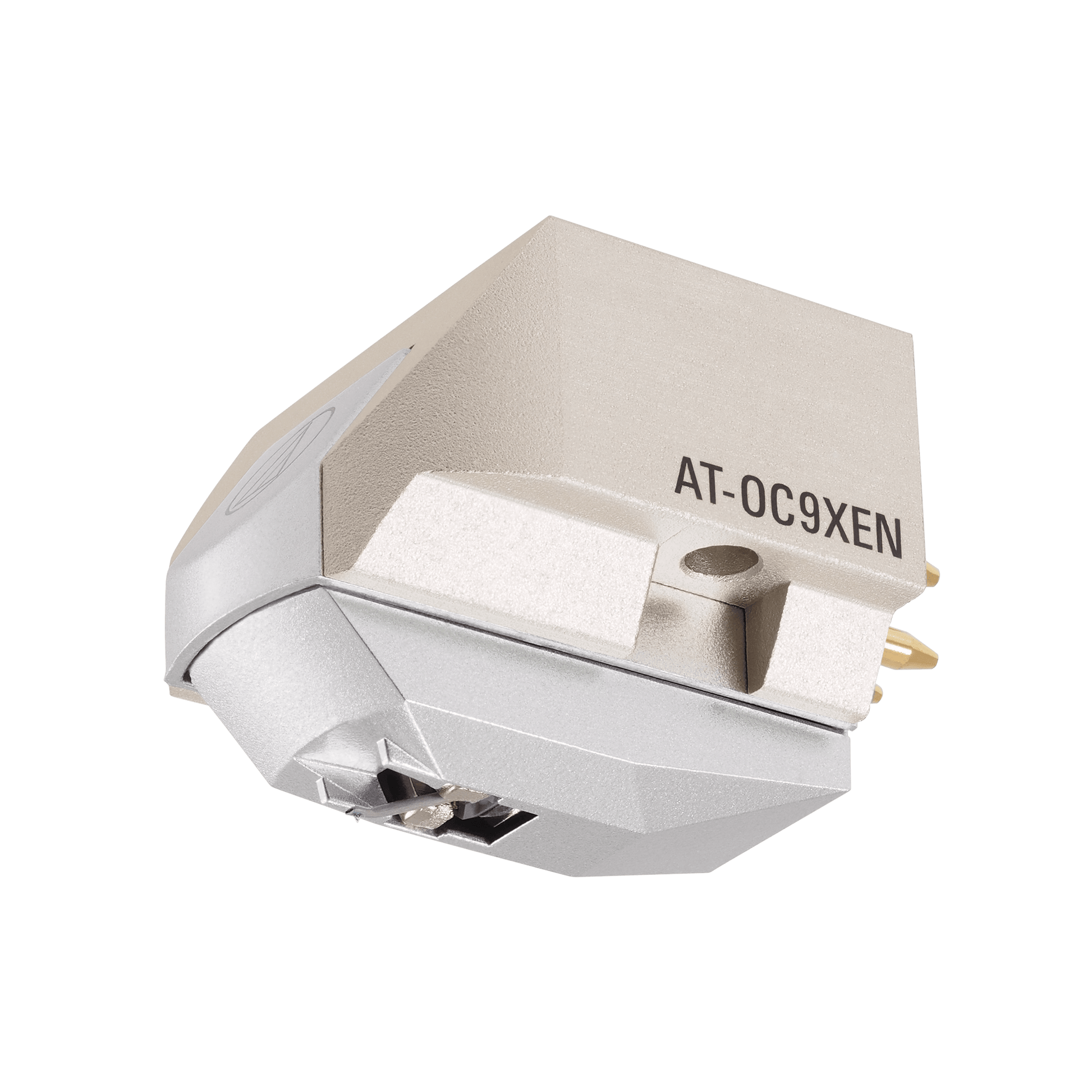

Audio-Technica AT-OC9XEN: Dual Moving Coil Stereo Cartridge with Nude Elliptical Stylus

The Audio-Technica AT-OC9XEN is a step-up model in the OC9X series, featuring a nude elliptical stylus mounted on an aluminum cantilever. This design offers improved frequency response and reduced distortion compared to bonded stylus models. The cartridge's rigid aluminum body reduces resonance, while the neodymium magnet and pure iron yoke increase magnetic energy for enhanced performance.

Key Features:

• Nude Elliptical Stylus: Provides superior tracking and detailed audio reproduction.
• Aluminum Cantilever: Ensures accurate stylus movement.
• Rigid Aluminum Body: Minimizes unwanted vibrations for superior audio reproduction.
• Neodymium Magnet and Pure Iron Yoke: Increase magnetic energy for improved sound quality.
• Pure Copper by Ohno Continuous Casting (PCOCC) Coils: Ensure pure audio transmission.

Technical Specifications:

• Frequency Response: 20 – 30,000 Hz
• Output Voltage: 0.35 mV (1 kHz, 5 cm/sec.)
• Channel Separation: 25 dB (1 kHz)
• Vertical Tracking Force: 1.8 – 2.2 g (2.0 g standard)
• Impedance: 12 ohms
• Weight: 7.6 g

The AT-OC9XEN is suitable for listeners seeking enhanced audio fidelity and precise tracking capabilities.

Read more on Audio-Technica’s official website.
